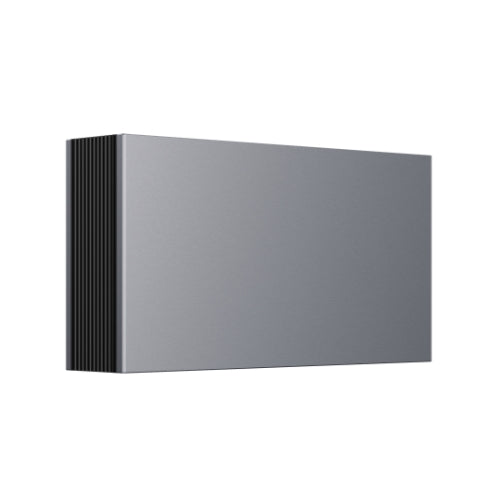

Anker Solix X1-B5-H 5kWh Battery Module
Pricing for this product is available on request. Contact our team and we will quote for your requirements.
Contact us for pricingProduct Description
Anker Solix X1 5kWh High Voltage LFP Battery Module
Modular Solar Energy Storage Battery Module UK
The Anker Solix X1 5kWh high-voltage LFP battery module (ANK-SOLIX-X1-B5-H / X1-B5-H) is the fundamental energy storage component for the Anker Solix X1 hybrid energy storage system. Featuring 100% usable capacity (5.0kWh) with safe, long-life Lithium Iron Phosphate (LiFePO4) chemistry, each module integrates an independent battery energy optimizer. This modular high-voltage battery unit maintains an ultra-slim 150mm profile and includes internal Thermal Boosting Technology to ensure optimal charge/discharge performance even in sub-zero winter temperatures (-20°C).
Why choose the Anker Solix X1 5kWh Battery Module?
-
100% Usable Energy Storage: Delivers 5.0kWh nominal/usable storage capacity per module with 100% Depth of Discharge (DoD).
-
Integrated Battery Energy Optimizer: Every module features an internal energy optimizer for independent charge/discharge management, preventing weak-battery bottlenecks and allowing mixing of new and old modules.
-
Automatic Fault Isolation: Individual module-level energy optimizers automatically isolate any compromised battery module, keeping the rest of the storage system running without interruption.
-
Thermal Boosting Technology (-20°C Performance): Smart internal heating activates at 0°C to guarantee reliable charging and full battery output down to -20°C in unheated garage or outdoor installations.
-
Modular & Scalable Storage: Connect 1 to 6 battery modules per single-phase Anker Solix X1 inverter (5kWh to 30kWh system capacity).
-
Ultra-Slim 15cm Profile: Compact 150mm depth for space-saving wall- or floor-mounted domestic installations.
-
IP66 & C5-M Weatherproof Protection: Die-cast IP66 water/dustproof casing with C5-M marine-grade anti-corrosion protection, backed by a 10-year warranty.
-
Dedicated UK Support & National RMA Coverage: Direct access to Get Green Energy's UK-based technical support team with streamlined UK warranty backup and national RMA exchange services.
-
Fast UK Delivery: Dispatched directly from Get Green Energy.
Technical Specifications & Dimensions
Anker Solix X1 5kWh Battery Module (ANK-SOLIX-X1-B5-H / X1-B5-H)
| Feature | Specification |
| MPN / Part Number | X1-B5-H / ANK-SOLIX-X1-B5-H |
| Nominal Energy Capacity | 5.0 kWh (100% DoD Usable Energy) |
| Battery Cell Chemistry | Lithium Iron Phosphate (LiFePO4 / LFP) |
| Operating DC Voltage Range | 350 V to 550 V DC |
| Max. Charge / Discharge Power | 3,000 W (3.0 kW per module) |
| Max. Charge / Discharge Current | 7.6 A DC |
| Module Thermal Management | Smart Thermal Boosting Heating Element (-20°C support) |
| Module Safety Feature | Integrated 0V Shock-Free Isolation / Auto-Isolation |
| Ingress Protection Rating | IP66 (Outdoor / Indoor rated) |
| Corrosion Resistance Rating | C5-M Marine Grade |
| Operating Temperature Range | -20°C to +55°C |
| Scalability per Inverter | Up to 6 Modules in series/stack (5kWh to 30kWh) |
| Dimensions (W × H × D) | 670 mm × 360 mm × 150 mm |
| Module Weight | 51.0 kg |
| Manufacturer Warranty | 10 Years |
Need Help Sizing or Expanding Your Energy Storage System?
If you have questions about matching battery modules to your Anker Solix X1 inverter or selecting mounting accessories, call our team on 01684 642370 and our technical experts will help you configure the perfect system.
