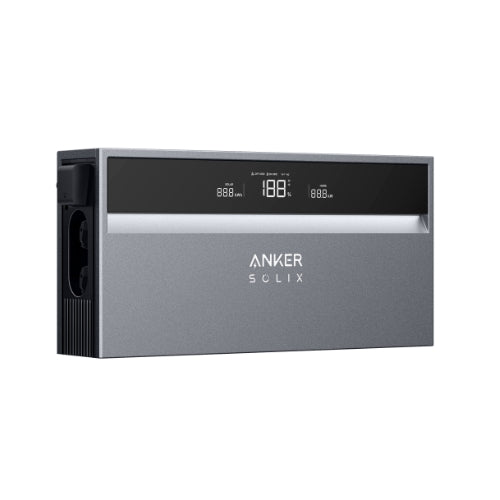

Anker SOLIX X1-H3.68K-S Power Module

Anker SOLIX X1-H3.68K-S Power Module

In stock
Contact us for pricing

Pricing for this product is available on request. Contact our team and we will quote for your requirements.

Contact us for pricing

Product Description

Anker Solix X1 3.68kW Single Phase Hybrid Inverter

Single Phase Hybrid Solar Inverter UK

The Anker Solix X1 3.68kW single-phase hybrid inverter (ANK-X1-H3.68K-S) sets a new benchmark for residential energy storage with its ultra-slim 150mm profile and high-performance modular architecture. Engineered specifically for UK G98 notification-only grid compliance, it supports up to 7,360Wp maximum PV input power across 2 independent MPPT trackers. Pair it with Anker Solix X1 LFP battery modules (scalable from 5kWh to 30kWh) to unlock sub-10ms UPS emergency backup, integrated thermal boost management, and dynamic UK tariff optimization.

Why choose the Anker Solix X1 3.68kW Hybrid Inverter?

  • Ultra-Slim 15cm All-In-One Form Factor: Features an ultra-thin 150mm depth for a sleek, space-saving wall or floor installation in residential spaces.

  • G98 Compliant Grid Connection: Capped at 16A (3.68kW) continuous grid output for simple, notification-only UK grid connection without prior DNO approval.

  • 200% Solar DC Oversizing: Supports up to 7,360Wp PV input power across 2 MPPT trackers with a wide voltage range (80V–550V) for exceptional energy harvesting.

  • Instant UPS Emergency Backup: Rapid sub-10ms switching time keeps critical household loads online seamlessly during grid blackouts.

  • Modular LFP Battery Scalability: Easily scales from 1 to 6 Anker Solix X1 5kWh high-voltage battery modules (5kWh to 30kWh) per power unit.

  • Extreme Cold & Heat Climate Resilience: Built-in battery thermal management ensures full charging and discharging capability even in extreme temperatures (-20°C to 55°C).

  • IP66 & C5-M Rated Outdoor Enclosure: Heavy-duty die-cast body with IP66 ingress protection and C5-M anti-corrosion rating, supported by a 10-year manufacturer warranty.

  • Dedicated UK Support & National RMA Coverage: Direct access to Get Green Energy's UK-based technical support team with streamlined UK warranty backup and national RMA exchange services.

  • Fast UK Delivery: Dispatched directly from Get Green Energy.

Technical Specifications & Dimensions

Anker Solix X1 3.68kW Hybrid Inverter (ANK-X1-H3.68K-S)

Feature Specification
Max. PV Input Power 7,360 Wp (200% DC Oversizing)
Max. PV Input Voltage 600 V DC
MPPT Voltage Range / Startup 80 V to 550 V DC / 75 V DC
MPPT Trackers / Strings per MPPT 2 MPPTs / 1 String per MPPT
Max. Input Current per MPPT 16 A / 16 A (Short-circuit current: 20 A / 20 A)
Nominal AC Output Power 3,680 W / 3,680 VA
Max. Output Apparent Power 4,000 VA
Max. AC Grid Output Current 16.0 A (G98 Limit)
Nominal AC Voltage / Frequency 220 V / 230 V / 240 V / 50 Hz / 60 Hz
Battery Compatibility / Architecture Anker Solix X1 LFP High-Voltage Battery Modules (350V–550V)
Battery Capacity Range 5 kWh to 30 kWh per Power Module (1–6 modules)
UPS Emergency Backup Switch Time < 10 ms
Peak Off-Grid Apparent Power 7,200 VA (10 seconds)
Max. Efficiency / EU Efficiency 97.4% / 96.5%
Protection Degree / Corrosion Rating IP66 / C5-M Rated (Outdoor rated)
Operating Temperature Range -25°C to +60°C
Noise Level ≤ 30 dB (at 1m distance)
Communication / Connectivity Wi-Fi / Bluetooth / Ethernet / 4G (Optional) / CAN / RS485
Inverter Dimensions (W × H × D) 670 mm × 335 mm × 150 mm
Inverter Weight (Power Module) 19.0 kg

Need Help Sizing or Installing Your Energy Storage System?

If you have questions about battery expansion modules, PV string layout, or G98 grid compliance, call our team on 01684 642370 and our technical experts will help you configure the perfect setup.
