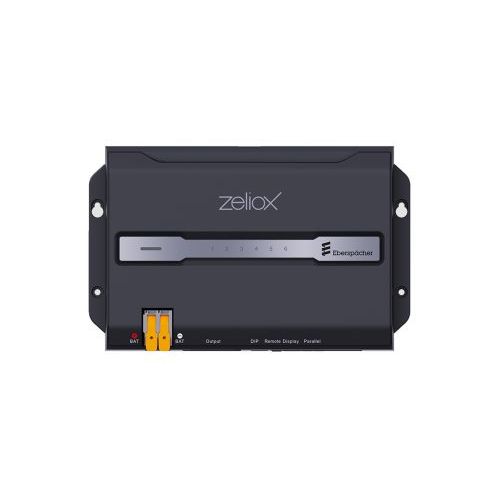

Eberspacher Zeliox Control Module ZCM6, 6-Channel 12V/24V Smart DC Power Distribution Hub – 5-Year Warranty

Eberspacher Zeliox Control Module ZCM6, 6-Channel 12V/24V Smart DC Power Distribution Hub – 5-Year Warranty

£239.00 GBP
£239.00 GBP
Sale Sold out
View full details

The Eberspacher Zeliox Control Module ZCM6 is a stand-alone, smart power distribution system engineered to streamline vehicle electrical layouts. Instead of dealing with messy physical fuse blocks and tedious dashboard switch modifications, this module connects directly to your main vehicle battery and acts as a central digital brain to wirelessly manage up to six individual DC electrical accessories.

It is ideal for professional fleet operators, tradespeople, emergency response vehicles, and bespoke campervan converters who need an efficient way to regulate interior lighting, work lamps, ventilation systems, cooling boxes, and auxiliary heating.

Key Features

  • 6 Programmable Digital Channels: Houses six independently configurable output lines, giving you complete granular control over individual DC accessories without running physical switch lines through the cabin frame.

  • Granular App-Based Configurations: Pairs via Bluetooth with a companion smartphone app (iOS and Android) to let you digitally set the maximum amperage, permanent power states, and custom dimming profiles for each line.

  • Integrated Electronic Safety Protection: Protects your hardware with automated digital fuse configurations. It features native over-voltage, under-voltage, overload, and short-circuit safeguards to shut down individual channels before damage occurs.

  • Smart Deep Discharge Protection: Constantly monitors the health of the primary vehicle battery, allowing you to configure custom time-delayed shut-offs on a per-channel basis to protect your engine from failing to start.

  • Flexible Wireless & RF Control: Supports switching operations through wireless RF control panels or via smartphone, removing the need to cut holes in your vehicle's dashboard.

  • Highly Scalable Architecture: Designed to scale upward alongside complex fleet setups; up to four separate ZCM6 modules can be synchronized together to manage up to 24 separate digital channels.

Technical Specifications

Specification Details
Input Voltage Source 12V / 24V Vehicle Starter or Leisure Battery
Rated Input Voltage Range 12V – 16V / 21V – 30V DC
Total Max Current Capacity 76A (Input and Output)
Output Channels 6 Fully Programmable Output Lines
Standby Power Consumption Less than or equal to 5 mA
Wireless Interfaces RF, Bluetooth, CAN, RS485
Ingress Protection Rating IP20
System Certifications CE, E-Mark (Automotive Safety Certified)
Display Support Native integration with CMD4 Touchscreen display
Dimensions (L×W×H) 253 × 161 × 48 mm
Net Weight 0.87 kg (1.9 lbs)

Warranty & Protection

  • Official UK Guarantee: Backed by an industry-standard 5-year manufacturer warranty covering the electronic distribution board, signal receivers, and structural manufacturing defects.

What’s in the Box?

  1. Eberspacher Zeliox Control Module ZCM6 Hub

  2. Integrated Wireless RF Signal Receiver Unit

  3. Heavy-Duty Main Battery Power Connection Pins

  4. Quick Start Hardware Installation Guide
