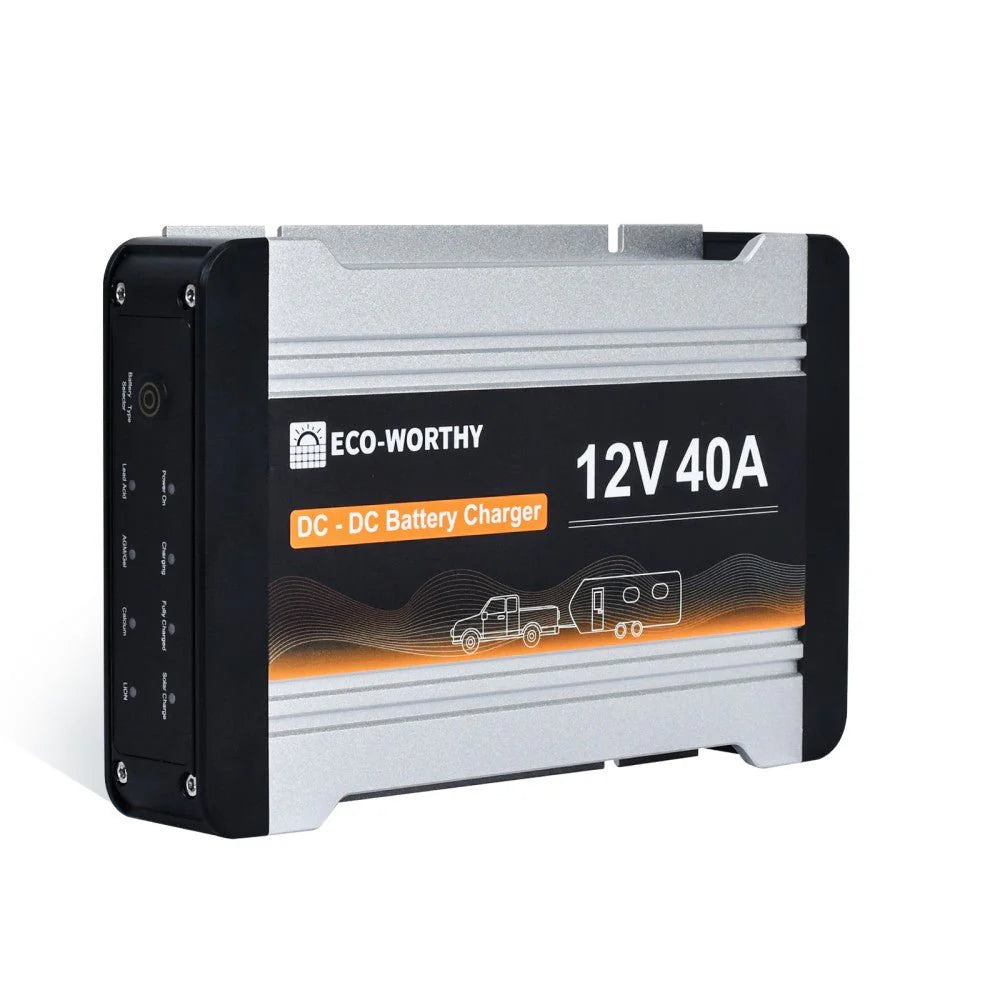

ECO-WORTHY 40A DC-to-DC Charger with 550W MPPT Solar Controller, 12V Dual Battery Charger for RV & Marine

ECO-WORTHY 40A DC-to-DC Charger with 550W MPPT Solar Controller, 12V Dual Battery Charger for RV & Marine

Regular price £135.00 GBP
Regular price Sale price £135.00 GBP
Sale Sold out
View full details

🚚 Free Shipping

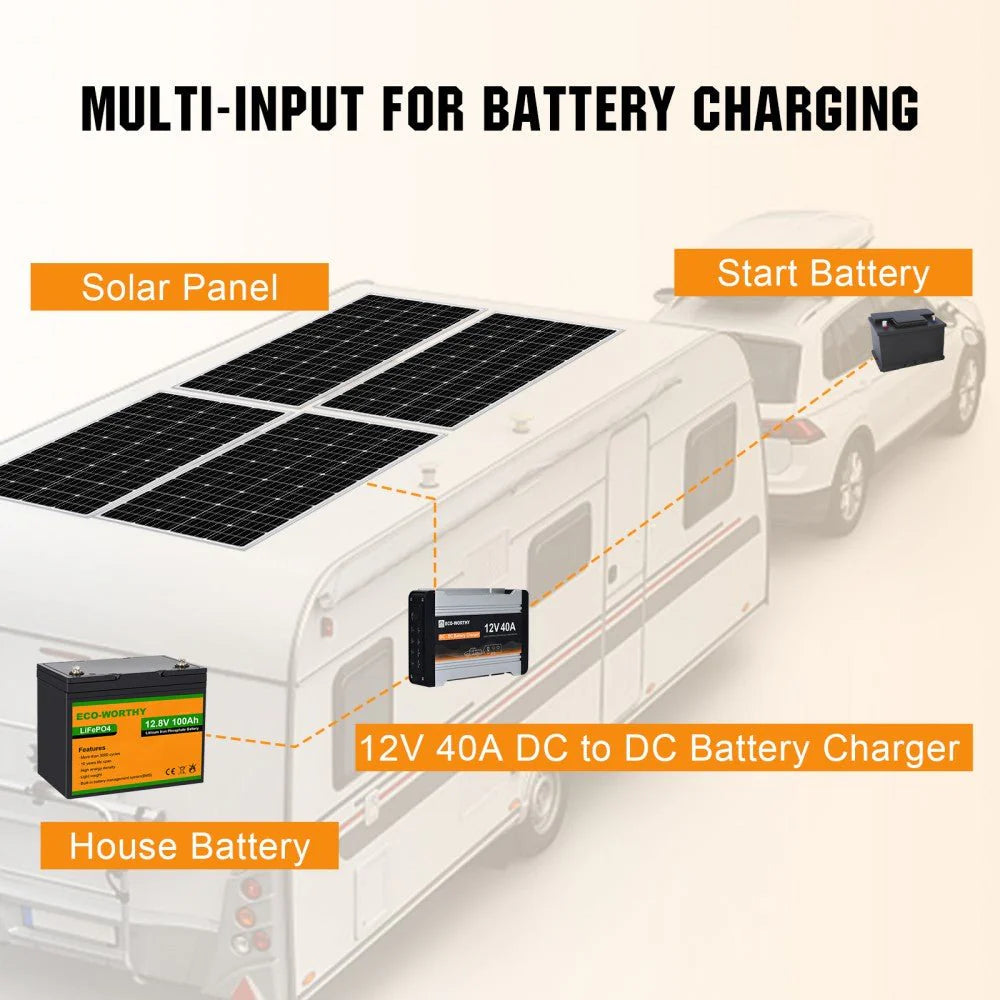

The ECO-WORTHY 40A DC-to-DC Charger with MPPT is an all-in-one charging solution designed for RVs, campervans, and boats. This dual-input charger allows you to charge your auxiliary (leisure) battery from both the vehicle's alternator while driving and from solar panels when parked.

By combining a DC-DC charger and an MPPT solar controller into a single unit, it simplifies your wiring and ensures your battery bank—whether Lithium or Lead-Acid—is always maintained at its optimal charge level.


Key Features

  • Dual Input Charging: Simultaneously or independently utilizes power from the vehicle alternator and solar panels to charge your house battery.

  • Built-in MPPT Solar Controller: Features Maximum Power Point Tracking with up to 99% efficiency, allowing for up to 550W of solar input.

  • Multi-Stage Charging: Employs a sophisticated charging algorithm (Bulk, Boost, Float) to maximize battery life and ensure a 100% state of charge.

  • Broad Battery Compatibility: Pre-configured profiles for LiFePO4 (Lithium), AGM, Gel, Flooded, and Sealed Lead-Acid batteries.

  • Smart Alternator Compatible: Designed to work seamlessly with modern Euro 6 smart alternators, ensuring stable voltage regardless of the vehicle's engine management.

  • Comprehensive Protection: Integrated safety features protect against over-voltage, over-temperature, reverse polarity, and solar back-charging.


Technical Specifications

Specification Details
Max. Charge Current 40A
System Voltage 12V DC
Max. Solar Input Power 550W
Max. Solar Input Voltage (Voc) 50V
Alternator Input Voltage 12.5V – 16V DC
Charging Mode DC-to-DC & MPPT Solar
Idle Power Consumption < 20mA
Operating Temperature -35°C to +65°C
Weight Approx. 1.3 kg
Dimensions 221 × 155 × 52 mm



USER MANUAL


Warranty & Protection

  • Eco-Worthy Warranty: This product includes a 1-year Eco-Worthy warranty covering technical defects and manufacturing performance issues.


What’s in the Box?

  1. ECO-WORTHY 40A DC-to-DC Charger with MPPT

  2. External Temperature Sensor

  3. IGN Signal Wire (for smart alternator connection)

  4. User Manual
