Product Description

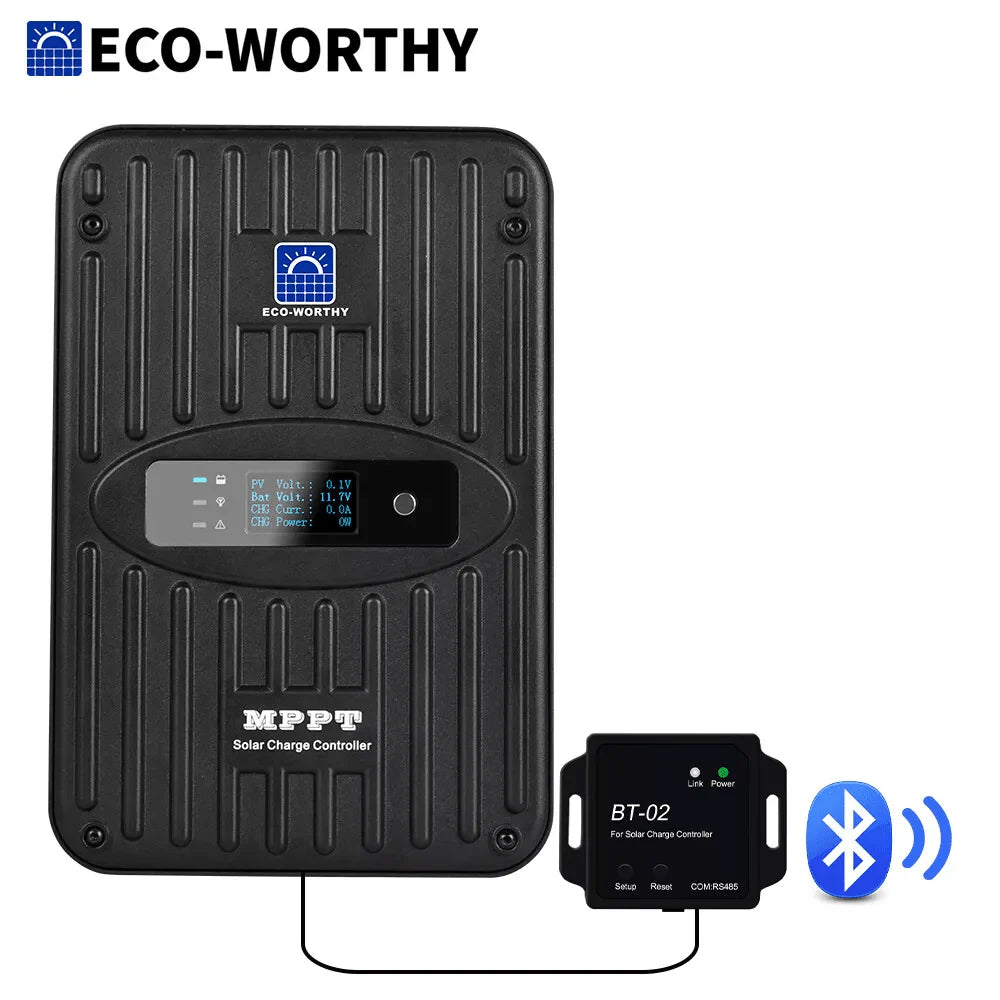

The ECO-WORTHY 40A MPPT Solar Charge Controller is a high-efficiency power management unit designed for 12V and 24V solar systems. Utilizing Maximum Power Point Tracking (MPPT) technology, it provides up to 99% tracking efficiency, ensuring you extract the maximum possible energy from your solar panels even in low-light or cloudy conditions.

This bundle includes a Bluetooth Module, allowing for wireless remote monitoring and parameter adjustment via a smartphone app. It is a versatile choice for RVs, cabins, and off-grid setups, supporting a wide range of battery chemistries including Lithium (LiFePO4) and traditional Lead-Acid.

Key Features

  • High-Efficiency MPPT Technology: Delivers up to 99% tracking efficiency and 98% peak conversion efficiency, providing roughly 40% more power than traditional PWM controllers.

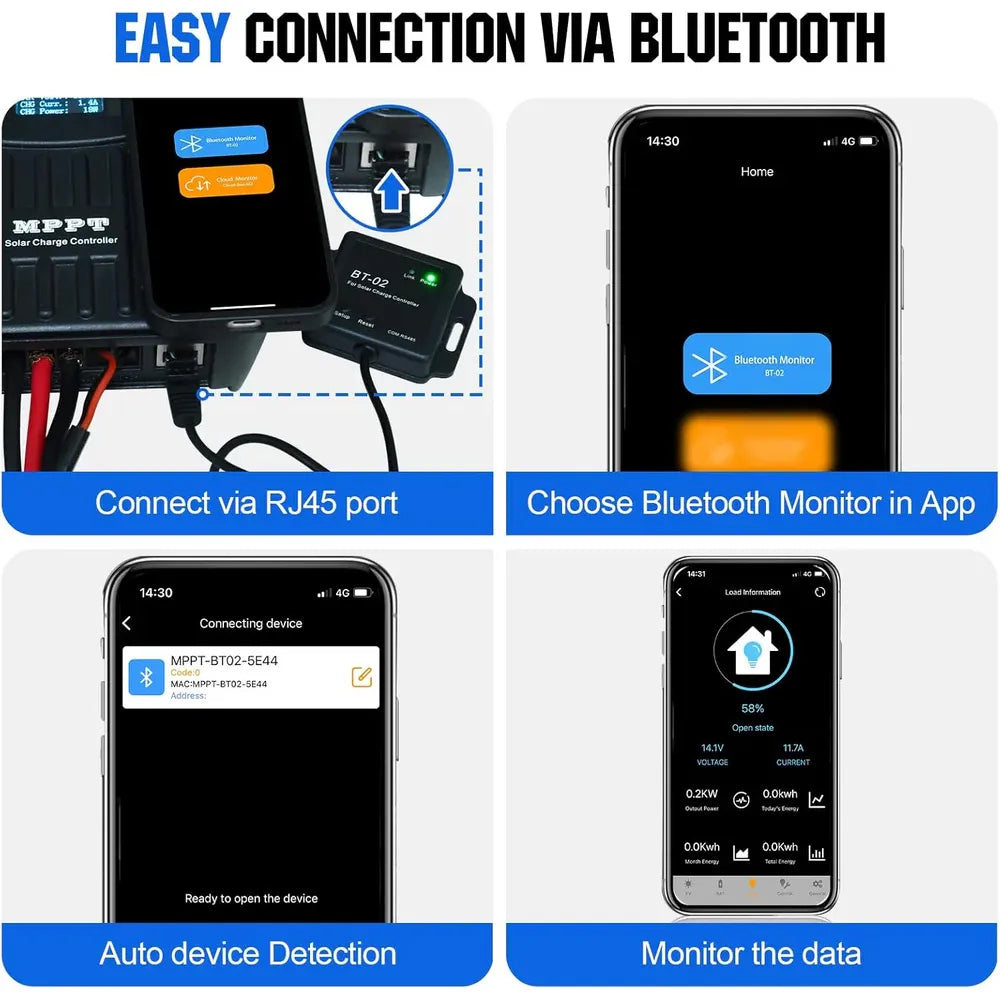

  • Smart Bluetooth Monitoring: Includes a dedicated Bluetooth 5.0 module for real-time tracking of solar generation, battery status, and load consumption from up to 82ft away via the ECO-WORTHY app.

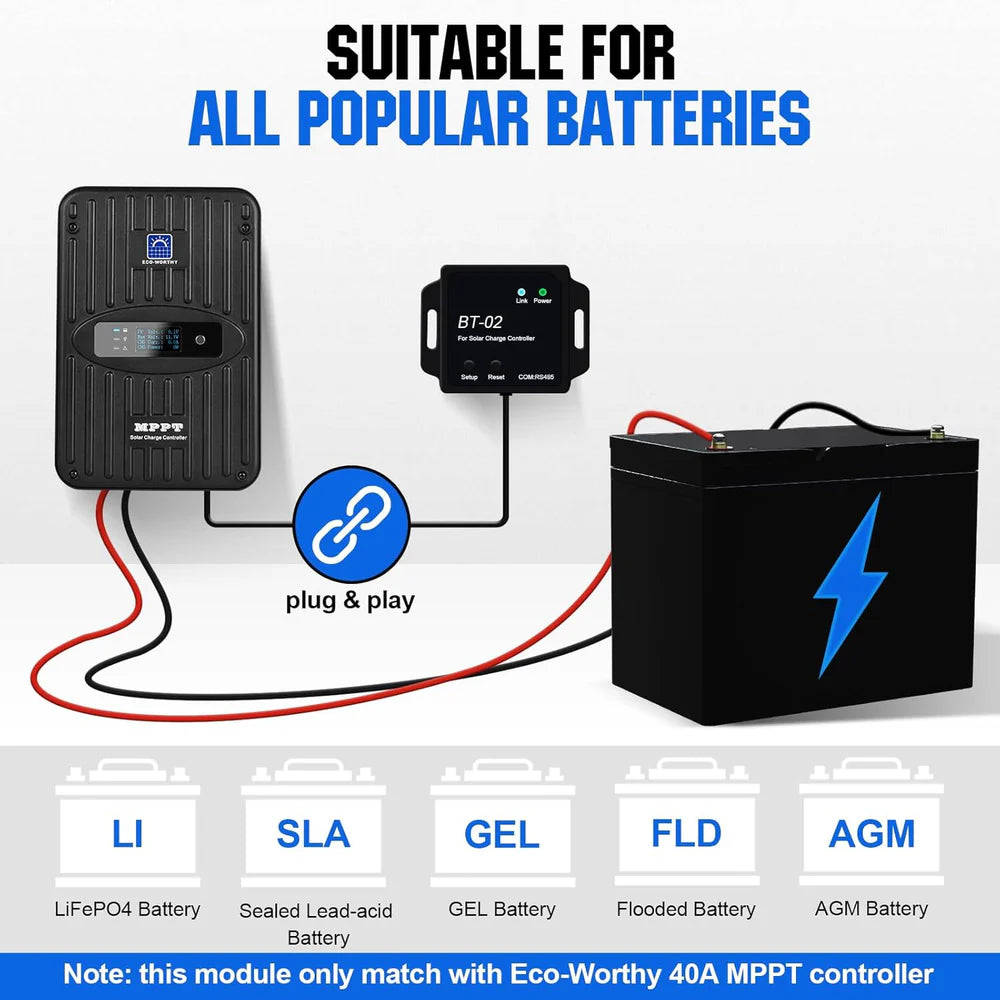

  • Multi-Battery Compatibility: Pre-set to work with LiFePO4 (Lithium), AGM, Sealed, Gel, and Flooded batteries, with customizable settings for specific charging profiles.

  • Intelligent Protection Suite: Built-in safeguards against reverse polarity, short-circuits, high temperatures, over-current, and over/under-voltage to ensure long-term system safety.

  • Automatic System Detection: Automatically identifies 12V or 24V systems for easy "plug-and-play" installation.

  • Data Logging: The app provides historical data memory (daily and monthly averages) to help you analyze your energy usage over time.

Technical Specifications

Specification Details
System Voltage 12V / 24V (Auto-Sensing)
Max. Charge Current 40A
Max. Solar Input Power 560W (12V) / 1120W (24V)
Max. PV Open-Circuit Voltage < 100V
Rated Load Current 20A
Peak Charge Efficiency 97%
Tracking Efficiency Up to 99%
Self-Consumption 1W ~ 2W
Weight 1.5 kg
Dimensions 220 × 148 × 64 mm



DATA SHEET

Warranty & Protection

  • Eco-Worthy Warranty: This product includes a 1-year Eco-Worthy warranty covering technical defects and manufacturing performance issues.

What’s in the Box?

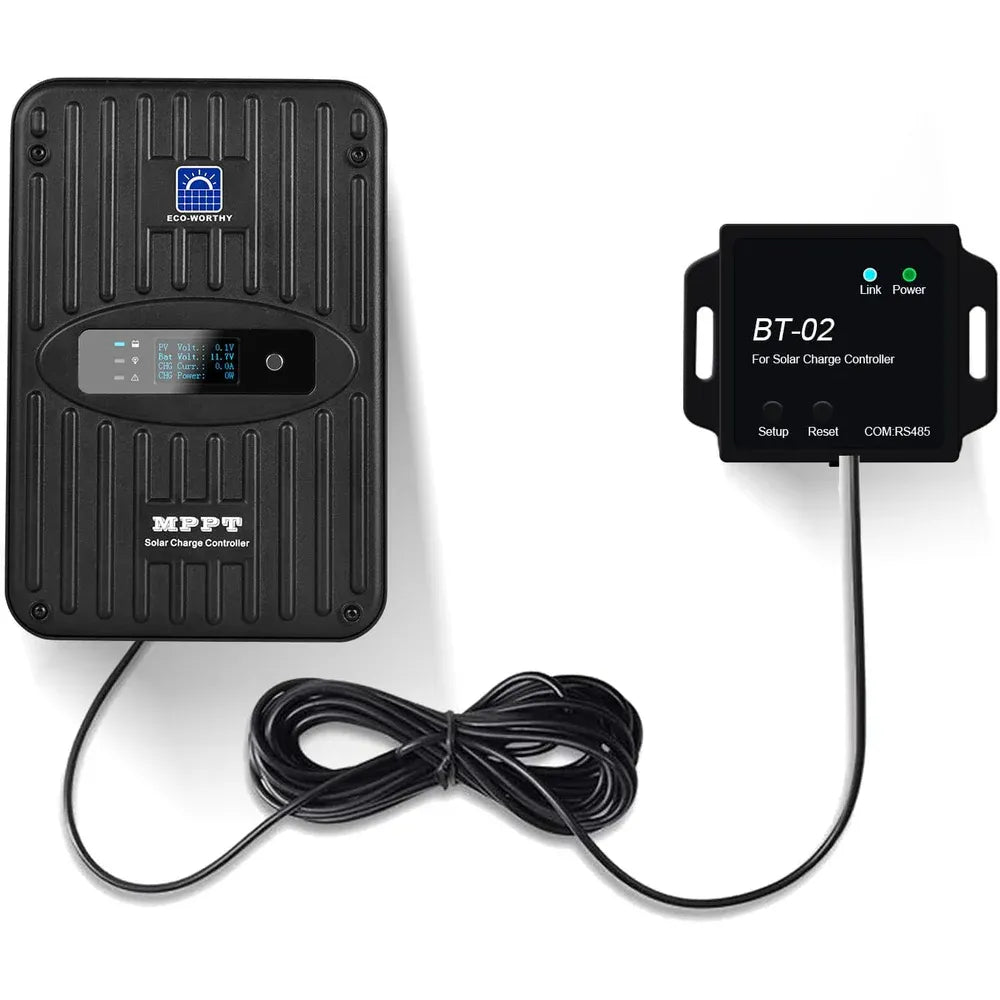

  1. ECO-WORTHY 40A MPPT Solar Charge Controller

  2. Bluetooth 5.0 Communication Module

  3. User Manual & Setup Guide
