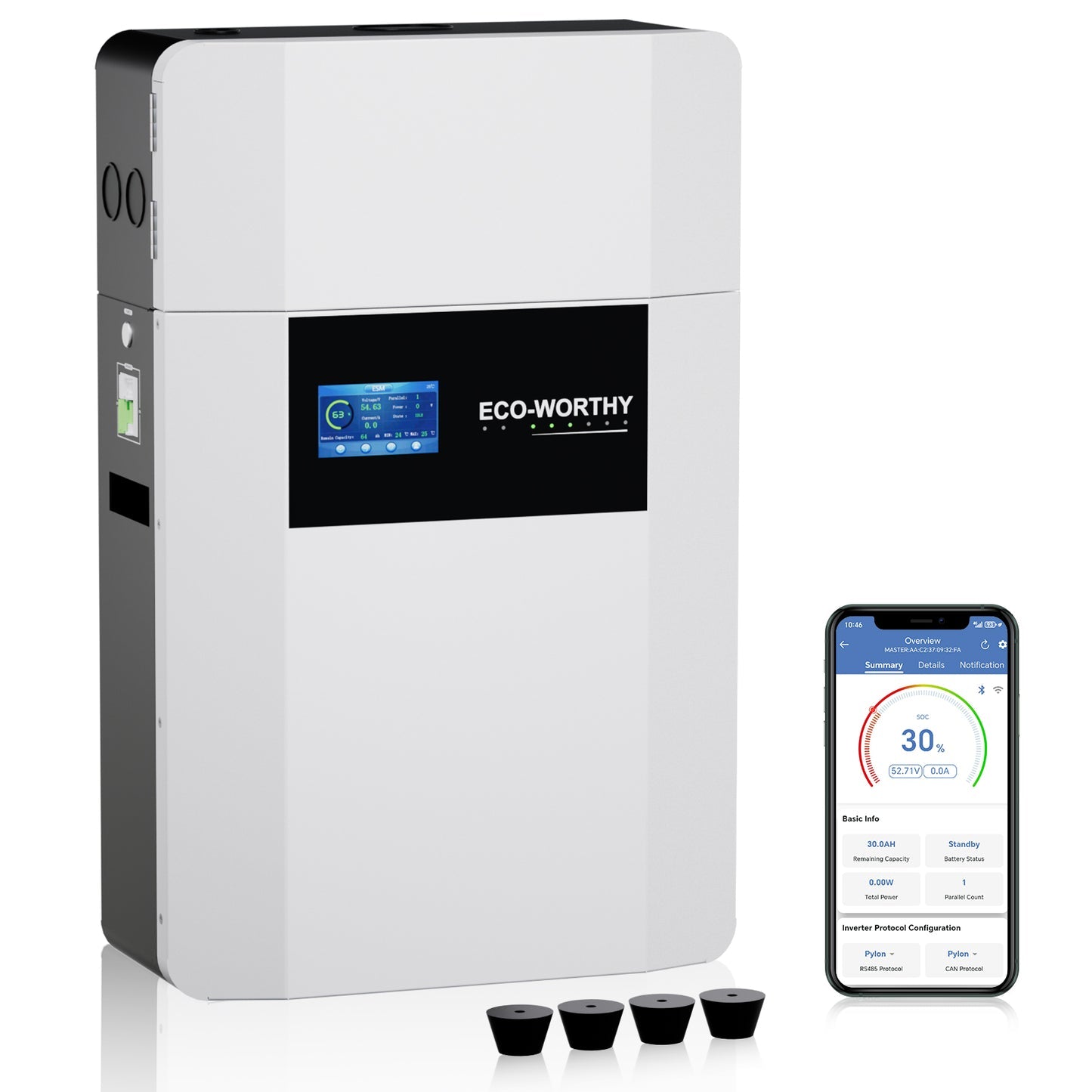

ECO-WORTHY 48V 100Ah 5.12kWh Wall-Mounted LiFePO4 Lithium Battery with Bluetooth & Wi-Fi

ECO-WORTHY 48V 100Ah 5.12kWh Wall-Mounted LiFePO4 Lithium Battery with Bluetooth & Wi-Fi

£849.99 GBP

Sale Sold out

In stock

Free UK Delivery

Product Description

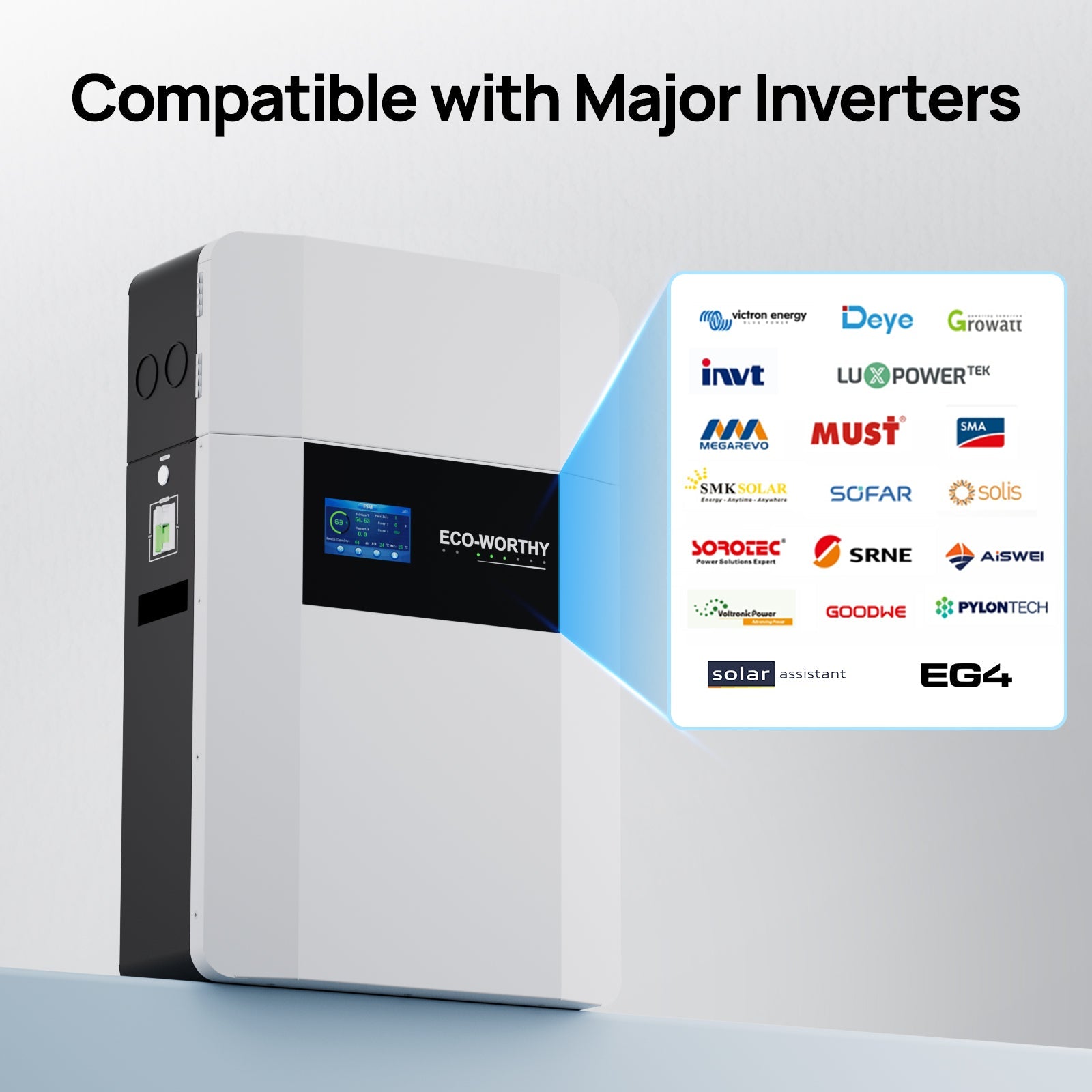

The ECO-WORTHY 48V 100Ah Wall-Mounted 5.12kWh Lithium Battery (LiFePO4) is a sleek, high-density residential energy storage solution. Designed for space-saving wall mounting, this low-voltage battery module is built to pair seamlessly with off-grid and hybrid 48V solar inverters (such as Growatt, Victron, Deye, and Solis) for whole-home backup power or solar self-consumption.

Key Features

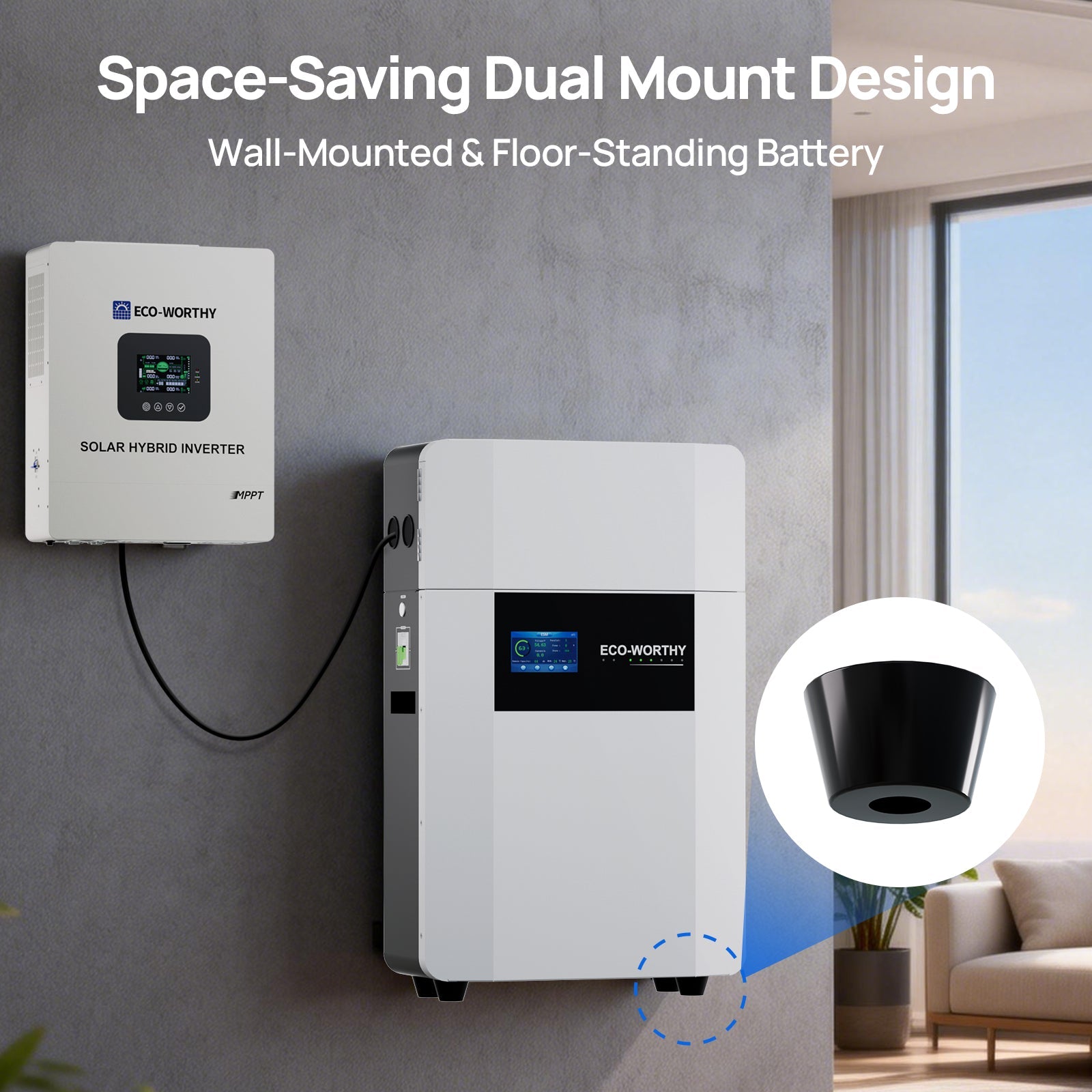

High Energy Density in Space-Saving Layout: Delivers a substantial 5.12kWh capacity in a compact, slimline wall-mountable casing, keeping floor space clear in utility rooms or garages.
Smart Bluetooth & Wi-Fi Tracking: Includes dual Bluetooth and Wi-Fi connectivity built-in, enabling real-time monitoring of individual cell voltages, temperature, and State of Charge (SOC) via a mobile app.
Certified International Standards: Certified to IEC 62619 safety standards and listed on the Clean Energy Council (CEC) database, ensuring high safety parameters for residential installations.
Grade-A LiFePO4 Cells: Utilizes premium Lithium Iron Phosphate (LiFePO4) chemistry to deliver 6,000+ deep discharge cycles down to 80% Depth of Discharge (DoD) for over 15 years of daily use.
High-Current Smart BMS: Equipped with a 100A continuous Intelligent Battery Management System (BMS) with multi-protocol CAN / RS485 / RS232 communication to auto-match with major inverter brands.
Parallel Scalability: Supports parallel connection of up to 15–16 battery units, allowing overall system storage to expand up to 76.8kWh–81.92kWh for heavy-duty power demands.

Technical Specifications

Specification	Details
Nominal Energy Capacity	5.12 kWh
Nominal Capacity	100 Ah
Nominal Voltage	51.2 VDC
Operating Voltage Range	43.2 VDC – 57.6 VDC
Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Cycle Life	6,000+ Cycles @ 80% DoD (25°C)
Max Continuous Charge Current	100 A
Max Continuous Discharge Current	100 A
Peak Discharge Current	200 A (Short Surge)
Communication Protocols	CANbus / RS485 / RS232
Wireless Connectivity	Bluetooth & Wi-Fi App Integration
Ingress Protection Rating	IP21 / Indoor Wall-Mount
Dimensions (H×W×D)	~ 680 × 480 × 160 mm (approx. standard chassis)
Net Weight	~ 48 kg to 52 kg

Warranty & Certifications

Manufacturer Warranty: Backed by a standard 10-year performance and manufacturer warranty on battery capacity retention.
Safety & Compliance: IEC 62619, CEC Listed, UN38.3, MSDS, and CE certified.
