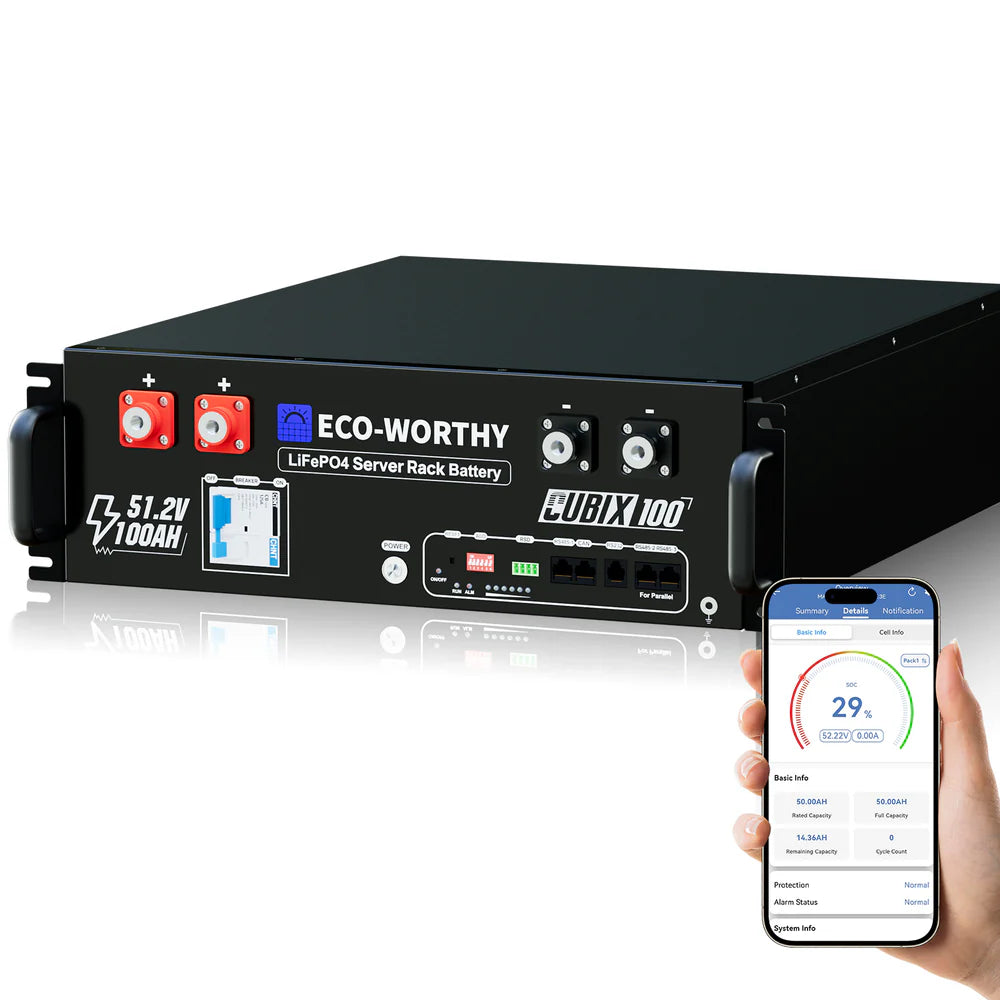

ECO-WORTHY 48V 100Ah Server Rack Battery (Cubix 100), 5.12kWh LiFePO4 with Bluetooth & Wi-Fi – 10 Year Warranty

ECO-WORTHY 48V 100Ah Server Rack Battery (Cubix 100), 5.12kWh LiFePO4 with Bluetooth & Wi-Fi – 10 Year Warranty

Regular price £719.99 GBP
Regular price Sale price £719.99 GBP
Sale Sold out
View full details

🚚 Free Shipping

The ECO-WORTHY 48V (51.2V) 100Ah Server Rack Battery (Cubix 100) is a professional-grade energy storage module designed for home solar systems, server rooms, and off-grid power hubs. Part of the "Cubix" series, this 5.12kWh lithium battery is built in a standard server rack format, allowing for clean, stackable installation and easy scalability.

This advanced model features integrated Bluetooth and Wi-Fi connectivity, allowing you to monitor the battery bank’s performance remotely. With a focus on longevity, it uses high-grade LiFePO4 cells to provide a decade or more of reliable service.


Key Features

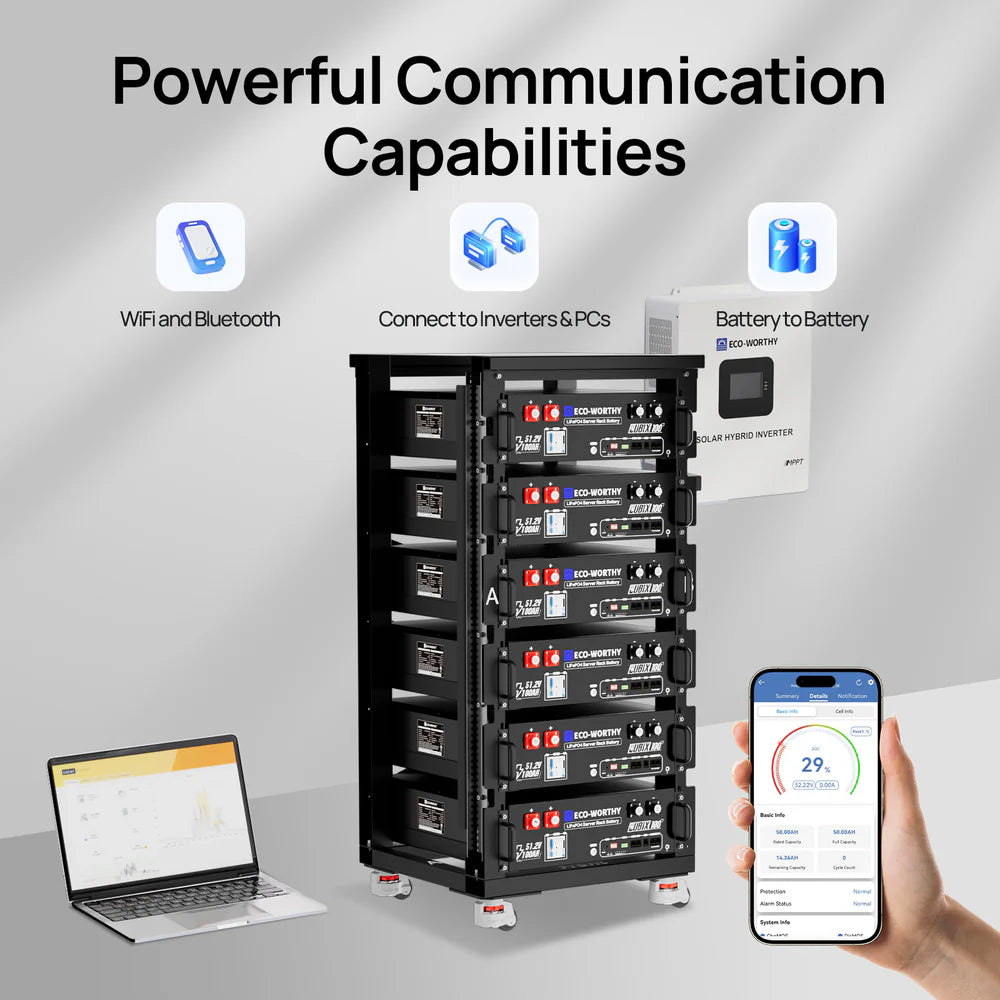

  • Smart Remote Monitoring: Built-in Bluetooth and Wi-Fi allow you to track state-of-charge (SOC), health, and real-time performance via the smartphone app from anywhere.

  • Standard Server Rack Design: The compact 19-inch rack-mount form factor is perfect for tidy installations in cabinets, saving floor space and simplifying cable management.

  • Massive Scalability: Easily expand your storage by connecting multiple units in parallel (up to 15 units), allowing you to grow from 5kWh to over 75kWh as your energy needs increase.

  • High-Performance BMS: The intelligent Battery Management System ensures safe operation by protecting against overcharging, deep discharge, short circuits, and thermal issues.

  • Grade A LiFePO4 Chemistry: Rated for over 6,000 deep cycles, offering one of the best price-to-performance ratios in the home energy storage market.

  • Seamless Inverter Compatibility: Designed to communicate and work perfectly with most major 48V/51.2V hybrid and off-grid inverters.


Technical Specifications

Specification Details
Nominal Capacity 100Ah (5.12kWh)
Nominal Voltage 51.2V
Battery Type LiFePO4 (Lithium Iron Phosphate)
Cycle Life 6,000+ Cycles (at 80% DOD)
Max. Charge Current 50A - 100A
Max. Discharge Current 100A

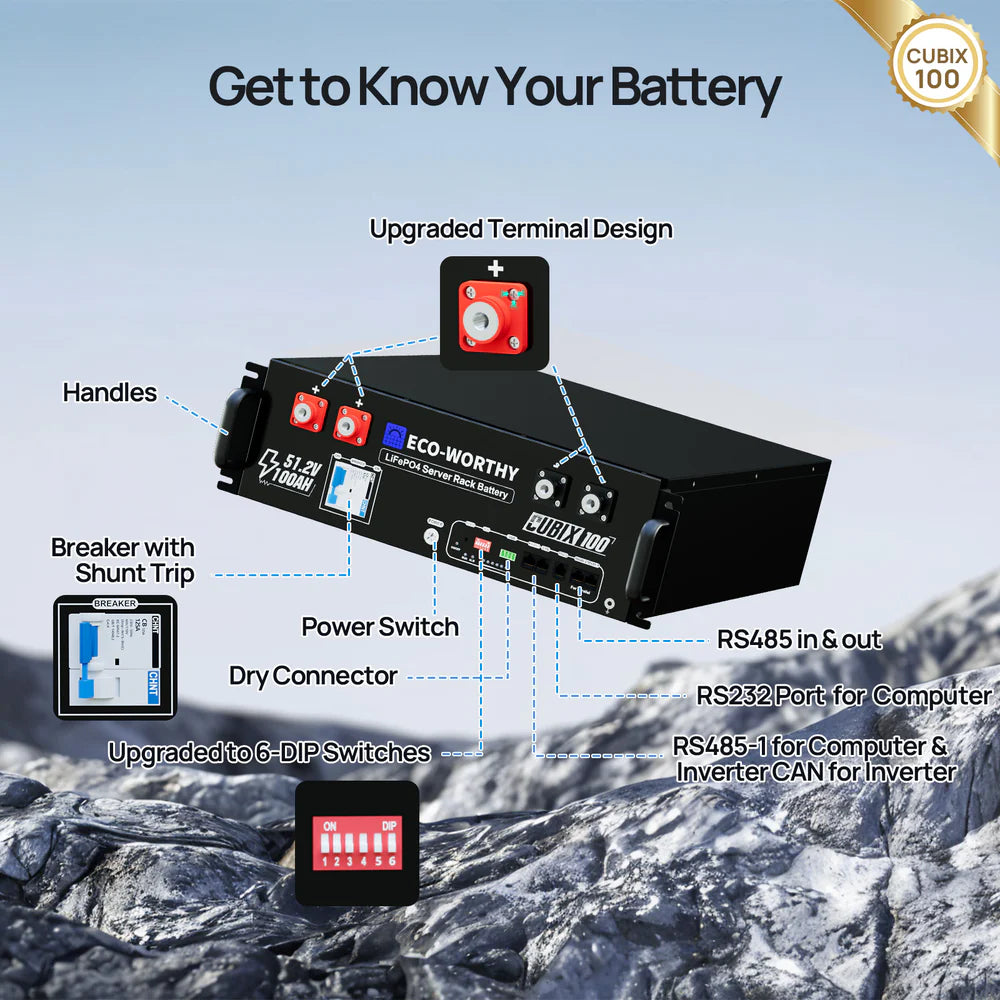

Communication Ports Bluetooth, Wi-Fi, CAN, RS485
Standard Format 19-inch Server Rack (3U/4U Height)
Weight Approx. 43.5 kg (96 lbs)
Dimensions 442 × 410 × 133 mm



BATTERY MANUAL

APP - USER GUIDE


Warranty & Protection

  • Eco-Worthy Warranty: Includes a 10-year Eco-Worthy warranty covering technical defects and performance.

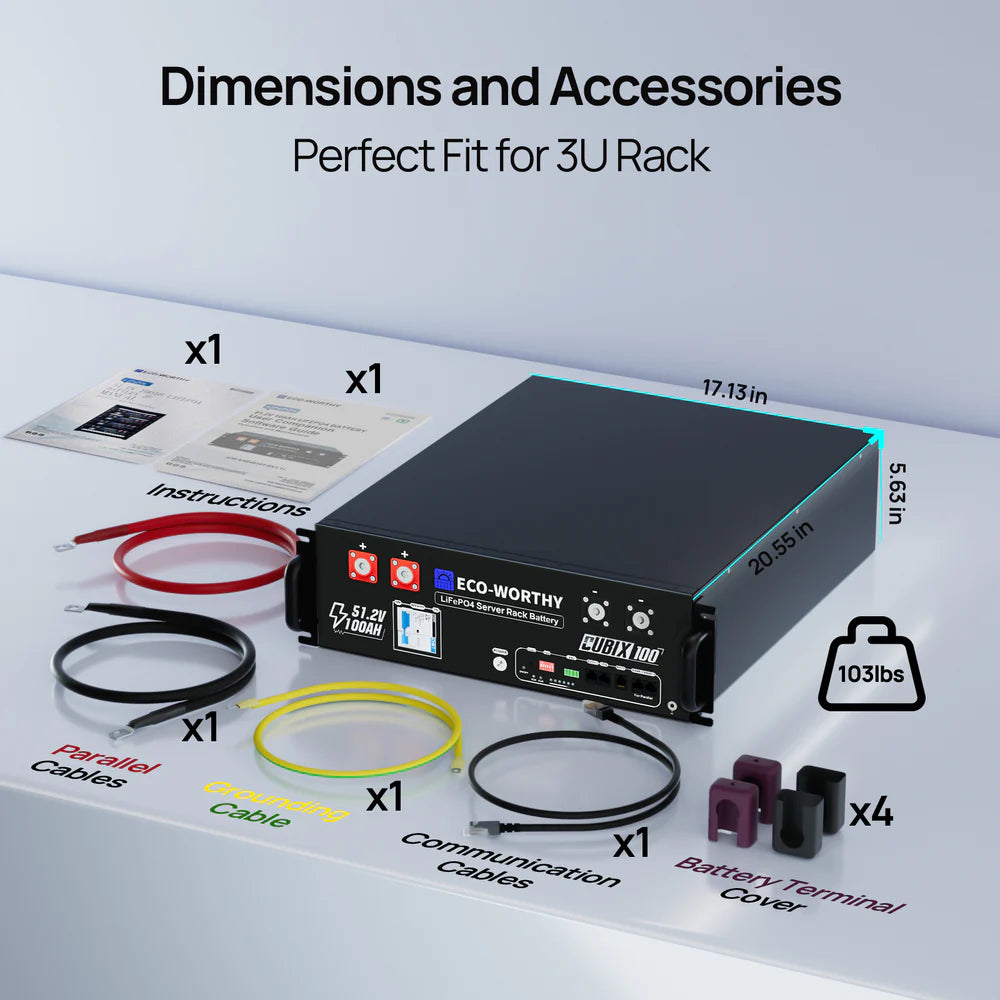

What’s in the Box?

  1. ECO-WORTHY Cubix 100 51.2V 100Ah Server Rack Battery

  2. Parallel Communication Cables

  3. Battery Terminal Power Cables

  4. User Manual & Warranty Documentation
