ECO-WORTHY 5000W 48V All-in-One Solar Inverter Charger with 80A MPPT & WiFi
ECO-WORTHY 5000W 48V All-in-One Solar Inverter Charger with 80A MPPT & WiFi
ECO-WORTHY 5000W 48V All-in-One Solar Inverter Charger with 80A MPPT & WiFi

ECO-WORTHY 5000W 48V All-in-One Solar Inverter Charger with 80A MPPT & WiFi

£625.00 GBP
£625.00 GBP
Sale Sold out
Available to pre-order
Free UK Delivery

Product Description

The ECO-WORTHY 5000W 48V All-in-One Solar Inverter Charger is a comprehensive off-grid power solution that integrates a high-capacity inverter, an MPPT solar charge controller, and an AC battery charger into a single unit. It is designed to manage power from solar panels, a 48V battery bank, and either the grid or a backup generator simultaneously.

With a massive 5000W continuous output and a 10,000W surge capacity, this unit is capable of running heavy-duty appliances such as air conditioners, washing machines, and workshop tools.

Key Features

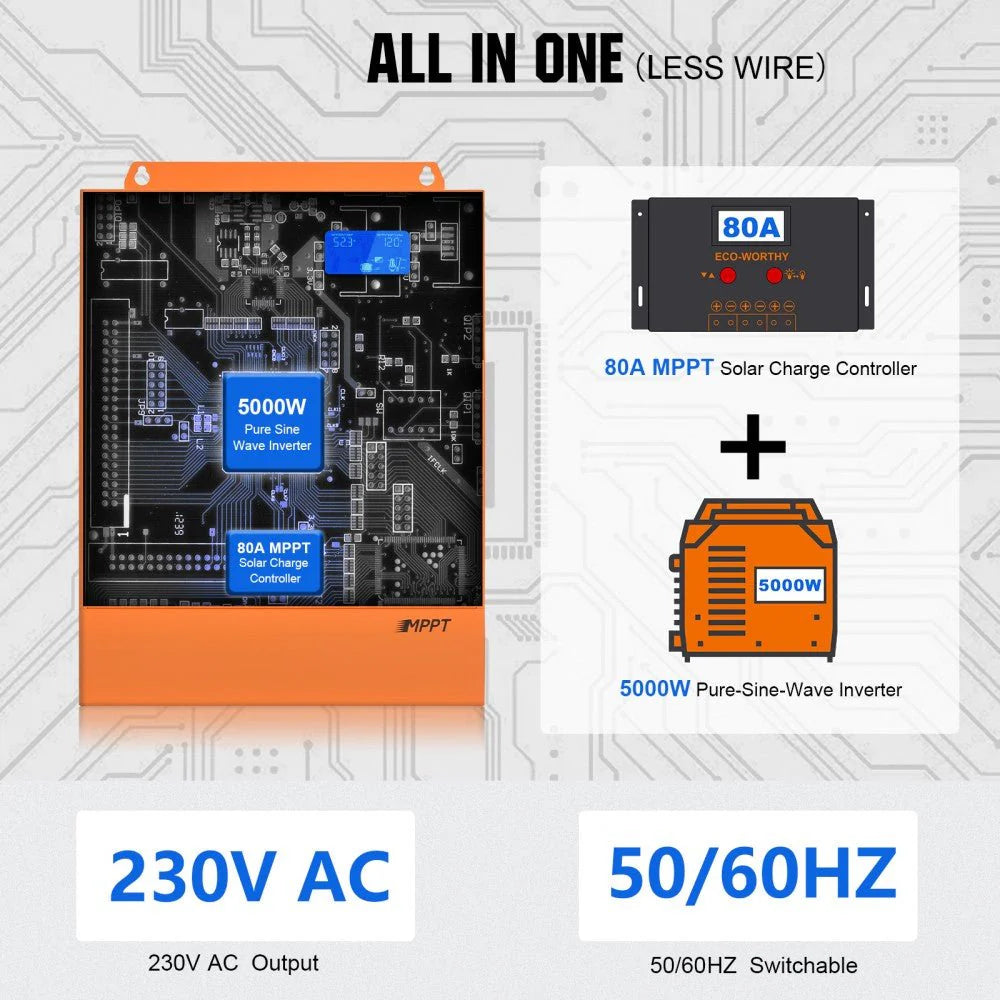

  • 3-in-1 Integration: Combines a 5000W Pure Sine Wave inverter, an 80A MPPT solar charge controller, and a 60A AC battery charger, reducing wiring complexity and saving space.

  • High-Efficiency MPPT: The built-in 80A controller handles up to 5000W of solar input with a wide MPPT voltage range (120V–450V DC), maximizing energy harvest even in variable weather.

  • Advanced Monitoring: Includes a WiFi module for remote system tracking. Monitor energy production, battery status, and load usage via a smartphone or laptop app.

  • Four Charging Modes: Offers flexible energy management: Solar Priority, Utility Priority, Hybrid Charging, or Solar Only.

  • UPS Functionality: Features a rapid transfer switch that automatically toggles between the grid and battery power during outages, ensuring your appliances stay powered without interruption.

  • Broad Battery Support: Fully compatible with LiFePO4 (Lithium), AGM, Sealed, Gel, and Flooded lead-acid batteries.

Technical Specifications

Specification Details
Rated Output Power 5000W
Peak Surge Power 10,000W
Battery Voltage 48V DC
AC Output Voltage 230V AC ±5%
Max. Solar Input Power 5000W
Max. PV Open Circuit Voltage 500V DC
MPPT Voltage Range 120V – 450V DC
Max. Solar Charge Current 80A
Max. AC Charge Current 60A
Efficiency > 95%
Operating Temperature -15°C to 55°C



USER MANUAL

Warranty & Protection

  • Eco-Worthy Warranty: This product includes a 1-year Eco-Worthy warranty covering technical defects and manufacturing performance issues.

What’s in the Box?

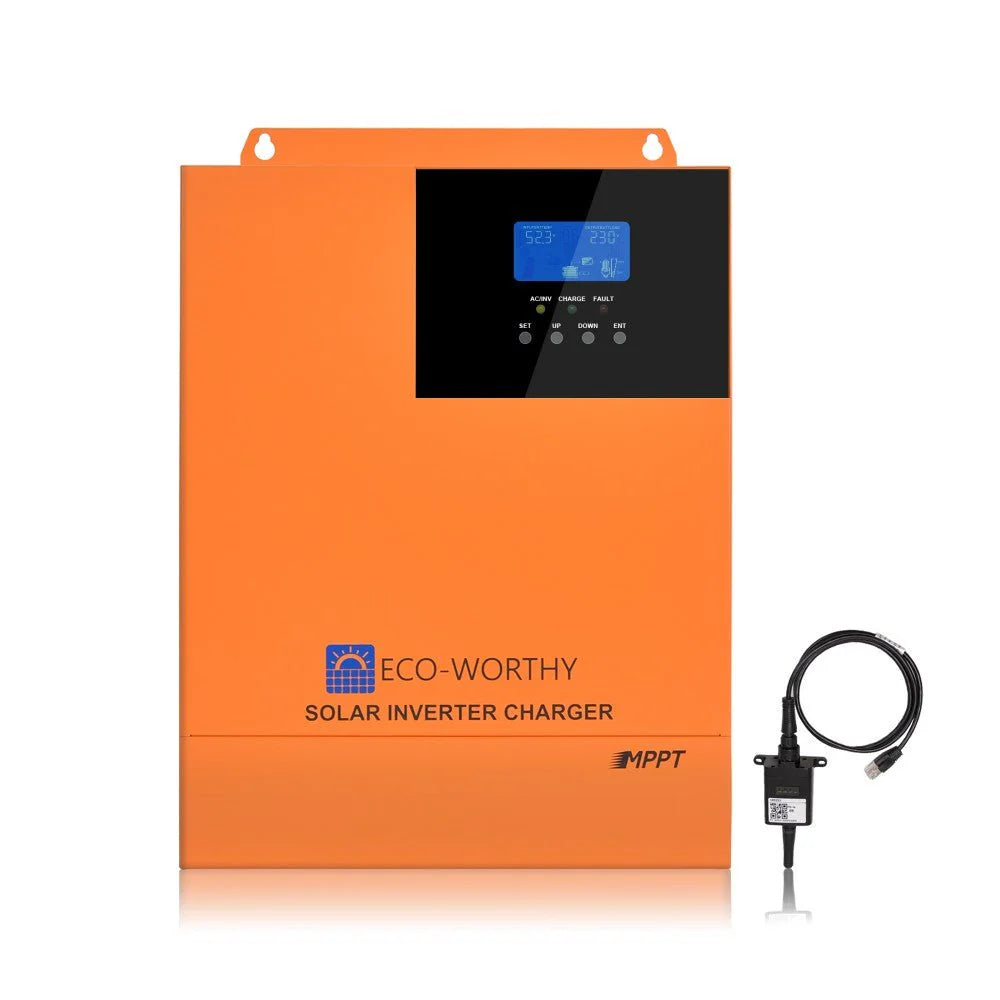

  1. ECO-WORTHY 5000W 48V All-in-One Solar Inverter

  2. WiFi Monitoring Module

  3. User Manual & Installation Guide
