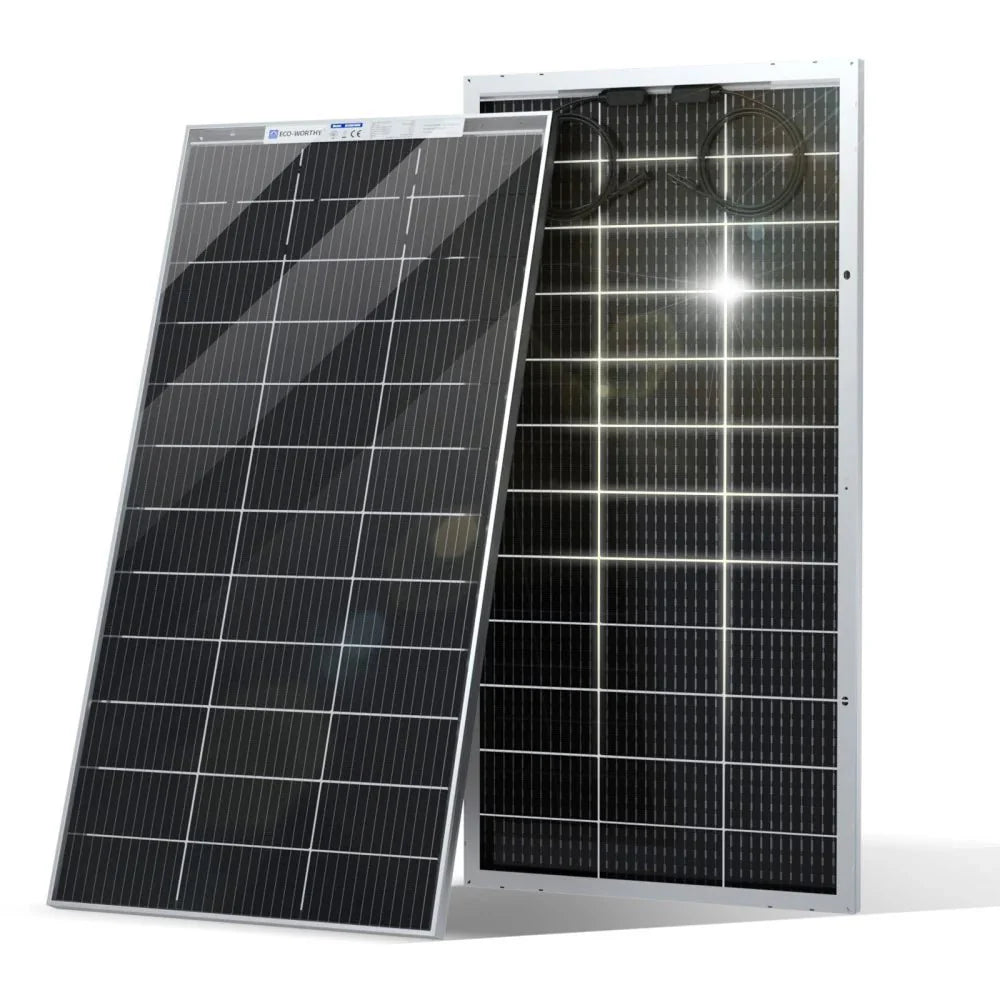

ECO-WORTHY Bifacial 195W 12V Monocrystalline Solar Panel – High-Efficiency Rigid Solar Module with 25-Year Power Output Warranty

ECO-WORTHY Bifacial 195W 12V Monocrystalline Solar Panel – High-Efficiency Rigid Solar Module with 25-Year Power Output Warranty

£89.99 GBP
£89.99 GBP
Sale Sold out
View full details

🚚 Free Shipping

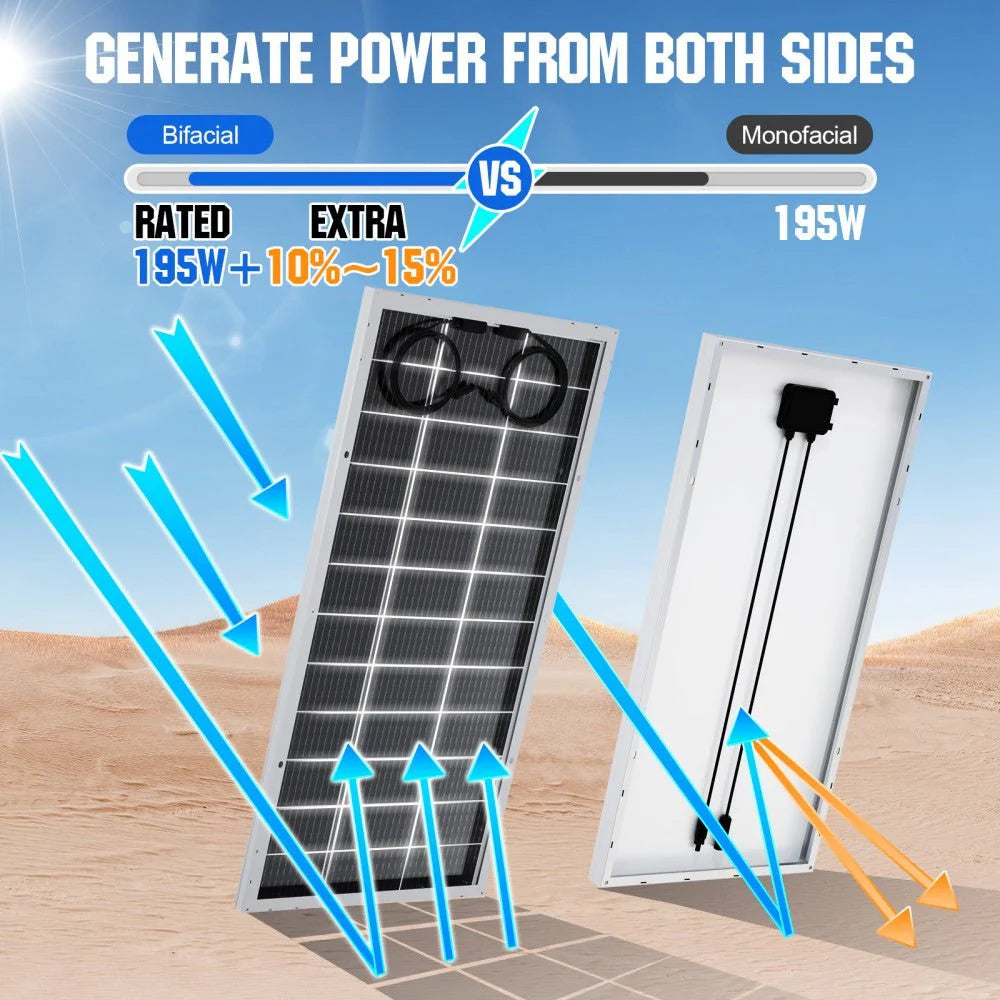

The ECO-WORTHY Bifacial 195W 12V Monocrystalline Solar Panel is an innovative and highly efficient rigid solar module designed for caravans, motorhomes, marine craft, and off-grid configurations. Utilizing an advanced dual-sided (bifacial) architecture, this panel generates electricity from direct overhead sunlight via the front face, while concurrently capturing ambient reflected light through its transparent back panel.

This multi-directional capture system provides a massive advantage over standard panels, boosting overall energy generation by up to 33% depending on ground reflectivity.

Key Features

  • Dual-Surface Bifacial Design: Features a transparent back panel that actively absorbs scattered and ground-reflected light. This allows it to generate up to 33% more energy than traditional single-sided panels, making it highly effective on surfaces like light gravel, sand, snow, or glass.

  • Premium Grade A+ Cell Technology: Engineered with high-efficiency 12BB (12-Busbar) monocrystalline cells and integrated PERC half-cut technology, maximizing current flow and providing superior performance under partial shade conditions.

  • Optimized Daily Output: Delivers exceptional real-world efficiency with a 23% solar cell conversion rating and 91.5% light transmittance, generating approximately 858Wh of usable energy per day under optimal lighting.

  • Heavy-Duty Weather Resilience: Boasts an IP68 rated junction box with built-in bypass diodes to minimize shade-induced power loss, paired with IP67 locking solar connectors. Structurally certified to withstand 2400Pa wind loads and up to 5400Pa heavy snow loads.

  • Rugged Frame Build: Encased in a heavy-duty, corrosion-resistant anodized aluminum alloy frame to protect against salt air, heavy rain, and physical road vibrations.

  • Drop-In 12V Compatibility: Standardized 12V native output parameters make it a direct plug-and-play addition for charging leisure batteries via an MPPT solar controller, or configuring large multi-panel off-grid banks.

Technical Specifications

Specification Details
Rated Maximum Power (Pmax) 195W
Cell Type Grade A+ Monocrystalline (Bifacial)
Solar Cell Efficiency 23%
Maximum Power Voltage (Vmp) 19.8V
Maximum Power Current (Imp) 9.85A
Open Circuit Voltage (Voc) 23.7V
Short Circuit Current (Isc) 10.5A
Output Tolerance ±3%
Operating Temperature Range -40°C to +85°C
Dimensions (L×W×H) 1335 × 670 × 35 mm (52.6 × 26.4 × 1.4 inches)
Product Net Weight 9.29 kg (20.48 lbs)

Warranty & Protection

  • Workmanship Warranty: Includes a 1-year manufacturer warranty covering structural material defects and construction performance issues.

  • Power Output Guarantee: Backed by an extensive 25-year linear power output warranty, ensuring the solar cells maintain their long-term generative efficiency.

What’s in the Box?

  1. ECO-WORTHY Bifacial 195W 12V Monocrystalline Solar Panel

  2. Pre-Installed Rear Junction Box

  3. 2.95 ft (0.9m) Solar Cable Extensions with Pre-Attached Connectors

  4. User Operational Manual
