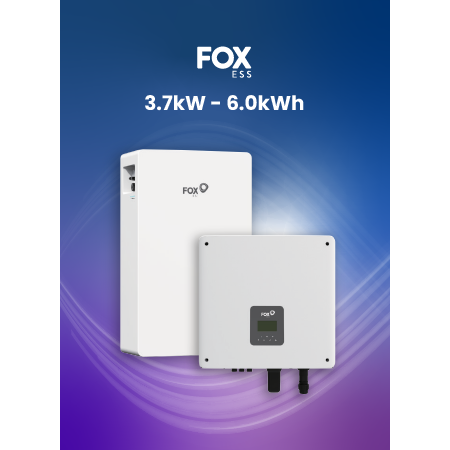

Fox ESS H1 3.7kW Hybrid Inverter & 5.76kWh EP6 Battery Bundle
Product Description
Fox ESS H1 3.7kW Hybrid Inverter with 5.76kWh EP6 Battery Storage Bundle
Single Phase Hybrid Solar & Battery Storage Package UK
This complete Fox ESS energy storage bundle pairs the high-performance H1 3.7kW single-phase hybrid inverter with a 5.76kWh EP6 high-voltage LiFePO4 battery module. Engineered for simple, notification-only G98 grid compliance in the UK, this space-saving system enables homeowners to generate, store, and optimize clean solar power with integrated EPS emergency backup capability and dynamic tariff management.
Why choose the Fox ESS H1 3.7kW + EP6 5.76kWh Battery Bundle?
-
G98 Compliant Grid Connection: Capped at 16A (3.68kW) continuous grid output for straightforward UK grid connection without prior DNO approval.
-
High-Efficiency Dual MPPT Inverter: Features 2 independent MPPT trackers with a low startup voltage (75V DC) for maximum solar generation even in low-light conditions.
-
Safe High-Voltage LiFePO4 Storage: Includes a 5.76kWh EP6 high-voltage battery module offering exceptional round-trip efficiency, safety, and deep depth of discharge (DoD).
-
Modular & Scalable Design: Easily expand your system storage in the future by adding additional EP series battery modules as your energy needs grow.
-
Built-in EPS Emergency Power: Features an integrated Emergency Power Supply (EPS) output to keep critical household circuits operational during grid blackouts.
-
Smart Grid & Tariff Ready: Optimizes charging schedules with dynamic UK time-of-use tariffs (such as Octopus Energy) and offers real-time remote monitoring via the FoxCloud app.
-
Weatherproof IP65 Protection: Durable indoor or outdoor wall-mounted design backed by a 10-year manufacturer warranty across both inverter and battery storage.
-
Dedicated UK Support & National RMA Coverage: Direct access to Get Green Energy's UK-based technical support team with streamlined warranty backup and national RMA exchange services.
-
Fast UK Delivery: Dispatched directly from Get Green Energy.
Technical Specifications & Dimensions
Fox ESS H1 3.7kW Hybrid Inverter
| Feature | Specification |
| Max. Recommended DC Power | 5,500 Wp |
| Max. DC Input Voltage | 600 V |
| MPPT Voltage Range / Startup | 80 V to 550 V / 75 V DC |
| MPPT Trackers / Inputs | 2 MPPTs / 1 String per MPPT |
| Max. Input Current per MPPT | 13.5 A / 13.5 A (Short-circuit: 16.2 A / 16.2 A) |
| Nominal AC Output Power | 3,680 W / 3,680 VA |
| Max. AC Grid Output Current | 16.0 A (G98 Limit) |
| Battery Voltage Range | 80 V to 480 V (High Voltage) |
| Max. Charge / Discharge Current | 50 A / 50 A |
| EPS Backup Power / Switching | 3,680 VA / <20 ms |
| Max. Inverter Efficiency | 97.8% (Euro efficiency: 97.0%) |
| Protection Degree | IP65 (Outdoor rated) |
| Operating Temperature | -25°C to +60°C |
| Communication / Connectivity | Wi-Fi / LAN / CAN / RS485 |
| Dimensions (W × H × D) | 430 mm × 410 mm × 178 mm |
| Inverter Weight | 23.0 kg |
Fox ESS EP6 High-Voltage Battery Storage Module (5.76kWh)
| Feature | Specification |
| Nominal Energy Capacity | 5.76 kWh |
| Usable Capacity | ~5.18 kWh (90% DoD) |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 192 V |
| Operating Voltage Range | 168 V to 216 V |
| Standard Charge / Discharge Current | 15 A / 30 A |
| Max. Continuous Discharge Current | 30 A |
| Protection Degree | IP65 (Outdoor rated) |
| Dimensions (W × H × D) | 380 mm × 620 mm × 220 mm |
| Battery Weight | ~56.0 kg |
Total Combined Bundle Overview
-
Total Battery Capacity: 5.76 kWh (expandable)
-
Combined System Weight: ~79.0 kg
Need Help Sizing or Installing Your Hybrid Solar & Battery System?
If you have questions about battery expansion, PV string design, or G98 grid compliance, call our team on 01684 642370 and our technical experts will help you configure the perfect setup.
