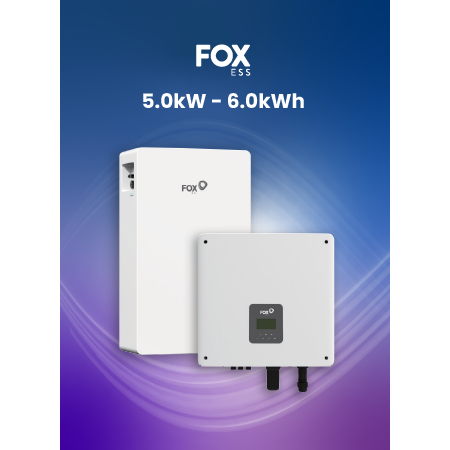

Fox ESS H1 5.0kW Hybrid Inverter & 5.76kWh EP6 Battery Bundle
Product Description
Fox ESS H1 5.0kW Hybrid Inverter with 5.76kWh EP6 Battery Storage Bundle
Single Phase Hybrid Solar & Battery Storage Package UK
This complete Fox ESS energy storage bundle pairs the high-performance H1 5.0kW single-phase hybrid inverter with a 5.76kWh EP6 high-voltage LiFePO4 battery module featuring integrated self-heating technology. Engineered for modern residential solar and energy storage installations, this high-capacity package enables UK homeowners to maximize solar self-consumption, store low-cost grid energy on dynamic tariffs, and maintain essential power during outages with built-in EPS emergency backup.
Why choose the Fox ESS H1 5.0kW + EP6 5.76kWh Battery Bundle?
-
Higher Continuous AC Power Output: 5.0kW continuous AC output power (6.0kW peak for 60s) to handle larger domestic electricity loads, heat pumps, and high-draw home appliances.
-
High DC Oversizing & Dual MPPT: Supports up to 7,500Wp maximum PV input power across 2 independent MPPT trackers with a ultra-low 75V DC startup voltage.
-
High-Voltage LiFePO4 Storage with Integrated Heater: Includes a 5.76kWh EP6 high-voltage battery module featuring internal smart battery heating for optimal performance even in sub-zero outdoor conditions.
-
Modular & Scalable Storage Architecture: Scalable battery capacity allows you to add additional EP series battery modules in parallel up to 23.04kWh as household demands grow.
-
Integrated EPS Emergency Backup: Built-in Emergency Power Supply capability with fast switching time (<20ms) to keep critical lighting, heating, and power sockets active during grid blackouts.
-
Smart Tariff & Grid Ready: Fully compatible with intelligent UK energy tariffs (such as Octopus Energy) for automated off-peak charging and load shifting via the FoxCloud app.
-
IP65 Weatherproof Enclosure: Durable wall or floor mountable design with IP65 weather protection, backed by a 10-year manufacturer warranty across both the inverter and battery storage.
-
Dedicated UK Support & National RMA Coverage: Direct access to Get Green Energy's UK-based technical support team with streamlined warranty backup and national RMA exchange services.
-
Fast UK Delivery: Dispatched directly from Get Green Energy.
Technical Specifications & Dimensions
Fox ESS H1 5.0kW Hybrid Inverter
| Feature | Specification |
| Max. Recommended DC Power | 7,500 Wp |
| Max. DC Input Voltage | 600 V |
| MPPT Voltage Range / Startup | 80 V to 550 V / 75 V DC |
| MPPT Trackers / Inputs | 2 MPPTs / 1 String per MPPT |
| Max. Input Current per MPPT | 13.5 A / 13.5 A (Short-circuit: 16.2 A / 16.2 A) |
| Nominal AC Output Power | 5,000 W / 5,000 VA |
| Max. AC Grid Output Current | 21.7 A |
| Battery Voltage Range | 85 V to 480 V (High Voltage) |
| Max. Charge / Discharge Current | 50 A / 50 A |
| EPS Backup Power / Switching | 5,000 W (Peak 6,000 VA for 60s) / <20 ms |
| Max. Inverter Efficiency | 97.8% (Euro efficiency: 97.0%) |
| Protection Degree | IP65 (Outdoor rated) |
| Operating Temperature | -25°C to +60°C |
| Communication / Connectivity | Wi-Fi / LAN / CAN / RS485 |
| Dimensions (W × H × D) | 430 mm × 410 mm × 178 mm |
| Inverter Weight | 23.0 kg |
Fox ESS EP6 High-Voltage Battery Storage Module (5.76kWh)
| Feature | Specification |
| Nominal Energy Capacity | 5.76 kWh |
| Usable Energy (90% DoD) | 5.18 kWh |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 192 V |
| Operating Voltage Range | 168 V to 216 V |
| Thermal Management | Integrated internal battery heating element |
| Max. Continuous Discharge Rate | 2,880 W (Standard) / 5,760 W (5-minute peak) |
| Protection Degree | IP65 (Outdoor rated) |
| Dimensions (W × H × D) | 380 mm × 640 mm × 185 mm |
| Battery Weight | 51.0 kg |
Total Combined Bundle Overview
-
Total Battery Capacity: 5.76 kWh (expandable up to 23.04kWh)
-
Combined System Weight: ~74.0 kg
Need Help Sizing or Installing Your Hybrid Solar & Battery System?
If you have questions about battery expansion, PV string design, or grid application support, call our team on 01684 642370 and our technical experts will help you configure the perfect setup.
