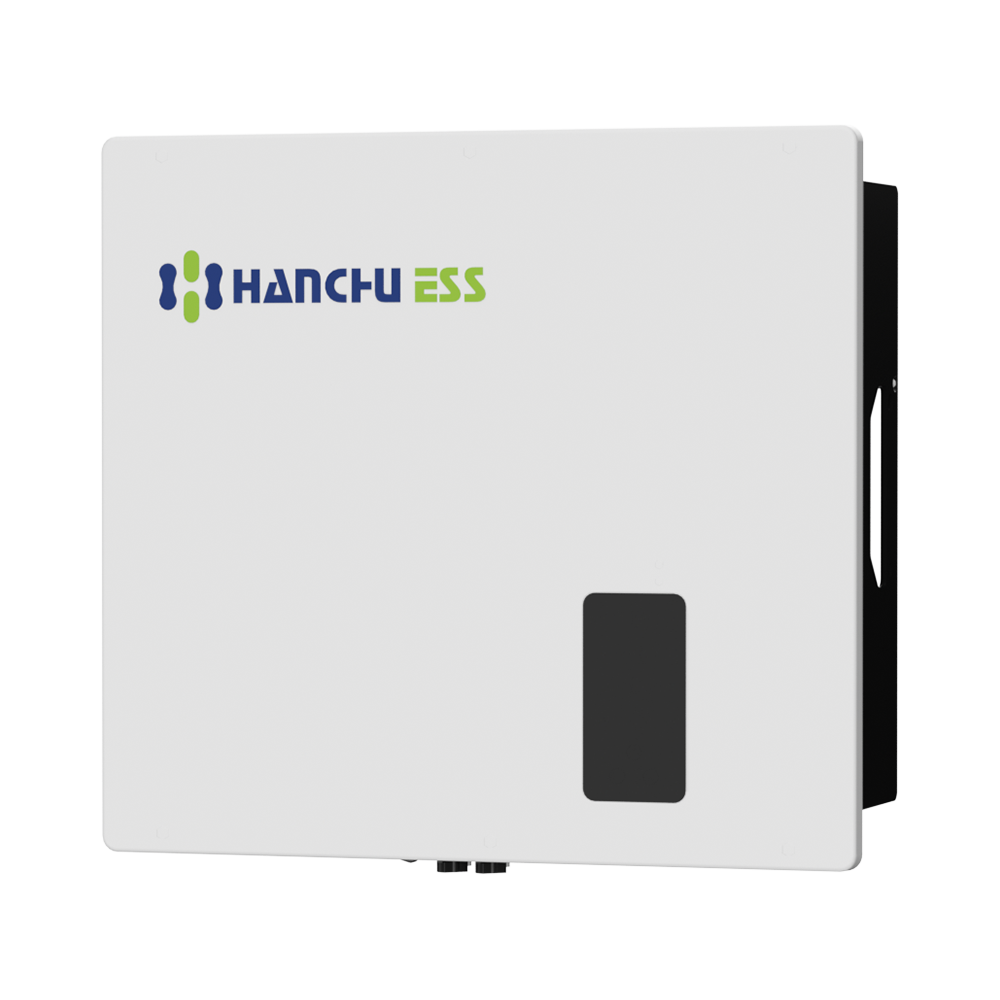

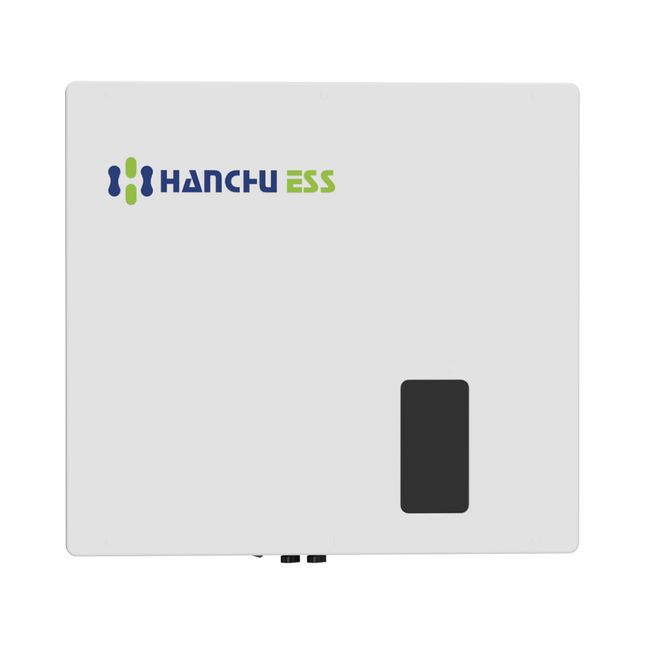

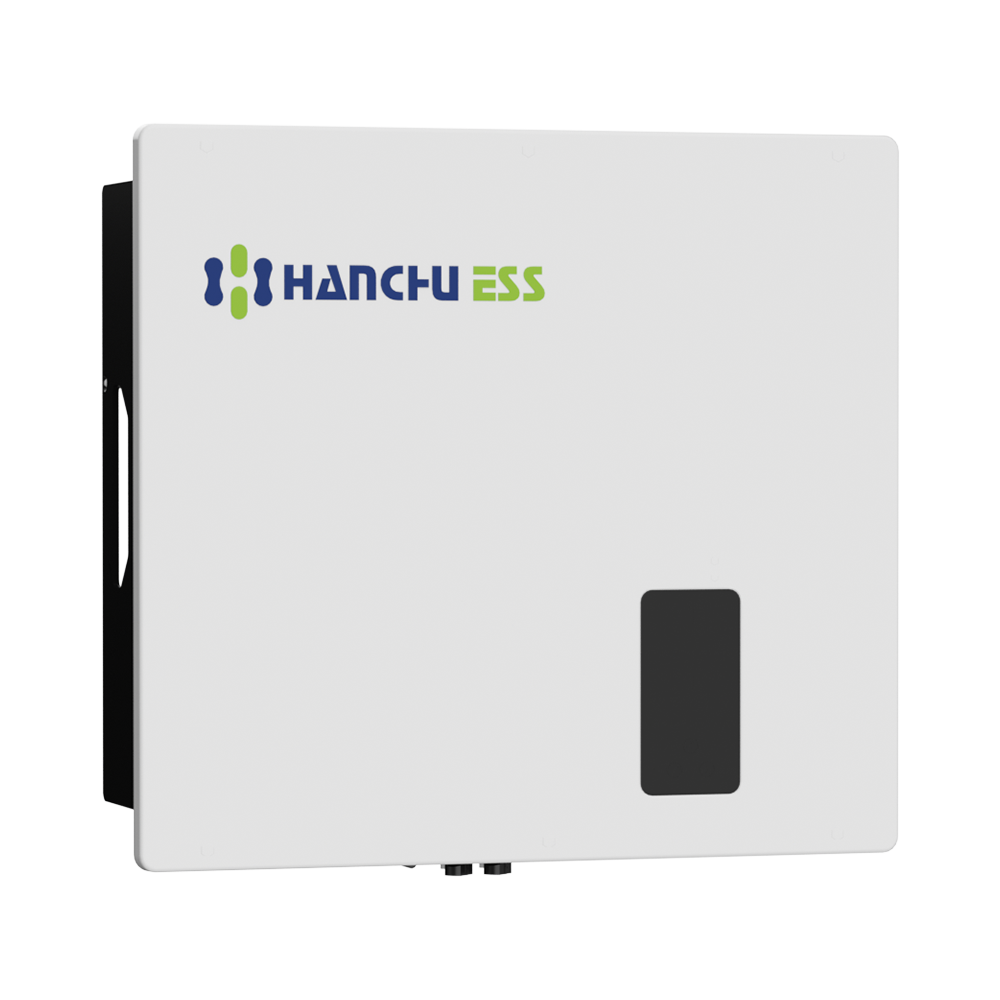

Hanchu ESS 3.68kW Single Phase Hybrid Inverter
Product Description
Hanchu ESS 3.68kW Single Phase Hybrid Inverter
Single Phase Hybrid Solar Inverter UK (G98 Compliant)
The Hanchu ESS 3.68kW single-phase hybrid inverter is the ideal solution for UK domestic solar installations requiring straightforward, notification-only G98 grid connection. Designed to integrate seamlessly with Hanchu low-voltage LiFePO4 batteries, it delivers dual MPPT solar inputs, high-power 100A battery charge/discharge performance, and built-in EPS emergency backup power in a robust, space-saving design.
Why choose the Hanchu ESS 3.68kW Hybrid Inverter?
-
G98 Compliant Grid Connection: Capped at 16A (3.68kW) grid output for simple, hassle-free UK grid connection without prior DNO approval.
-
High DC Oversizing Capability: Supports up to 6,180Wp maximum PV input power across 2 independent MPPT trackers to maximize generation in low-light conditions.
-
Full 5kW Battery Charge/Discharge Performance: Handles up to 100A (5,000W) charging and discharging to rapidly fill battery storage during off-peak energy windows.
-
Seamless Emergency Backup (EPS): Integrated UPS function with fast switching time (≤10ms) and 5,000VA backup capacity (7,500VA peak) to power critical household circuits during outages.
-
Smart Grid & Tariff Optimization: Optimized for dynamic UK energy tariffs (such as Octopus Energy) with real-time remote monitoring via Wi-Fi/LAN/4G app interface.
-
IP66 Outdoor Rated: Built to withstand harsh weather conditions for indoor or outdoor wall mounting, supported by a 12-year manufacturer warranty.
-
Dedicated UK Support & National RMA Coverage: Direct access to Get Green Energy's UK-based technical team with streamlined UK warranty support and national RMA exchange service.
-
Fast UK Delivery: Directly dispatched from Get Green Energy.
Technical Specifications & Dimensions
Hanchu ESS 3.68kW Hybrid Inverter (HESS-HY-S-3.68K)
| Feature | Specification |
| Max. PV Array Power | 6,180 Wp |
| Max. PV Input Voltage | 550 V |
| MPPT Voltage Range / Rated | 40 V to 530 V / 380 V |
| MPPT Trackers / Strings | 2 MPPTs / 1 String per MPPT |
| Max. Input Current per MPPT | 16 A (Short-circuit current: 20 A) |
| Nominal AC Output Power | 3,680 W / 3,680 VA |
| Nominal AC Voltage / Frequency | 230 V (180V–280V) / 50 Hz / 60 Hz |
| Max. AC Grid Output Current | 16.0 A (G98 Limit) |
| Nominal Battery Voltage | 48 V / 51.2 V (LiFePO4) |
| Battery Voltage Range | 40 V to 60 V |
| Max. Charge / Discharge Current | 100 A / 100 A (5,000 W) |
| EPS Backup Power / Switching Time | 5,000 W (Peak 7,500 VA for 10s) / ≤10 ms |
| MPPT / Max Efficiency | 99.90% / 97.60% |
| Protection Degree | IP66 (Outdoor rated) |
| Operating Temperature | -25°C to +60°C |
| Communication / Connectivity | Wi-Fi / LAN / 4G / Bluetooth / RS485 / CAN |
| Dimensions (W × H × D) | 483 mm × 455 mm × 193.5 mm |
| Device Weight | 25.1 kg |
Need Help Sizing or Installing Your Hybrid Solar Setup?
If you have questions about battery compatibility, PV array layout, or G98 grid compliance, give us a call on 01684 642370 and our technical team will help you configure the perfect system.
