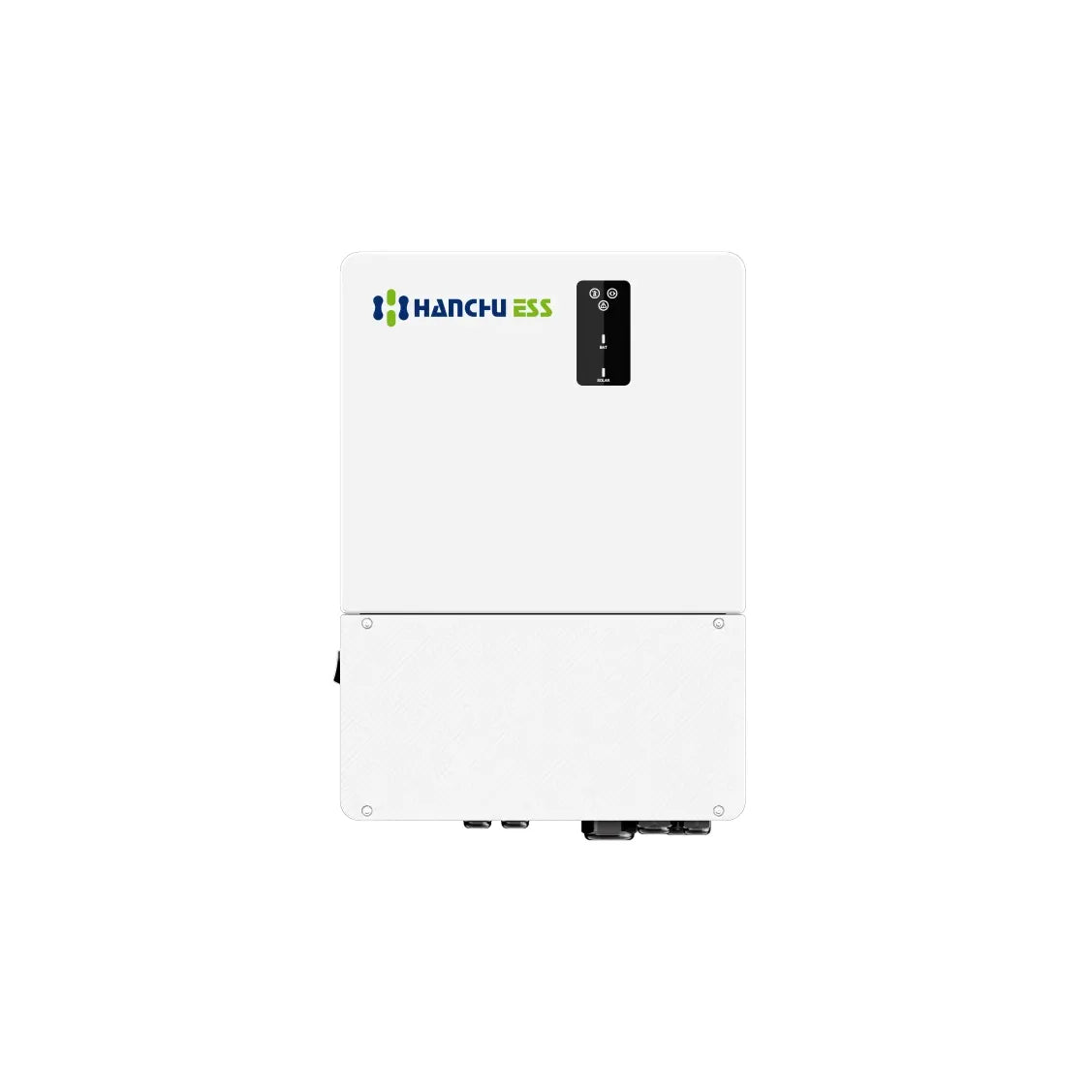

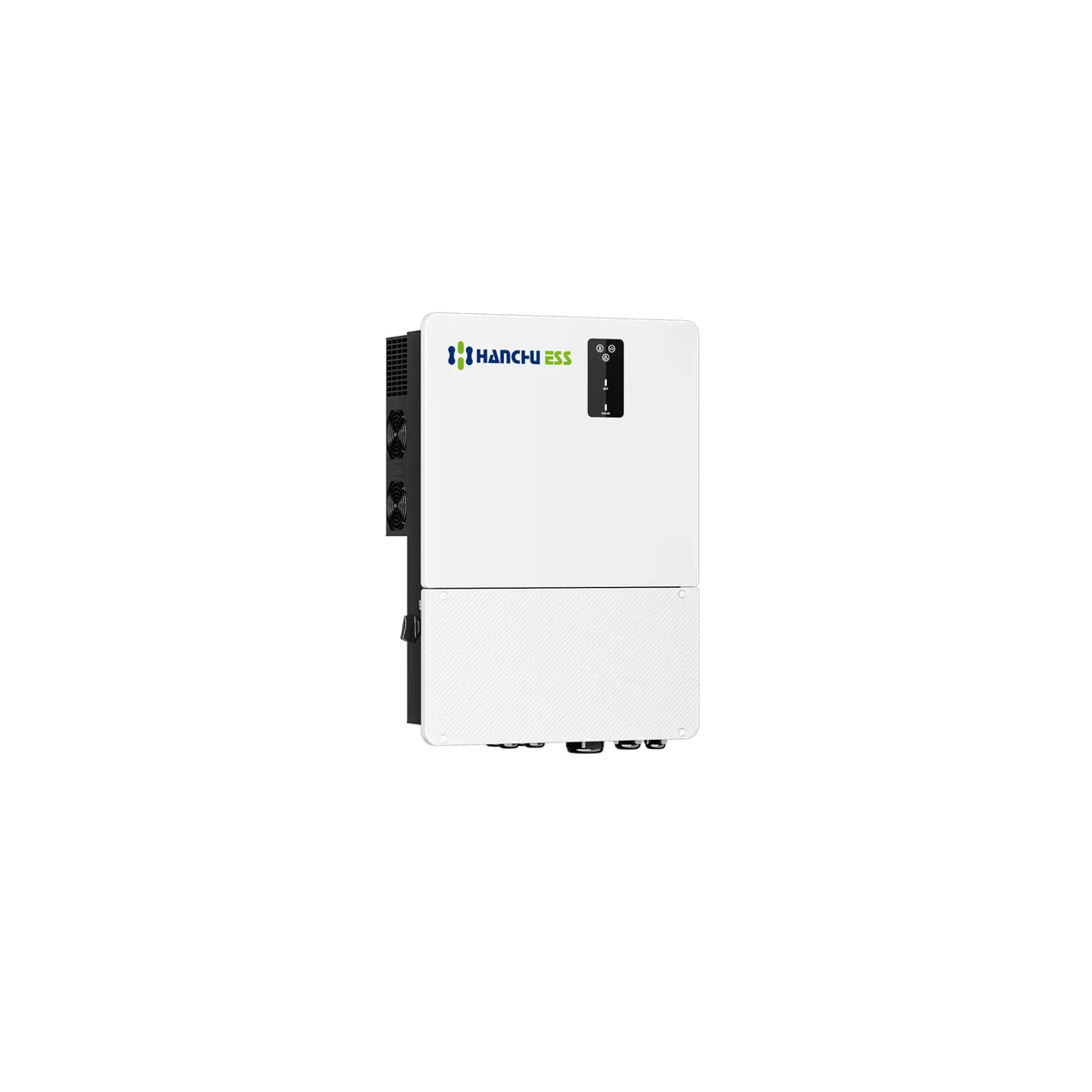

Hanchu ESS 7.0kW Single Phase Hybrid Inverter
Product Description
Hanchu ESS 7.0kW Single Phase Hybrid Inverter
Single Phase Hybrid Solar Inverter UK
The Hanchu ESS 7.0kW single-phase hybrid inverter is a high-capacity energy management power unit designed for larger domestic properties and commercial setups requiring substantial AC output. Engineered to work seamlessly with Hanchu low-voltage LiFePO4 batteries, it combines massive 14,000Wp PV array capability across 3 MPPT trackers, ultra-fast 165A battery charging/discharging, and instant UPS backup power in a robust, weatherproof enclosure.
Why choose the Hanchu ESS 7.0kW Hybrid Inverter?
-
Ultra-High Solar DC Oversizing: Supports up to 14,000Wp maximum PV array input across 3 independent MPPT trackers for maximum solar yield even in lower-light conditions.
-
Rapid High-Current Battery Charge/Discharge: Delivers up to 165A (7,000W) continuous battery power to rapidly charge storage banks and comfortably cover high household electricity demands.
-
Heavy-Duty EPS Emergency Backup: Integrated UPS function with fast switching time (≤10ms) and 14,000VA peak output power keeps essential loads powered during grid outages.
-
Smart Grid & Tariff Optimization: Designed for seamless integration with dynamic UK energy tariffs (such as Octopus Energy) with real-time app monitoring via Wi-Fi/LAN/4G/Bluetooth.
-
IP66 Outdoor Rated: Built for reliable indoor or outdoor wall-mount installation, supported by a 12-year manufacturer warranty.
-
Dedicated UK Support & National RMA Coverage: Direct access to Get Green Energy's UK-based technical team with streamlined UK warranty support and national RMA exchange service.
-
Fast UK Delivery: Directly dispatched from Get Green Energy.
Technical Specifications & Dimensions
Hanchu ESS 7.0kW Hybrid Inverter (HESS-HY-S-7K)
| Feature | Specification |
| Max. PV Array Power | 14,000 Wp |
| Max. PV Input Voltage | 550 V |
| MPPT Voltage Range / Rated | 40 V to 530 V / 380 V |
| MPPT Trackers / Strings | 3 MPPTs / 1 String per MPPT |
| Max. Input Current per MPPT | 20 A (Short-circuit current: 25 A) |
| Nominal AC Output Power | 7,000 W / 7,000 VA |
| Nominal AC Voltage / Frequency | 220 V / 230 V / 240 V (154V–276V) / 50 Hz / 60 Hz |
| Max. AC Grid Output Current | 32.0 A |
| Nominal Battery Voltage | 48 V / 51.2 V (LiFePO4) |
| Battery Voltage Range | 40 V to 60 V |
| Max. Charge / Discharge Power | 7,000 W / 7,000 W |
| Max. Charge / Discharge Current | 165 A / 165 A |
| EPS Backup Power / Switching Time | 7,000 W (Peak 14,000 VA) / ≤10 ms |
| MPPT / Max Efficiency | 99.90% / 97.60% |
| Protection Degree | IP66 (Outdoor rated) |
| Operating Temperature | -25°C to +60°C |
| Communication / Connectivity | Wi-Fi / LAN / 4G / Bluetooth / RS485 / CAN |
| Dimensions (W × H × D) | 484 mm × 679 mm × 230 mm |
| Device Weight | 34.5 kg |
Need Help Sizing or Installing Your Hybrid Solar Setup?
If you have questions about battery compatibility, PV array layout, or grid connections, give us a call on 01684 642370 and our technical team will help you configure the perfect system.
