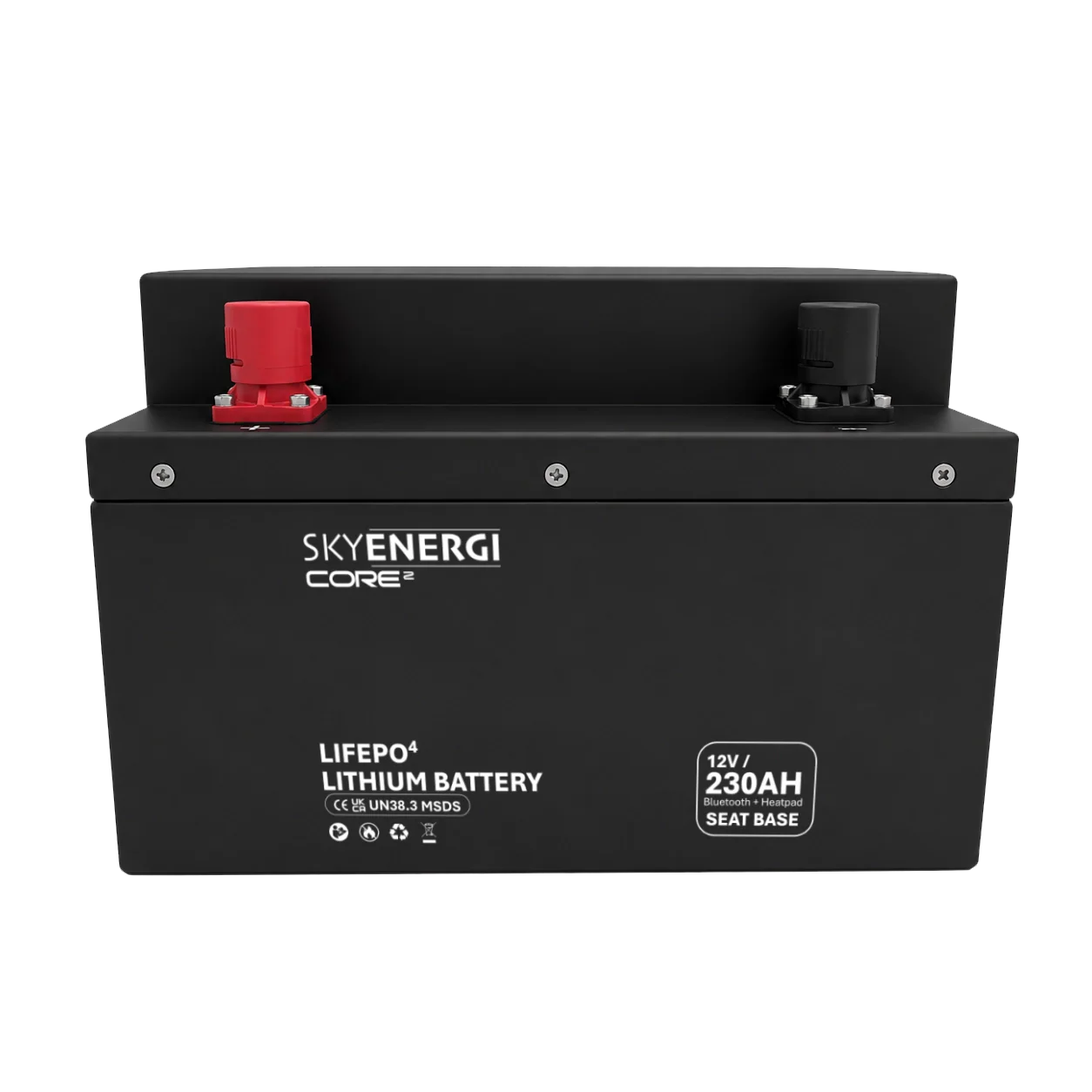

Lithium Leisure Battery - Skyenergi Core2 230Ah Seat-base Bluetooth & Heat-Pad
Product Description
SEO Suggested Titles:
-
Meta Title / SEO Title: SkyEnergi Core2 230Ah Seat Base LiFePO4 Battery (Bluetooth & Heated) | Get Green Energy
-
H1 Product Title: SkyEnergi Core2 230Ah 12V Low Profile Seat Base LiFePO4 Battery (Bluetooth & Heated)
-
Alternative Title: SkyEnergi Core2 12V 230Ah Seat Base Exact-Fit Heated Lithium Leisure Battery
SkyEnergi Core2 230Ah 12V Low Profile Seat Base LiFePO4 Battery (Bluetooth & Heated)
Seat Base Fitment All-Weather Heated Deep Cycle Lithium Leisure Battery UK
The SkyEnergi Core2 230Ah Low Profile Seat Base Lithium Iron Phosphate (LiFePO4) leisure battery is purpose-engineered to fit under single passenger or driver seats in popular campervans—including the VW Transporter (T5/T6/T6.1), Mercedes Sprinter, Ford Transit Custom, and Fiat Ducato. Packing a massive 2.94kWh of usable off-grid energy into a ultra-low 190mm height enclosure, it eliminates the need to compromise on vehicle interior living space. Built for year-round UK off-grid touring, it features an integrated automatic heating pad for sub-zero charging down to -20°C, Grade-A prismatic cells, a high-output 200A Smart BMS, 4,000+ deep cycles, and built-in Bluetooth app monitoring.
Why choose the SkyEnergi Core2 230Ah Seat Base Heated Lithium Battery?
-
Ultra-Low Profile Seat Base Dimensions: Specially designed $355\text{mm} \times 275\text{mm} \times 190\text{mm}$ footprint slides under single seat swivels and factory seat bases without interfering with wiring harnesses or seat mechanisms.
-
Integrated Automatic Internal Heating Pad: Smart thermal management automatically activates the internal heating film when ambient temperatures drop below 0°C, enabling safe battery charging in extreme winter conditions (-20°C to +50°C).
-
Massive 2.94kWh Usable Storage: Delivers 230Ah nominal capacity ($2,944\text{Wh}$ usable energy) in a single compact housing to power heavy off-grid loads without multi-battery wiring.
-
Heavy-Duty 200A Continuous Discharge BMS: Integrated Smart BMS supports 200A continuous output current (350A peak surge for 5 seconds) to effortlessly run high-wattage AC inverters up to 2,500W for induction hobs, microwave ovens, and hair dryers.
-
Grade-A Prismatic Cell Technology: Built with high-density prismatic LiFePO4 cells providing 4,000+ charge/discharge cycles at 80% Depth of Discharge (DoD) for over a decade of daily usage.
-
Integrated Bluetooth App Monitoring: Connects wirelessly to your smartphone to view real-time State-of-Charge (SoC %), cell voltages, heating status, current draw, and internal temperature.
-
Comprehensive BMS Safety Protections: Full safeguard suite against over-charging, over-discharging, over-current, short circuits, high temperatures, and freezing low-temperature charging.
-
Dedicated UK Support: Direct access to Get Green Energy's UK-based technical support team with streamlined warranty backup.
-
Fast UK Delivery: Dispatched directly from Get Green Energy.
Technical Specifications & Dimensions
SkyEnergi Core2 230Ah 12V LiFePO4 Battery (Seat Base Fit)
| Feature | Specification |
| Model / SKU | SkyEnergi Core2 230Ah Seat Base / SE-CORE2-12230SB |
| Form Factor Compatibility | Low Profile Seat Base (VW T5/T6/T6.1, Sprinter, Transit Custom, Ducato) |
| Nominal Voltage | 12.8 V DC |
| Nominal Capacity | 230 Ah (2,944 Wh Usable Energy) |
| Battery Cell Chemistry | Grade-A Prismatic Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | 4,000 Cycles at 80% DoD (25°C) |
| Integrated Heating Element | Automatic Low-Temp Heat Pad (Active during $<0^\circ\text{C}$ charging) |
| Max. Continuous Discharge Current | 200 A DC |
| Peak Discharge Current | 350 A DC (5 seconds) |
| Recommended Charge Current | 40 A to 100 A DC |
| Max. Continuous Charge Current | 150 A DC |
| Charge Cut-off Voltage | 14.6 V DC |
| Discharge Cut-off Voltage | 10.0 V DC |
| Paralleling & Series Support | Supports up to 4 in Parallel (920Ah) / Up to 4 in Series (48V) |
| Communication / Wireless | Integrated Bluetooth (Mobile App Monitoring) |
| Terminal Type | Standard DIN Post / Removable M8 Stainless Steel Threaded Terminals |
| Operating Charge Temperature | -20°C to +50°C (With Heat Pad Activation) |
| Operating Discharge Temperature | -20°C to +60°C |
| Dimensions (L × W × H) | 355 mm × 275 mm × 190 mm |
| Net Weight | ~24.5 kg |
| Manufacturer Warranty | 5 Years |
Need Help Sizing or Installing Your Off-Grid Power Setup?
If you have questions about seat base clearance, winter charging performance, DC-DC charger setup, fusing, or configuring heated battery banks, give us a call on 01684 642370 and our technical team will help you configure the perfect system.
