Skyenergi Elite 560Ah Smart Lithium Leisure Battery – Victron CAN-Bus
Product Description

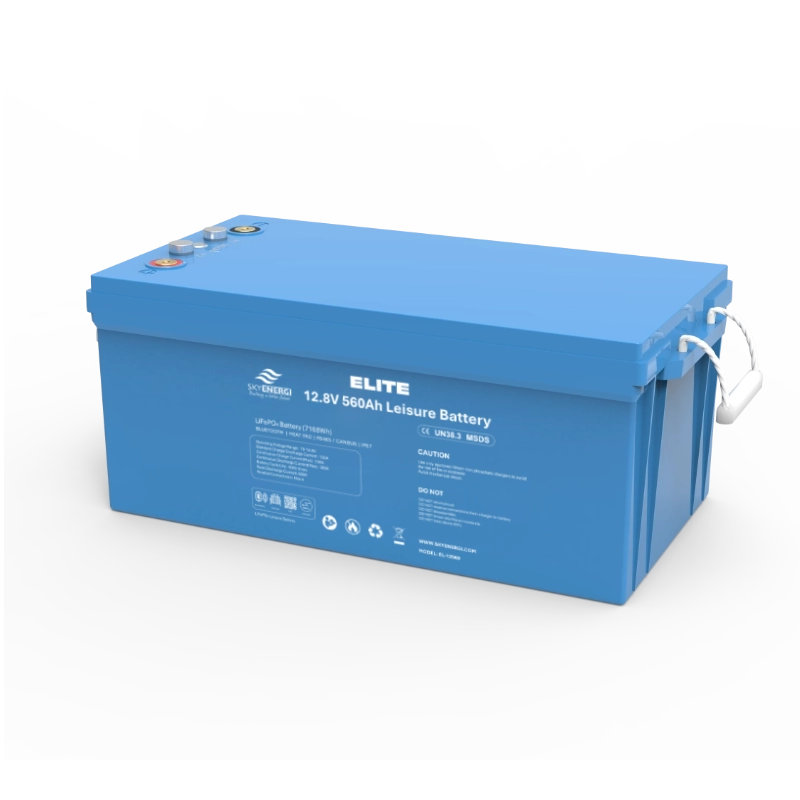

SkyEnergi Elite 560Ah 12V Smart LiFePO4 Battery with Victron CAN-bus
Commercial Victron CAN-bus Integrated Smart Lithium Storage Unit UK
The SkyEnergi Elite 560Ah 12V Lithium Iron Phosphate (LiFePO4) leisure battery is a high-capacity, commercial-grade energy storage solution designed for seamless integration with Victron Energy power systems, off-grid homes, expedition vehicles, and marine vessels. Delivering an exceptional 7.16kWh of usable energy from a single module, it features natively integrated CAN-bus communication for direct plug-and-play connection to Victron Cerbo GX, Ekrano GX, and Color Control GX devices. Purpose-built for all-weather UK and European conditions, it includes an integrated automatic heating pad for sub-zero charging down to -20°C, Grade-A prismatic cells, a heavy-duty 300A continuous Smart BMS, 4,000+ deep cycles, and dual Bluetooth/CAN-bus monitoring.
Why choose the SkyEnergi Elite 560Ah Victron CAN-bus Smart Lithium Battery?
-
Native Victron Energy CAN-bus Integration: Direct RJ45 CAN-bus port enables DVCC (Distributed Voltage and Current Control) communication with Victron GX devices for precise charge control, real-time parameters, and alarm reporting on Victron VRM.
-
Massive 7.16kWh Usable Energy Storage: Delivers 560Ah nominal capacity ($7,168\text{Wh}$ usable energy) from a single unit, replacing complex multi-battery lead-acid or AGM banks without needing external busbars.
-
Heavy-Duty 300A Continuous Discharge BMS: Integrated Smart BMS supports 300A continuous discharge current (600A peak surge for 5 seconds) to comfortably power continuous high-wattage 3,000W+ AC inverters, induction hobs, electric water heaters, and air conditioning units.
-
Integrated Automatic Internal Heating Pad: Smart thermal management automatically activates the internal heating film when ambient temperatures drop below 0°C, enabling safe battery charging in extreme winter conditions (-20°C to +50°C).
-
Grade-A Prismatic Cell Technology: Built with premium prismatic LiFePO4 cells offering over 4,000 charge/discharge cycles at 80% Depth of Discharge (DoD) for over a decade of continuous daily operation.
-
Dual Bluetooth App & Hardware Communication: Monitor State-of-Charge (SoC %), individual cell voltages, temperature, and live charge/discharge currents via the mobile app or directly through connected GX displays.
-
Comprehensive BMS Safety Protections: Complete suite of automated protection against over-charging, over-discharging, over-current, short circuits, high temperatures, and freezing low-temperature charging cut-off.
-
Dedicated UK Support: Direct access to Get Green Energy's UK-based technical support team with direct warranty backup.
-
Fast UK Delivery: Dispatched directly from Get Green Energy.
Technical Specifications & Dimensions
SkyEnergi Elite 560Ah 12V LiFePO4 Battery (Victron CAN-bus & Heated)
| Feature | Specification |
| Model / SKU | SkyEnergi Elite 560Ah / SE-ELITE-12560V |
| Nominal Voltage | 12.8 V DC |
| Nominal Capacity | 560 Ah (7,168 Wh Usable Energy) |
| Battery Cell Chemistry | Grade-A Prismatic Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | 4,000 Cycles at 80% DoD (25°C) |
| Integrated Heating Element | Automatic Low-Temp Heat Pad (Active during $<0^\circ\text{C}$ charging) |
| Victron Compatibility | Native CAN-bus (VE.Can / BMS-Can protocol for Victron GX) |
| Max. Continuous Discharge Current | 300 A DC |
| Peak Discharge Current | 600 A DC (5 seconds) |
| Recommended Charge Current | 50 A to 200 A DC |
| Max. Continuous Charge Current | 250 A DC |
| Charge Cut-off Voltage | 14.6 V DC |
| Discharge Cut-off Voltage | 10.0 V DC |
| Paralleling & Series Support | Supports up to 4 in Parallel (2,240Ah) / Up to 4 in Series (48V) |
| Communication Ports / Wireless | CAN-bus (RJ45), RS485, Integrated Bluetooth |
| Terminal Type | Heavy-Duty M8 Stainless Steel Threaded Terminals |
| Operating Charge Temperature | -20°C to +50°C (With Heat Pad Activation) |
| Operating Discharge Temperature | -20°C to +60°C |
| Dimensions (L × W × H) | 620 mm × 280 mm × 245 mm |
| Net Weight | ~48.0 kg |
| Manufacturer Warranty | 5 Years |
Need Help Sizing or Installing Your Off-Grid Power Setup?
If you have questions about Victron Cerbo GX setup, CAN-bus termination, high-current cable gauge selection (such as 70mm²–95mm² cabling), or configuring Victron MultiPlus inverter systems, give us a call on 01684 642370 and our technical team will help you configure the perfect system.
