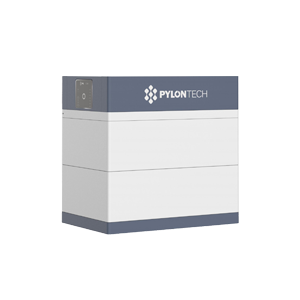

Pylontech Force H3 10.24kWh High Voltage Battery Bank & BMU

Pylontech Force H3 10.24kWh High Voltage Battery Bank & BMU

£2,339.00 GBP
£2,339.00 GBP
Sale Sold out
In stock

Product Description

Pylontech Force H3 10.24kWh High Voltage LiFePO4 Solar Battery System

Modular High-Voltage Stackable Lithium Energy Storage System UK

The Pylontech Force H3 10.24kWh High Voltage Solar Battery System (Part No: PYL-F-H3-BATT-BMU-10.2) is a premium, high-voltage energy storage solution designed for residential solar setups, commercial power systems, and emergency backup installations. Serving as the minimum configuration required to start a Force H3 tower, this kit includes 2 × Pylontech Force H3 5.12kWh battery modules (204.8V nominal system voltage) paired with a high-voltage Battery Management Unit (BMU) control top and base unit. Built with proven lithium iron phosphate (LiFePO4) technology, an IP55 weatherproof enclosure, and a fast 1C charge/discharge rate, the Force H3 system delivers clean vertical stacking without messy external interconnecting wires.

Why choose the Pylontech Force H3 10.24kWh High Voltage Battery Stack?

  • High-Voltage Efficiency: Operating at 204.8V DC nominal voltage, this high-voltage system reduces cable losses and maximizes round-trip efficiency when paired with high-voltage hybrid inverters.

  • 1C Fast Charge & Discharge Capability: Enables up to 10.2kW continuous output power, allowing rapid power delivery for high household loads and fast grid charging during off-peak windows.

  • IP55 All-Weather Outdoor Protection: Heavy-duty, IP55-rated housing provides robust protection against moisture, dust, and weather, suitable for indoor utility rooms or outdoor installations.

  • Cable-Free Vertical Stacking: Built with quick-interlocking stacking connectors that eliminate visible external inter-module power cabling for a clean and simple setup.

  • Superior Cycle Life & Usable Energy: Offers 95% Depth of Discharge (DoD) with 8,000+ operational charge cycles for an expected service lifespan of up to 15 years.

  • Scalable Tower Architecture: Start with 10.24kWh (2 modules) and expand up to 35.8kWh on a single tower (up to 6 modules per tower), or parallel up to 6 towers for up to 215kWh total site storage.

  • Universal Inverter Compatibility: Natively integrates via CAN-bus and Modbus RTU protocols with major hybrid and off-grid inverter brands.

  • Dedicated UK Support: Direct technical guidance, system sizing assistance, and UK warranty backup from Get Green Energy.

  • Fast UK Delivery: Dispatched directly from Get Green Energy.

Technical Specifications & Package Dimensions

Pylontech Force H3 10.24kWh High Voltage Battery Kit

Feature Specification
Model / SKU Pylontech Force H3 10.2kWh / PYL-F-H3-BATT-BMU-10.2
Included Controller / Base 1 × Pylontech Force H3 BMU Controller with Base & Cable Set (PYL-F-H3-BMU-BASE)
Included Battery Modules 2 × Pylontech Force H3 5.12kWh HV Battery Modules (PYL-F-H3-BATT)
Nominal System Voltage 204.8 V DC
Operating Voltage Range 172.8 V DC to 230.4 V DC
Total Capacity 10.24 kWh (10,240Wh Total / ~9.73 kWh Usable Energy)
Depth of Discharge (DoD) 95%
Ingress Protection Rating IP55 (Indoor & Outdoor Rated)
Battery Cell Chemistry Premium Prismatic LiFePO4 (Lithium Iron Phosphate)
Cycle Life 8,000+ Cycles (25°C, 80% capacity retention)
Max. Continuous Power Output 10.20 kW (1C Rating)
Peak Surge Power Output 10.60 kW (15 seconds)
Max. Continuous Current 50 A DC
Tower Expansion Limits 2 to 6 Modules per Tower (10.24kWh to 30.72kWh+ per tower)
Parallel System Limits Up to 6 Towers in Parallel
Communication Protocols CAN-bus / Modbus RTU
Operating Charge Temperature -10°C to +55°C
Operating Discharge Temperature -20°C to +55°C
Overall System Dimensions (W × D × H) 540 mm × 350 mm × 530 mm
Individual Battery Weight 42.00 kg (92.6 lbs) each (84.00 kg total for 2 modules)
BMU & Base Weight 20.20 kg (44.5 lbs)
Total System Net Weight 104.20 kg (229.7 lbs)
Certifications UL1973, UL9540, UN38.3, CE
Manufacturer Warranty 10 Years

What's Included in the Box?

  • 2 × Pylontech Force H3 5.12kWh High Voltage Battery Modules (PYL-F-H3-BATT)

  • 1 × Pylontech Force H3 BMU Control Top Unit & Base Plate (PYL-F-H3-BMU-BASE)

  • 1 × Complete System Communication & Power Cable Set

  • 1 × Grounding & Tower Mounting Fastener Kit

Need Help Sizing or Installing Your High-Voltage Solar Storage System?

If you have questions about high-voltage inverter matching, tower clearance dimensions, main DC power cable sizing, or configuring multi-tower installations, give us a call on 01684 642370 and our technical team at Get Green Energy will help you configure the perfect setup.
