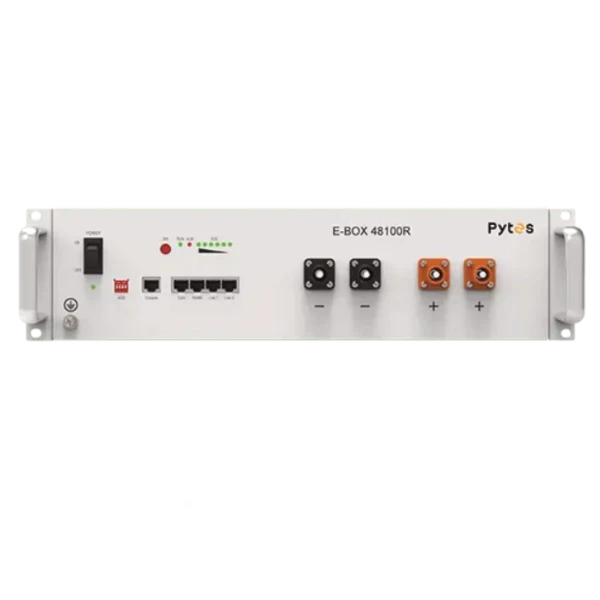

Pytes E-BOX 48100R 5.12kWh LiFePO4 Solar Battery
Product Description
Pytes E-BOX 48100R 5.12kWh 51.2V LiFePO4 Solar Storage Battery
Proven High-Performance Rack-Mount Lithium Energy Storage Unit UK
The Pytes E-BOX 48100R 5.12kWh 51.2V Lithium Iron Phosphate (LiFePO4) solar battery is a compact, high-reliability energy storage module engineered for residential solar setups, off-grid systems, and commercial backup power. Utilizing Tier-1 automotive-grade prismatic cells and a self-developed dual-active MCU Battery Management System (BMS), it delivers long-lasting performance with over 6,000 cycles at 90% Depth of Discharge. Designed for maximum versatility, the E-BOX 48100R easily integrates into standard 19-inch server racks, wall-mount brackets, or floor-standing enclosures. With native CAN-bus and RS485 communication, it seamlessly links with leading hybrid and off-grid inverter systems.
Why choose the Pytes E-BOX 48100R 5.12kWh Lithium Solar Battery?
-
Tier-1 Automotive Grade Prismatic Cells: Built with high-density prismatic LiFePO4 cell chemistry offering $\ge 6,000\text{ cycles}$ at 90% DoD for up to 20 years of operational design life.
-
Compact 19-Inch Rack Form Factor: Standard server rack size allows effortless integration into standard battery cabinets, wall brackets, or stacked floor enclosures.
-
Extensive Parallel Scalability (Up to 286kWh): Supports parallel expansion of up to 56 battery modules (286.72kWh total capacity) to grow alongside your energy storage demands.
-
Wide Inverter Brand Compatibility: Natively communicates via CAN-bus and RS485 with major inverter brands including Victron Energy, Solis, Deye, SRNE, Luxpower, Growatt, Sunsynk, and Megarevo.
-
Remote Monitoring & Wi-Fi Ready: Compatible with Solarman online portal tracking (via WF01 Wi-Fi module) for full real-time visibility over battery health, state-of-charge, and yield analytics.
-
Advanced Dual-MCU BMS Protection: Complete protection suite automated against over-charging, over-discharging, short circuits, thermal extremes, and cell imbalance.
-
Dedicated UK Support: Direct technical guidance, system sizing assistance, and UK warranty backup from Get Green Energy.
-
Fast UK Delivery: Dispatched directly from Get Green Energy.
Technical Specifications & Dimensions
Pytes E-BOX 48100R 5.12kWh LiFePO4 Solar Battery
| Feature | Specification |
| Model / SKU | Pytes E-BOX 48100R / PY-48100R |
| Nominal Voltage | 51.2 V DC |
| Nominal Capacity | 100 Ah (5.12 kWh Total / ~4.6 kWh Usable Energy) |
| Battery Cell Chemistry | Tier-1 Automotive Grade Prismatic LiFePO4 |
| Cycle Life | 6,000+ cycles, 90% DoD, 25°C |
| Recommended Charge / Discharge Current | 50 A DC (0.5C) |
| Max. Continuous Charge / Discharge Current | 50 A DC (Continuous) / 100 A DC (Peak output) |
| Peak Discharge Current | 102 A – 120 A DC (15 seconds) |
| Charge Cut-off Voltage | 57.6 V DC |
| Discharge Cut-off Voltage | 44.8 V DC |
| Round-Trip Efficiency | $>95\%$ |
| Communication Protocols | CAN-bus / RS485 (RJ45 Port) |
| Paralleling Capacity | Up to 56 Units in Parallel (Up to 286.72 kWh) |
| Operating Charge Temperature | 0°C to +55°C |
| Operating Discharge Temperature | -10°C to +55°C |
| Dimensions (W × D × H) | 440 mm × 530 mm × 117 mm (2.6U Rack Height) |
| Net Weight | 51.00 kg (112.4 lbs) |
| Certifications | UL1973, UL9540, UL9540A, CEC, UN38.3, CE |
| Manufacturer Warranty | 10 Years |
What's Included in the Box?
-
1 × Pytes E-BOX 48100R 5.12kWh LiFePO4 Solar Battery
-
1 × Battery-to-Battery Parallel Power Cable Interlink
-
1 × RS485 / CAN-bus Inverter Communication Cable
-
1 × Earthing Cable
-
1 × Set of Wall Mounting / Rack Brackets
Need Help Sizing or Installing Your Off-Grid Solar Storage System?
If you have questions about inverter CAN-bus cable matching, server rack sizing, main power cable selection, or sizing a complete home energy storage system, give us a call on 01684 642370 and our technical team will help you configure the perfect setup.
