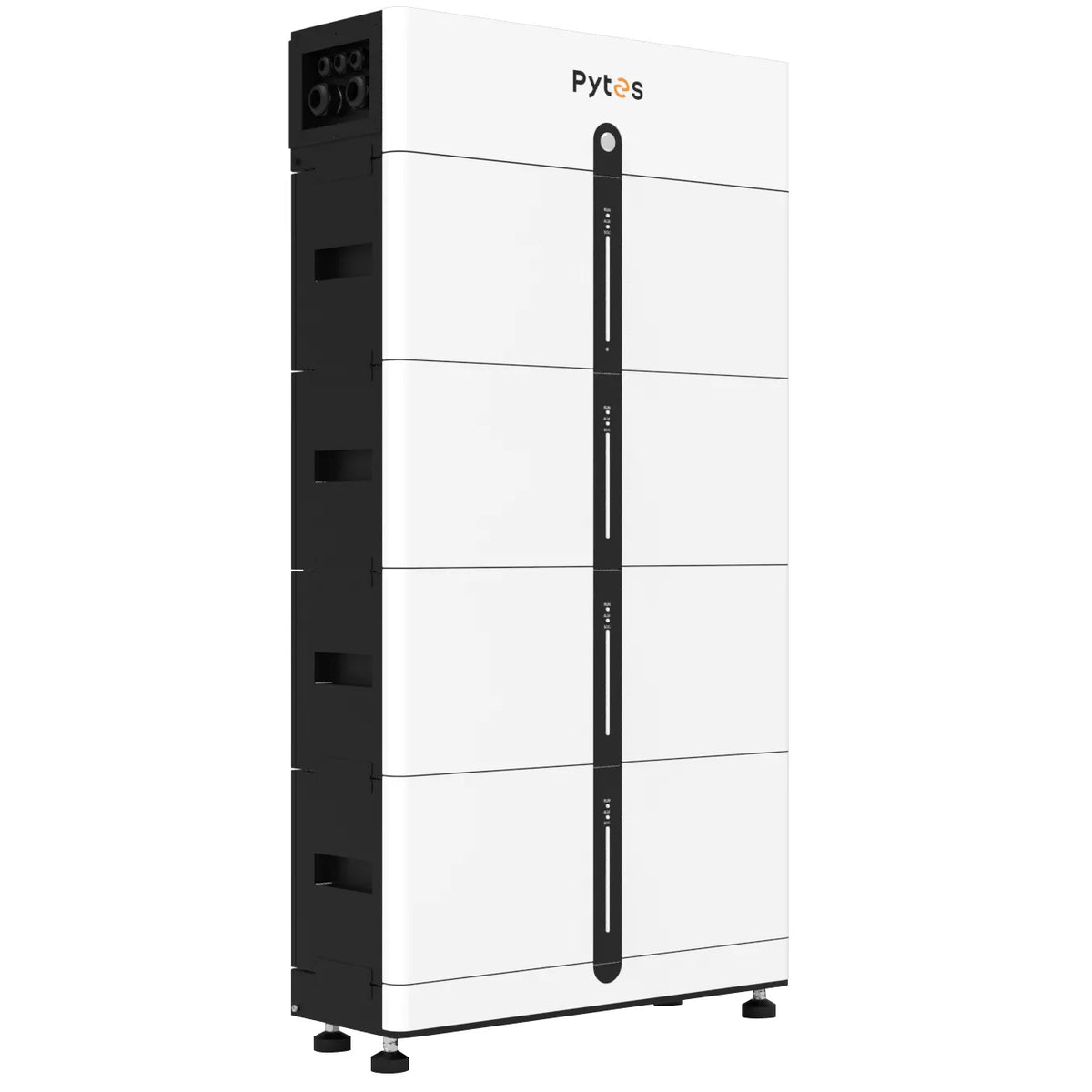

Pytes Pi LV1 Stackable Storage Battery 30kWh

Pytes Pi LV1 Stackable Storage Battery 30kWh

£6,639.00 GBP
£6,639.00 GBP
Sale Sold out
In stock
Free UK Delivery

Product Description

Pytes Pi LV1 30.72kWh Stackable LiFePO4 Weatherproof Solar Battery Kit

High-Performance Plug-and-Play Stackable Lithium Energy Storage System UK

The Pytes Pi LV1 30.72kWh Stackable Solar Battery Kit represents the maximum single-stack capacity configuration of Pytes' next-generation energy storage range. Engineered for seamless, cable-free vertical installation indoors or outdoors, this kit combines 1 × Pytes BCU (Battery Control Unit) with 6 × Pytes BMU (Battery Management Units) to deliver a massive 30.72kWh of raw energy storage (~27.6kWh usable). Built for large residential estates, off-grid power, and commercial backup applications, this IP55-rated modular system features Tier-1 automotive-grade prismatic cells, self-developed dual-active MCU protection, and quick-connect plug-and-play terminals that enable complete installation in as little as 15 minutes while supporting high continuous power output up to 14.08kW.

Why choose the Pytes Pi LV1 30.72kWh Stackable Solar Battery System?

  • Maximum Single-Stack 30.72kWh Capacity: Supplies the maximum modular output permissible in a single vertical stack (6 × 5.12kWh BMU units) to effortlessly handle heavy household demands, off-peak grid charging, and multi-day off-grid power.

  • Effortless 15-Minute Plug & Play Setup: Built with integrated quick connectors that eliminate messy external inter-module hand-wiring, dramatically speeding up installation time and reducing setup friction.

  • IP55 All-Weather Outdoor Protection: Heavy-duty enclosure provides high-strength dustproof and waterproof defense, making it fully rated for indoor utility rooms or direct outdoor installations.

  • High-Power Continuous & Surge Output: Generates massive discharge capability with up to 14.08kW continuous output and 25.6kW surge power capability across stacked configurations.

  • Compact Vertical Footprint: Saves valuable floor space by utilizing vertical floor stacking without requiring heavy wall-mounting or bulky server racks.

  • Tier-1 Automotive Grade Prismatic Cells: Delivers long-term power security with 6,000+ cycles at 90% Depth of Discharge (DoD) for an operational design life of up to 20 years.

  • High Scalability (Up to 122.88kWh): Connect up to 4 full Pi LV1 stacks in parallel to extend site energy storage capacity up to 122.88kWh.

  • Universal Inverter CAN-bus & RS485 Compatibility: Plug-and-play communication integration with leading inverter brands including Victron Energy, Solis, Deye, SRNE, Luxpower, Growatt, Sunsynk, and SMA.

  • Dedicated UK Support: Direct technical guidance, system sizing assistance, and UK warranty backup from Get Green Energy.

  • Fast UK Delivery: Dispatched directly from Get Green Energy.

Technical Specifications & Package Dimensions

Pytes Pi LV1 30.72kWh Stackable Solar Battery Kit

Feature Specification
Model / SKU Pytes Pi LV1 30kWh / PY-PiLV130KWH
Included Controller 1 × Pytes Pi LV1 BCU (Battery Control Unit)
Included Battery Modules 6 × Pytes Pi LV1 BMU 5.12kWh Battery Storage Units (30.72kWh Total)
Included Wiring Kit 1 × Pytes Pi LV1 Battery Wiring Kit
Nominal Voltage 51.2 V DC
Total Usable Capacity 30.72 kWh (30,720Wh Total / ~27.6 kWh Usable Energy)
Ingress Protection Rating IP55 Waterproof and Dustproof (Indoor & Outdoor Rated)
Battery Cell Chemistry Tier-1 Automotive Grade Prismatic LiFePO4
Cycle Life 6,000+ Cycles at 90% DoD (25°C, 80% capacity retention)
Max. Continuous Power Output Up to 14.08 kW
Peak Surge Power Output Up to 25.6 kW
Module Stacking Limits 2 to 6 BMU Modules per Stack (10.24kWh to 30.72kWh per stack)
Max. Parallel System Capacity Up to 4 Stacks in Parallel (Up to 122.88 kWh)
Communication Protocols CAN-bus / RS485 (Direct Inverter BMS Link)
Operating Charge Temperature 0°C to +55°C
Operating Discharge Temperature -20°C to +55°C
System Dimensions (W × D × H) 681 mm × 242 mm × 1840 mm
Total Net Weight 339.00 kg (747.36 lbs)
Certifications UL1973, UL9540, UL9540A, CEC, SGIP, UN38.3, CE
Manufacturer Warranty 10 Years

What's Included in the Box?

  • 1 × Pytes Pi LV1 BCU (Battery Control Unit)

  • 6 × Pytes Pi LV1 5.12kWh BMU Battery Storage Modules (30.72kWh Total)

  • 1 × Pytes Main Battery Wiring Kit

  • Interlock Mounting & Grounding Fasteners

Need Help Sizing or Installing Your Plug-and-Play Solar Storage System?

If you have questions about floor loading limits, max stack height clearances, battery-to-inverter main power cable gauge selection, or matching with Victron or Solis inverters, give us a call on 01684 642370 and our technical team at Get Green Energy will help you configure the perfect setup.
