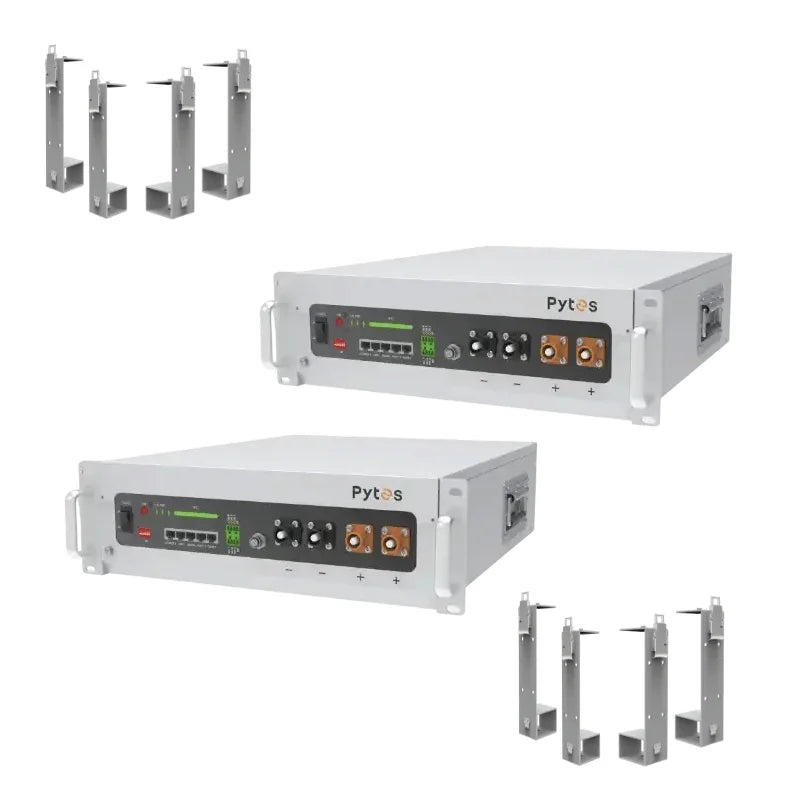

Pytes V5A 10.24kWh LiFePO4 Solar Battery Kit with Stacking Brackets
Product Description
Pytes V5A 10.24kWh LiFePO4 Solar Battery Kit with Stacking Brackets
Modular 10kWh Heated Lithium Battery Storage System for Home & Off-Grid Solar UK
The Pytes V5A 10.24kWh LiFePO4 Solar Battery Kit combines two Pytes V5A 5.12kWh lithium storage modules with interlocking floor-stacking brackets to deliver a compact, high-performance 10.24kWh energy storage bank. Engineered for residential solar, off-grid systems, and emergency backup, the V5A uses Tier-1 automotive-grade prismatic cells, integrated self-heating for sub-zero operation, and a dual-active MCU battery management system (BMS). This kit provides clean vertical floor-mounting without needing expensive server racks or heavy wall installations, offering a simple plug-and-play solution compatible with leading inverter brands including Victron, Solis, Deye, Luxpower, and SRNE.
Why choose the Pytes V5A 10.24kWh Battery Kit with Stacking Brackets?
-
Complete 10.24kWh Expandable Storage Bank: Includes two Pytes V5A 5.12kWh battery modules ($10,240\text{Wh}$ total capacity) to provide substantial daily energy storage and backup power.
-
Integrated Low-Temperature Heating Film: Features automated internal heating pads for safe charging in cold outbuildings, unheated garages, or outdoor enclosures down to low temperatures.
-
Compact Vertical Floor-Stacking Solution: Includes two sets of heavy-duty SGCC galvanised steel corner brackets, allowing direct vertical stacking that saves floor space while maintaining natural cooling airflow between modules.
-
Tier-1 Automotive Grade Prismatic Cells: Engineered for exceptional long-term reliability with over 6,000 cycles at 90% Depth of Discharge (DoD) and a 10-year manufacturer warranty.
-
Universal Inverter Compatibility: Natively communicates via CAN-bus/RS485 with Victron Energy, Solis, Deye, Luxpower, SRNE, Sunsynk, Growatt, SMA, and other major inverter brands.
-
High Scalability (Up to 655kWh): Connect up to 16 units per group (82kWh) and up to 8 groups using a Pytes Hub for large residential or commercial power setups.
-
Dedicated UK Support: Direct technical guidance, system sizing assistance, and UK warranty backup from Skyenergi.
-
Fast UK Delivery: Dispatched directly from Skyenergi UK stock.
Technical Specifications & Kit Contents
Pytes V5A 10.24kWh Solar Battery Kit
| Feature | Specification |
| Model / SKU | Pytes V5A 10kWh Kit / PY-V5A+10kWh+STKB |
| Included Battery Modules | 2 × Pytes V5A 5.12kWh 48V / 51.2V 100Ah Batteries |
| Included Mounting Accessories | 2 × Sets of Floor Stacking Brackets (8 brackets total) |
| Nominal Voltage | 51.2 V DC |
| Total Usable Capacity | 10.24 kWh ($10,240\text{Wh}$) |
| Battery Cell Chemistry | Tier-1 Automotive Grade Prismatic LiFePO4 |
| Cycle Life | 6,000+ cycles, 90% DoD, 25°C |
| Low-Temp Heating Element | Integrated Internal Heating Film (Automatic Activation) |
| Max. Continuous Charge/Discharge Current | 100 A DC per battery (200 A total bank capability) |
| Peak Discharge Current | 120 A DC (15 seconds per module) |
| Communication Protocols | CAN-bus / RS485 (Direct Inverter BMS Link) |
| Operating Charge Temperature | -10°C to +55°C (With Heating Activation) |
| Individual Battery Dimensions (W × D × H) | 440 mm × 530 mm × 140 mm |
| Individual Battery Net Weight | 44.00 kg (97.00 lbs) |
| Bracket Set Net Weight | 1.44 kg (3.17 lbs) per battery set |
| Total Kit Net Weight (Batteries + Brackets) | ~90.88 kg (200.35 lbs) |
| Manufacturer Warranty | 10 Years |
What's Included in the Box?
-
2 × Pytes V5A 5.12kWh LiFePO4 Solar Batteries
-
2 × Sets of Heavy-Duty Stacking Brackets
-
2 × Battery-to-Battery Power Cable Interlinks
-
2 × Battery-to-Battery BMS Communication Cables
-
2 × Earthing Cables
Need Help Sizing or Installing Your Home Solar Storage?
If you have questions about inverter matching, battery-to-inverter main power cable selection, DIP switch address setting, or expanding your energy bank, give us a call on 01684 642370 and our technical team will help you configure the perfect setup.
