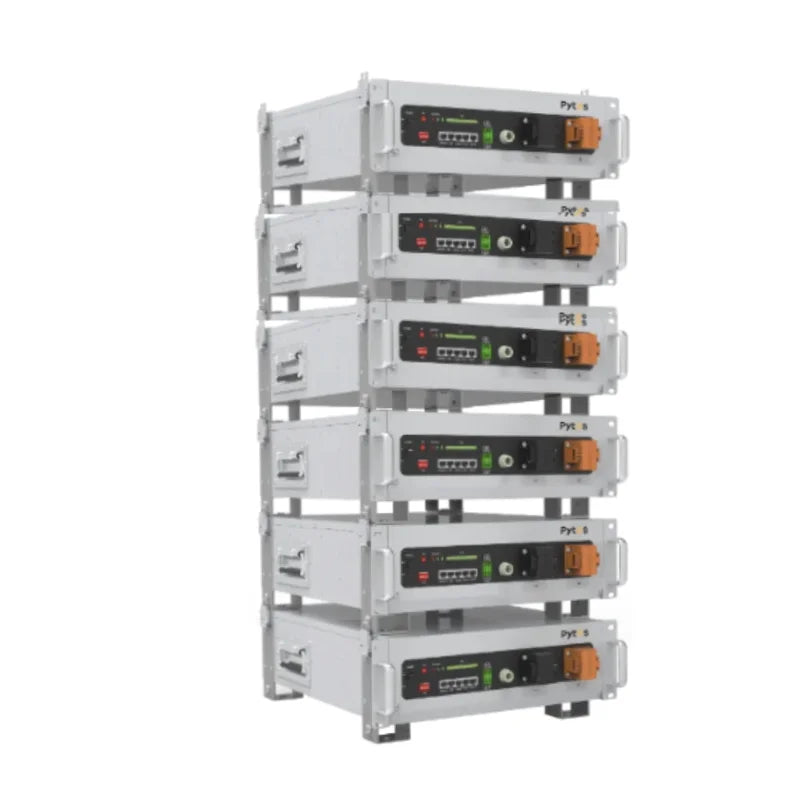

Pytes V5A 30.72kWh LiFePO4 Mega Battery Kit

Pytes V5A 30.72kWh LiFePO4 Mega Battery Kit

£6,423.00 GBP
£6,423.00 GBP
Sale Sold out
In stock
Free UK Delivery

Product Description

Pytes V5A 30.72kWh LiFePO4 Heated Solar Battery Mega Kit

High-Capacity Heated Lithium Storage Package for Large Homes & Off-Grid Solar UK

The Pytes V5A 30.72kWh LiFePO4 Solar Battery Mega Kit is a high-capacity energy storage package engineered for large residential properties, off-grid cabins, workshops, and commercial energy installations. Combining 6 × Pytes V5A 5.12kWh 48V/51.2V lithium storage modules with heavy-duty interlocking floor-stacking brackets, this kit supplies a massive 30.72kWh of raw energy storage (~27.6kWh usable). Built with Tier-1 automotive-grade prismatic cells, integrated self-heating elements for sub-zero charging down to -10°C, and dual-active MCU Battery Management Systems (BMS), it delivers clean, floor-stacked battery storage without needing complex server rack enclosures.

Why choose the Pytes V5A 30.72kWh Battery Mega Kit?

  • Substantial 30.72kWh Energy Capacity: Includes 6 × Pytes V5A 5.12kWh battery modules to easily run high daily domestic consumption, heavy inverter loads, and multi-day off-grid backup setups.

  • Integrated Automatic Internal Heating Elements: Automated thermal heating film in each module ensures safe charging down to -10°C, allowing dependable performance in unheated outbuildings, garages, or outdoor housings.

  • Modular Floor-Stacking Bracket System: Supplied with 6 complete sets of heavy-duty SGCC galvanised steel corner brackets for clean, stable vertical floor stacking that saves space and maintains natural airflow cooling.

  • Tier-1 Automotive Grade Prismatic Cells: Delivers long-term power security with 6,000+ cycles at 90% Depth of Discharge (DoD) for an operational design life of up to 20 years.

  • Universal Inverter Integration: Native CAN-bus and RS485 communication protocols provide seamless plug-and-play linkage with leading hybrid and off-grid inverter systems including Victron Energy, Solis, Deye, SRNE, Luxpower, Growatt, Sunsynk, and SMA.

  • High Expansion Capability: Expandable up to 16 modules per group (81.92kWh) and up to 8 parallel groups (655kWh) using a Pytes Hub.

  • Dedicated UK Technical Support: Direct advice, system sizing guidance, and UK warranty backup from Get Green Energy.

  • Fast UK Delivery: Dispatched directly from Get Green Energy.

Technical Specifications & Kit Contents

Pytes V5A 30.72kWh Solar Battery Mega Kit

Feature Specification
Model / SKU Pytes V5A 30kWh Mega Kit / PY-V5A-30KWH-MEGA
Included Battery Modules 6 × Pytes V5A 5.12kWh 48V / 51.2V 100Ah Batteries
Included Stacking Brackets 6 × Sets of Heavy-Duty Stacking Brackets (24 corner brackets total)
Nominal System Voltage 51.2 V DC
Total Bank Capacity 30.72 kWh (30,720Wh Total / ~27.6 kWh Usable Energy)
Battery Cell Chemistry Tier-1 Automotive Grade Prismatic LiFePO4
Cycle Life 6,000+ Cycles at 90% DoD (25°C, 80% capacity retention)
Integrated Low-Temp Heating Automatic Internal Heating Film per Module (Active during sub-zero charging)
Recommended Charge / Discharge Current 300 A DC Total Bank Current
Max. Continuous Charge / Discharge Current 600 A DC Total Bank Output Capability
Communication Protocols CAN-bus / RS485 (Direct Inverter BMS Link)
Operating Charge Temperature -10°C to +55°C (With Automatic Heating)
Operating Discharge Temperature -20°C to +55°C
Individual Battery Dimensions (W × D × H) 440 mm × 530 mm × 140 mm
Individual Battery Net Weight 44.00 kg (97.00 lbs)
Individual Bracket Set Net Weight 1.44 kg (3.17 lbs)
Total Kit Net Weight (6 Batteries + 6 Bracket Sets) ~272.64 kg (601.07 lbs)
Certifications UL1973, UL9540, UL9540A, UN38.3, CE
Manufacturer Warranty 10 Years

What's Included in the Box?

  • 6 × Pytes V5A 5.12kWh LiFePO4 Solar Batteries

  • 6 × Sets of Heavy-Duty Floor Stacking Brackets

  • 6 × Battery-to-Battery Power Cable Interlinks

  • 6 × Battery-to-Battery BMS Communication Cables

  • 6 × Earthing Cables

Need Help Sizing or Installing Your Off-Grid Solar Storage System?

If you still want an answer based on the website you shared, you can paste the text content here, and I'll adapt it. Alternatively, if you have questions about DC busbar combining, main battery-to-inverter cable gauge selection, DIP switch address configuration, or matching with Victron or Solis inverters, give us a call on 01684 642370 and our technical team at Get Green Energy will help you configure the perfect setup.
