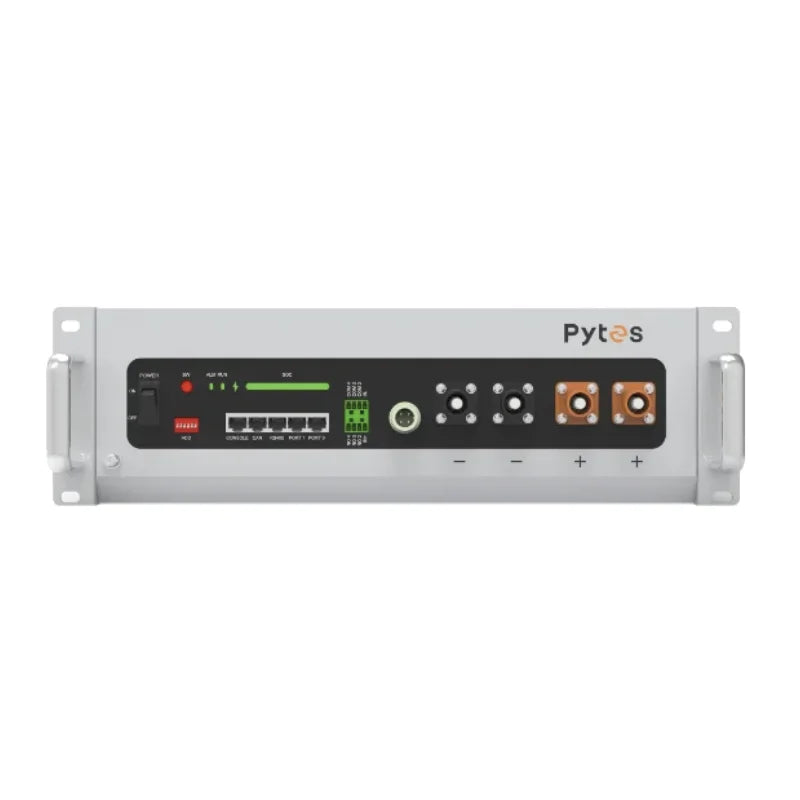

Pytes V5A 5.12kWh LiFePO4 Solar Battery
Product Description
Pytes V5A 5.12kWh 48V LiFePO4 Heated Solar Battery Module
Compact All-Weather Heated Lithium Storage Battery for Home & Off-Grid Solar UK
The Pytes V5A 5.12kWh 48V/51.2V Lithium Iron Phosphate (LiFePO4) solar battery is an advanced energy storage module designed for home solar installations, off-grid systems, and commercial power backup. Built with Tier-1 automotive-grade prismatic cells and a self-developed dual-active MCU Battery Management System (BMS), it delivers market-leading performance, exceptional safety, and a long service life exceeding 6,000 cycles at 90% Depth of Discharge. Featuring integrated internal heating pads for safe sub-zero charging down to -10°C, the V5A is ideal for unheated outbuildings, garages, and UK winter conditions. Its versatile, slimline design supports rack mounting, wall bracket installation, or vertical floor stacking.
Why choose the Pytes V5A 5.12kWh Heated Lithium Solar Battery?
-
Integrated Internal Heating Element: Smart thermal heating film automatically activates during low-temperature charging down to -10°C, ensuring reliable operation in unheated garages, outbuildings, or outdoor enclosures.
-
Tier-1 Automotive Grade Prismatic Cells: Built with high-density prismatic LiFePO4 cells delivering $\ge 6,000\text{ cycles}$ at 90% DoD for an estimated operational life of up to 20 years.
-
Compact & Flexible Installation Options: Slim profile enclosure allows horizontal rack mounting in standard 19-inch cabinets, vertical floor stacking (using optional brackets), or wall mounting.
-
High Scalability (Up to 655kWh): Easily parallel up to 16 modules in a single battery group (81.92kWh) or link up to 8 groups via a Pytes Hub for massive commercial storage setups.
-
Broad Inverter Compatibility: Features pre-configured CAN-bus and RS485 communication protocols for plug-and-play integration with leading inverter brands including Victron Energy, Solis, Deye, SRNE, Luxpower, Growatt, Sunsynk, and SMA.
-
Comprehensive Automated BMS Protections: Dual-MCU architecture safeguards against over-charging, over-discharging, short circuits, high/low temperatures, and cell imbalance.
-
Dedicated UK Technical Support: Direct system guidance, inverter setup advice, and UK warranty backup from Get Green Energy.
-
Fast UK Delivery: Dispatched directly from Get Green Energy.
Technical Specifications & Dimensions
Pytes V5A 5.12kWh LiFePO4 Solar Battery
| Feature | Specification |
| Model / SKU | Pytes V5A 5.12kWh / PY-V5A-51100 |
| Nominal Voltage | 51.2 V DC |
| Nominal Capacity | 100 Ah (5.12 kWh Total / 4.6 kWh Usable Energy) |
| Battery Cell Chemistry | Tier-1 Automotive Grade Prismatic LiFePO4 |
| Cycle Life | 6,000+ cycles, 90% DoD, 25°C |
| Integrated Heating Element | Automatic Low-Temp Heat Film (Active during sub-zero charging) |
| Recommended Charge / Discharge Current | 50 A DC (0.5C) |
| Max. Continuous Charge / Discharge Current | 100 A DC (1.0C) |
| Peak Discharge Current | 120 A DC (15 seconds) |
| Charge Cut-off Voltage | 57.6 V DC |
| Discharge Cut-off Voltage | 44.8 V DC |
| Round-Trip Efficiency | $>95\%$ |
| Communication Protocols | CAN-bus / RS485 (RJ45 Port) |
| Paralleling Capacity | Up to 16 Units per Group (82kWh) / Up to 655kWh with Pytes Hub |
| Operating Charge Temperature | -10°C to +55°C (With Automatic Heating) |
| Operating Discharge Temperature | -20°C to +55°C |
| Dimensions (W × D × H) | 440 mm × 530 mm × 140 mm |
| Net Weight | 44.00 kg (97.00 lbs) |
| Certifications | UL1973, UL9540, UL9540A, UN38.3, CE |
| Manufacturer Warranty | 10 Years |
Need Help Sizing or Installing Your Off-Grid Solar Storage System?
If you have questions about inverter CAN-bus cable matching, floor-stacking brackets, battery-to-inverter main power cables, or sizing a complete home solar storage system, give us a call on 01684 642370 and our technical team will help you configure the perfect setup.
