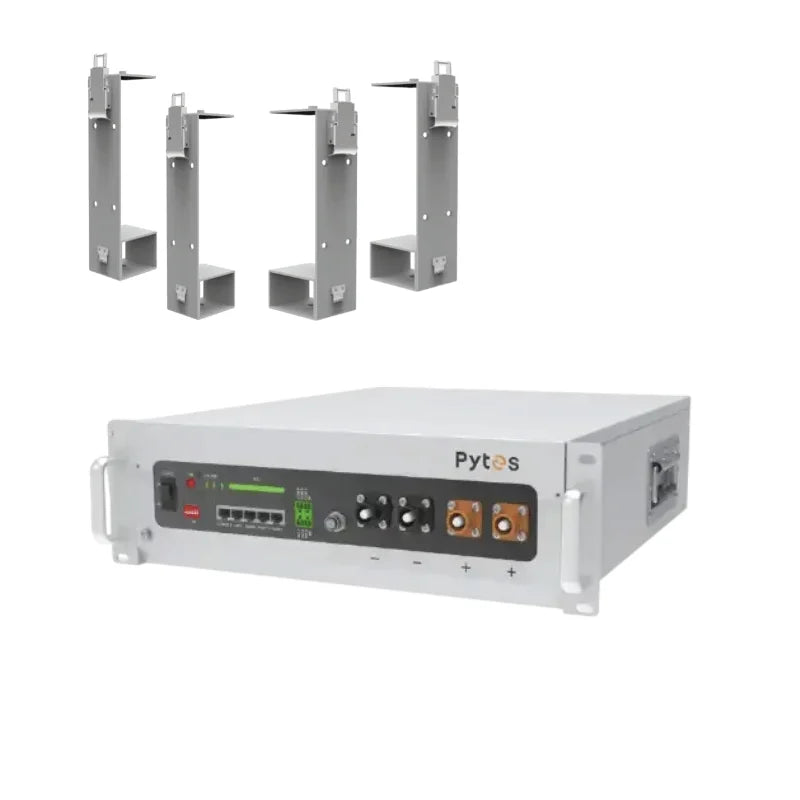

Pytes V5A 5.12kWh LiFePO4 Solar Battery with Stacking Bracket
Product Description
Pytes V5 / V5a 5.12kWh LiFePO4 Solar Battery Stacking Brackets (Set of 4)
Compact Floor-Mount Stacking Solution for Pytes V5 & V5a Lithium Batteries UK
The Pytes V5 / V5a Stacking Bracket Kit is a heavy-duty, space-saving mounting solution designed specifically for secure vertical floor-stacking of Pytes V5 and V5a 5.12kWh LiFePO4 solar storage batteries. Engineered from high-strength galvanised steel (SGCC), this set of 4 interlocking corner brackets elevates and locks battery units safely without requiring a full server rack or heavy-duty wall-mounting hardware. By optimizing floor footprint while maintaining proper ventilation airflow between battery casings, it allows clean, modular expansion of up to 5 to 6 stacked battery modules in residential and off-grid solar energy systems.
Why choose the Pytes V5 / V5a Battery Stacking Bracket Kit?
-
Custom Precision Fit for Pytes V5 & V5a: Designed exclusively to fit the exact corners and mounting contours of Pytes V5 and V5a 48V/51.2V 105Ah LiFePO4 solar batteries.
-
Cost-Effective & Space-Saving Design: Eliminates the need for expensive 19-inch server rack enclosures or wall-mounting setups by utilizing direct vertical floor-stacking.
-
Heavy-Duty Galvanised Steel (SGCC): Constructed from high-strength SGCC sheet steel for long-term structural integrity, heavy load-bearing performance, and high resistance to rust and wear.
-
Modular Stacking Capacity: Supports secure vertical stacking of up to 5 to 6 Pytes battery modules in a single column to maximize available utility room or garage space.
-
Optimized Thermal Ventilation: Maintains a uniform physical gap between stacked battery units to facilitate natural convection cooling and prevent thermal heat buildup.
-
Simple, Tool-Free Alignment: Features interlocking corner alignment tabs and pre-drilled fixing points for quick, stable, and rigid assembly.
-
Dedicated UK Technical Support: Direct advice, system compatibility guidance, and UK warranty backup from Skyenergi.
-
Fast UK Delivery: Dispatched directly from Skyenergi UK stock.
Technical Specifications & Dimensions
Pytes V5 / V5a Battery Stacking Bracket Set
| Feature | Specification |
| Model / SKU | Pytes V5 / V5a Stacking Brackets (PYTES-V5-BRACKET) |
| Battery Compatibility | Pytes V5 & Pytes V5a 5.12kWh 48V / 51.2V LiFePO4 Batteries |
| Set Quantity | 4 Brackets per Set (1 Complete Set Required per Battery Unit) |
| Material | SGCC Galvanised Sheet Steel |
| Max. Vertical Stack Height | Up to 5–6 Batteries (Floor Mount) |
| Individual Bracket Dimensions (W × H × D) | 50 mm × 177.8 mm × 62.2 mm (1.97" × 7.00" × 2.45") |
| Bracket Set Net Weight | 1.44 kg (3.17 lbs) (~0.36 kg per individual bracket) |
| Compatible Battery Net Weight | 44.00 kg (97.00 lbs) (Pytes V5 / V5a Battery Module) |
| Total Weight per Level (Battery + Brackets) | ~45.44 kg (100.17 lbs) |
| Color / Finish | Matte Metallic / Galvanised Steel Finish |
| Mounting Type | Floor-Standing Modular Corner Interlock |
| Manufacturer Warranty | 10 Years |
Need Help Configuring Your Off-Grid Solar Storage System?
If you have questions about battery bank stacking limits, floor load limits, interconnecting cable lengths, DC busbar sizing, or integrating Pytes batteries with Victron or SRNE inverters, give us a call on 01684 642370 and our technical team will help you configure the perfect system.
