Pytes V5A 5.12kWh LiFePO4 Solar Battery with Wall Bracket
Product Description

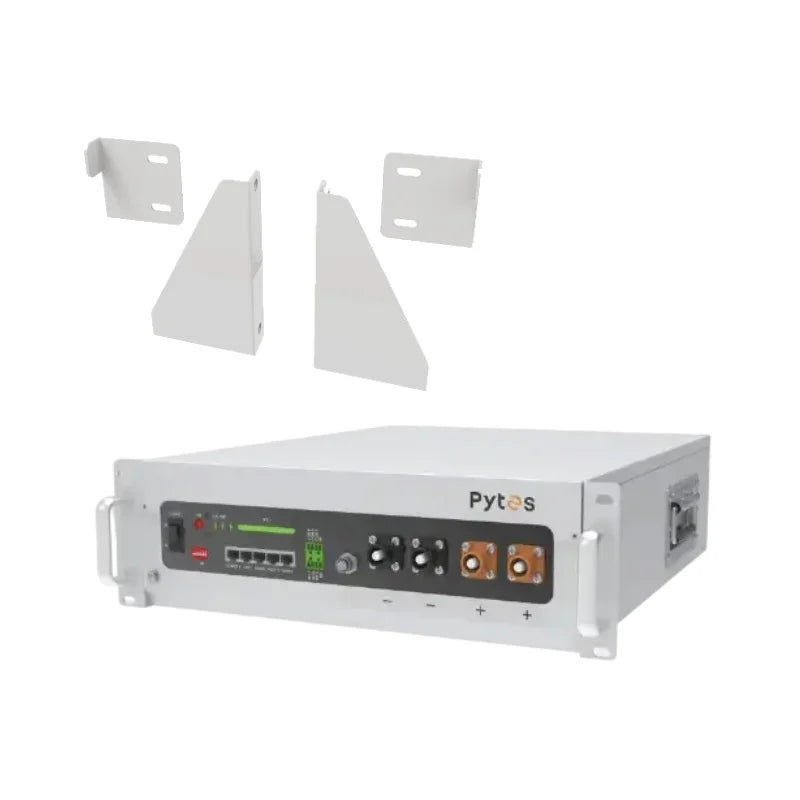

Pytes V5A 5.12kWh LiFePO4 Heated Solar Battery Kit with Wall Bracket
Space-Saving Wall-Mounted Heated Lithium Solar Storage Package UK
The Pytes V5A 5.12kWh LiFePO4 Solar Battery Kit includes the Pytes V5A 5.12kWh 48V/51.2V lithium battery module along with a heavy-duty wall-mounting bracket for a clean, space-saving wall installation. Built for home solar storage, off-grid systems, and commercial backup power, the V5A features Tier-1 automotive-grade prismatic cells, an integrated automatic heating pad for sub-zero charging down to -10°C, and a dual-active MCU Battery Management System (BMS). Mounting the battery directly to brick or solid masonry walls clears floor space while keeping the unit elevated, secure, and well-ventilated in unheated garages, utility rooms, or outbuildings.
Why choose the Pytes V5A 5.12kWh Battery Kit with Wall Bracket?
-
Secure Space-Saving Wall Mounting: Includes a dedicated heavy-duty steel wall bracket engineered to safely support the unit off the ground, keeping floors clear in garages and plant rooms.
-
Integrated Automatic Internal Heating Element: Built-in thermal heating pad automatically activates during low-temperature charging down to -10°C, enabling dependable winter charging in unheated outbuildings or garages.
-
Tier-1 Automotive Grade Prismatic Cells: Delivers exceptional long-term reliability with over 6,000 cycles at 90% Depth of Discharge (DoD) for an operational service life of up to 20 years.
-
Universal Inverter CAN-bus & RS485 Communication: Native plug-and-play communication integration with leading inverter brands including Victron Energy, Solis, Deye, SRNE, Luxpower, Growatt, Sunsynk, and SMA.
-
High Scalability (Up to 655kWh): Modular design allows paralleling up to 16 units in a single group (82kWh) and up to 8 groups via a Pytes Hub for expansive energy storage.
-
Advanced BMS Protection Suite: Dual-MCU BMS safeguards against over-charging, over-discharging, short circuits, high/low temperatures, and cell voltage imbalance.
-
Dedicated UK Support: Direct technical guidance, system sizing assistance, and UK warranty backup from Get Green Energy.
-
Fast UK Delivery: Dispatched directly from Get Green Energy.
Technical Specifications & Kit Contents
Pytes V5A 5.12kWh Solar Battery Kit with Wall Bracket
| Feature | Specification |
| Model / SKU | Pytes V5A 5.12kWh Kit / PY-V5A+WB |
| Included Components | 1 × Pytes V5A 5.12kWh Battery, 1 × Heavy-Duty Wall Mount Bracket |
| Nominal Voltage | 51.2 V DC |
| Nominal Capacity | 100 Ah (5.12 kWh Total / 4.6 kWh Usable Energy) |
| Battery Cell Chemistry | Tier-1 Automotive Grade Prismatic LiFePO4 |
| Cycle Life | $\ge 6,000\text{ Cycles}$ at 90% DoD (25°C, 80% capacity retention) |
| Integrated Low-Temp Heating | Automatic Internal Heating Film (Active during sub-zero charging) |
| Recommended Charge / Discharge Current | 50 A DC (0.5C) |
| Max. Continuous Charge / Discharge Current | 100 A DC (1.0C) |
| Peak Discharge Current | 120 A DC (15 seconds) |
| Communication Protocols | CAN-bus / RS485 (RJ45 Port) |
| Operating Charge Temperature | -10°C to +55°C (With Heating Activation) |
| Operating Discharge Temperature | -20°C to +55°C |
| Battery Dimensions (W × D × H) | 440 mm × 530 mm × 140 mm |
| Battery Net Weight | 44.00 kg (97.00 lbs) |
| Wall Bracket Net Weight | ~3.50 kg (7.70 lbs) |
| Total Kit Net Weight | ~47.50 kg (104.70 lbs) |
| Certifications | UL1973, UL9540, UL9540A, UN38.3, CE |
| Manufacturer Warranty | 10 Years |
What's Included in the Box?
-
1 × Pytes V5A 5.12kWh LiFePO4 Solar Battery
-
1 × Heavy-Duty Steel Wall Mounting Bracket & Fixing Hardware
-
1 × Battery Interconnect / Parallel Cable Set
-
1 × Earthing Cable
Need Help Sizing or Installing Your Off-Grid Solar Storage System?
If you have questions about wall-mounting fixings, battery-to-inverter main power cables, inverter CAN-bus configuration, or system sizing, give us a call on 01684 642370 and our technical team will help you configure the perfect setup.
