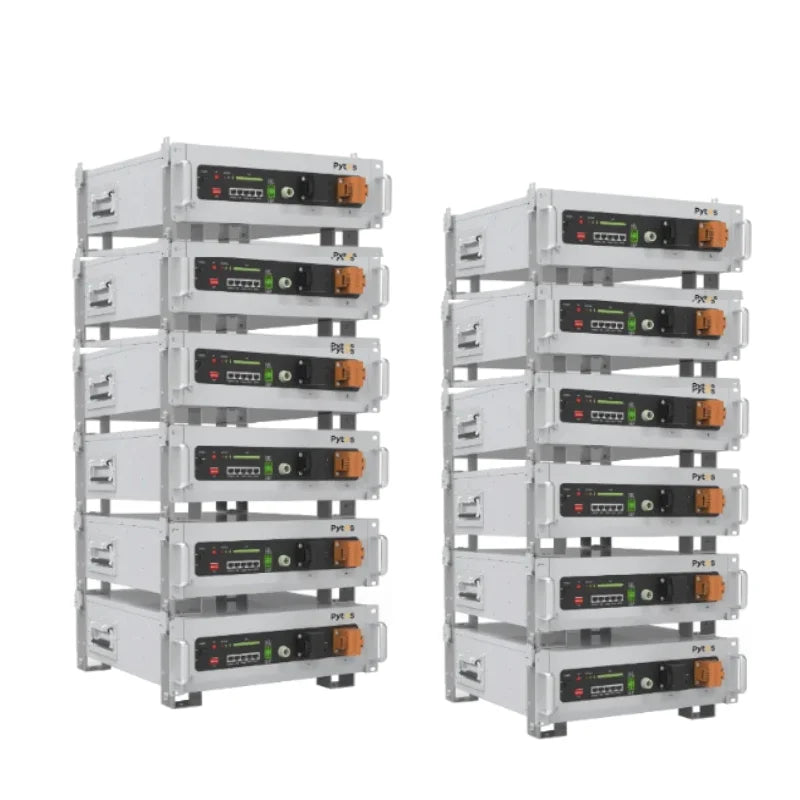

Pytes V5A 61.44kWh LiFePO4 Ultra Battery Kit

Pytes V5A 61.44kWh LiFePO4 Ultra Battery Kit

£12,845.00 GBP
£12,845.00 GBP
Sale Sold out
In stock
Free UK Delivery

Product Description

SEO Suggested Titles:

  • Meta Title / SEO Title: Pytes V5A 61.44kWh Heated LiFePO4 Solar Battery Ultra Kit | Get Green Energy

  • H1 Product Title: Pytes V5A 61.44kWh LiFePO4 Heated Solar Battery Ultra Kit

  • Alternative Title: Pytes V5A 60kWh Commercial Heated Lithium Solar Battery Bank & Stacking Kit

Pytes V5A 61.44kWh LiFePO4 Heated Solar Battery Ultra Kit

High-Capacity Commercial & Large-Scale Residential Heated Lithium Storage Bank UK

The Pytes V5A 61.44kWh LiFePO4 Solar Battery Ultra Kit is a high-capacity energy storage package engineered for large residential estates, agricultural sites, commercial off-grid setups, and business backup installations. Combining 12 × Pytes V5A 5.12kWh 48V/51.2V lithium storage modules with heavy-duty interlocking floor-stacking brackets, this kit supplies a massive 61.44kWh of raw energy storage ($55.2\text{kWh}$ usable). Built with Tier-1 automotive-grade prismatic cells, integrated self-heating elements for sub-zero charging down to -10°C, and dual-active MCU Battery Management Systems (BMS), it delivers clean, floor-stacked battery storage without needing complex server rack enclosures.

Why choose the Pytes V5A 61.44kWh Battery Ultra Kit?

  • Massive 61.44kWh Energy Storage: Includes 12 × Pytes V5A 5.12kWh battery modules to effortlessly handle high daily consumption, heavy three-phase inverter setups, and multi-day off-grid backup.

  • Integrated Automatic Internal Heating Elements: Automated thermal heating film in each module ensures safe charging down to -10°C, allowing dependable performance in unheated outbuildings, plant rooms, or outdoor housings.

  • Modular Floor-Stacking Bracket System: Supplied with 12 complete sets of heavy-duty SGCC galvanised steel corner brackets for clean, stable vertical floor stacking that maximizes space and maintains natural airflow cooling.

  • Tier-1 Automotive Grade Prismatic Cells: Delivers long-term power security with $\ge 6,000\text{ cycles}$ at 90% Depth of Discharge (DoD) for up to 20 years of operational design life.

  • Universal Inverter Integration: Native CAN-bus and RS485 communication protocols provide seamless plug-and-play linkage with leading hybrid and off-grid inverter systems including Victron Energy, Solis, Deye, SRNE, Luxpower, Growatt, Sunsynk, and SMA.

  • High Expansion Capability: Expandable up to 16 modules per group ($81.92\text{kWh}$) and up to 8 parallel groups ($655\text{kWh}$) using a Pytes Hub.

  • Dedicated UK Technical Support: Direct advice, system sizing guidance, and UK warranty backup from Get Green Energy.

  • Fast UK Delivery: Dispatched directly from Get Green Energy.

Technical Specifications & Kit Contents

Pytes V5A 61.44kWh Solar Battery Ultra Kit

Feature Specification
Model / SKU Pytes V5A 60kWh Ultra Kit / PY-V5A-60KWH-ULTRA
Included Battery Modules 12 × Pytes V5A 5.12kWh 48V / 51.2V 100Ah Batteries
Included Stacking Brackets 12 × Sets of Heavy-Duty Stacking Brackets (48 corner brackets total)
Nominal System Voltage 51.2 V DC
Total Bank Capacity 61.44 kWh ($61,440\text{Wh}$ Total / ~55.2 kWh Usable Energy)
Battery Cell Chemistry Tier-1 Automotive Grade Prismatic LiFePO4
Cycle Life 6,000+ cycles, 90% DoD, 25°C
Integrated Low-Temp Heating Automatic Internal Heating Film per Module (Active during sub-zero charging)
Recommended Charge / Discharge Current 600 A DC Total Bank Current
Max. Continuous Charge / Discharge Current 1,200 A DC Total Bank Output Capability
Communication Protocols CAN-bus / RS485 (Direct Inverter BMS Link)
Operating Charge Temperature -10°C to +55°C (With Automatic Heating)
Operating Discharge Temperature -20°C to +55°C
Individual Battery Dimensions (W × D × H) 440 mm × 530 mm × 140 mm
Individual Battery Net Weight 44.00 kg (97.00 lbs)
Individual Bracket Set Net Weight 1.44 kg (3.17 lbs)
Total Kit Net Weight (12 Batteries + 12 Bracket Sets) ~545.28 kg (1,202.14 lbs)
Certifications UL1973, UL9540, UL9540A, UN38.3, CE
Manufacturer Warranty 10 Years

What's Included in the Box?

  • 12 × Pytes V5A 5.12kWh LiFePO4 Solar Batteries

  • 12 × Sets of Heavy-Duty Floor Stacking Brackets

  • 12 × Battery-to-Battery Power Cable Interlinks

  • 12 × Battery-to-Battery BMS Communication Cables

  • 12 × Earthing Cables

Need Help Sizing or Installing Your Commercial Solar Storage System?

If you have questions about multi-cabinet DC busbar combining, main battery-to-inverter cable gauge selection, DIP switch address configuration, or matching with three-phase Victron Quattro or Solis commercial inverters, give us a call on 01684 642370 and our technical team will help you configure the perfect setup.
