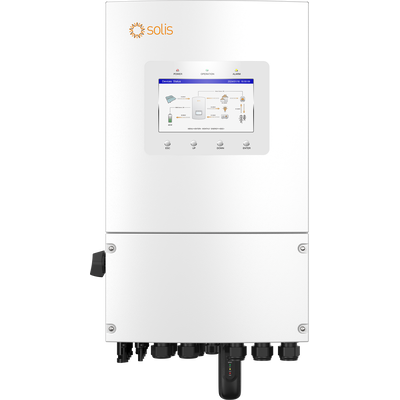

Solis S6 10kW Single Phase Hybrid Inverter LV
Product Description
Solis S6 10kW Single Phase Hybrid Inverter LV
Single Phase Hybrid Solar Inverter UK
The Solis S6 10kW single-phase hybrid inverter (S6-EH1P10K-L-PLUS) is an ultra-high-capacity, low-voltage energy storage inverter designed for large residential properties and commercial setups. Featuring dual MPPT trackers supporting high PV input currents (up to 42A per MPPT / 21A per string), an exceptionally high 210A battery charge and discharge capacity, and rapid sub-10ms UPS-level backup switching, it offers uncompromised power generation and reliable energy resilience for high-demand UK energy systems.
Why choose the Solis S6 10kW Hybrid Inverter?
-
Ultra-High Solar DC Input: Supports up to 16,000W (160% PV oversizing) maximum DC input power across 2 MPPTs with 4 string inputs (42A per MPPT).
-
High-Current Battery Charge/Discharge: Up to 210A continuous battery charging and discharging current to quickly replenish low-voltage battery banks and effortlessly cover heavy household loads.
-
Instant UPS Backup Power: Provides uninterruptible power supply (UPS) switching in under 10ms during power cuts, with 200% off-grid peak overload protection for 10 seconds to handle initial motor surges.
-
Low Voltage Battery Compatibility: Fully compatible with standard 48V/51.2V (40V–60V) low-voltage LiFePO4 batteries from leading manufacturers.
-
Off-Grid & Generator Support: Features a dedicated generator input port with automatic generator control (AGS) and smart load management.
-
Smart Tariff & Peak Shaving: Tailored for UK dynamic time-of-use tariffs (such as Octopus Energy) with automated peak shaving and off-peak charging schedules.
-
IP66 Outdoor Rated: Heavy-duty, fan-cooled IP66 enclosure built for long-term indoor or harsh outdoor wall installations, backed by a 5-year warranty (extendable to 10 years).
-
Dedicated UK Support & National RMA Coverage: Direct access to Get Green Energy's UK-based technical support team with streamlined UK warranty backup and national RMA exchange services.
-
Fast UK Delivery: Dispatched directly from Get Green Energy.
Technical Specifications & Dimensions
Solis S6 10kW Hybrid Inverter (S6-EH1P10K-L-PLUS)
| Feature | Specification |
| Max. Recommended PV Array Power | 16,000 Wp (160% PV Oversizing) |
| Max. PV Input Voltage | 500 V |
| MPPT Voltage Range / Start Voltage | 90 V to 435 V / 90 V |
| MPPT Trackers / Max Strings per MPPT | 2 MPPTs / 2 Strings per MPPT (4 inputs total) |
| Max. Input Current per MPPT | 42 A / 42 A (21 A per string connection) |
| Max. Short Circuit Current per MPPT | 48 A / 48 A |
| Nominal AC Output Power | 10,000 W / 10,000 VA |
| Nominal AC Grid Voltage / Frequency | 220 V / 230 V (187V–253V) / 50 Hz / 60 Hz |
| Max. AC Grid Output Current | 45.5 A (at 220V) / 43.5 A (at 230V) |
| Max. AC Passthrough Current | 65 A |
| Nominal Battery Voltage | 48 V / 51.2 V (Li-ion / Lead-Acid) |
| Battery Voltage Range | 40 V to 60 V |
| Max. Charge / Discharge Current | 210 A / 210 A |
| UPS Backup Switching Time | < 10 ms |
| Max. Efficiency / Euro Efficiency | 96.2% / 96.1% |
| Protection Degree | IP66 (Outdoor rated) |
| Operating Ambient Temperature | -25°C to +60°C |
| Communication / Connectivity | Wi-Fi / LAN / GPRS / Bluetooth / RS485 / CAN |
| Dimensions (W × H × D) | 335 mm × 560 mm × 253 mm |
| Device Weight | 23.8 kg |
Need Help Sizing or Installing Your Hybrid Solar Setup?
If you have questions about battery compatibility, PV array layout, or grid connections, give us a call on 01684 642370 and our technical team will help you configure the perfect system.
