Solis S6 8kW Single Phase Hybrid Inverter LV
Product Description

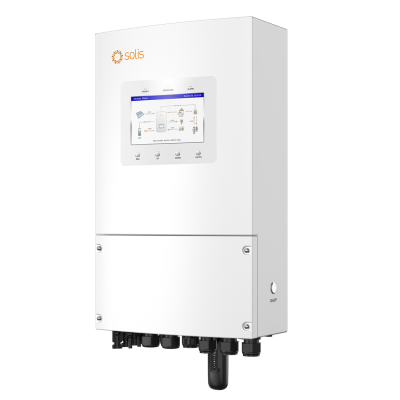

Solis S6 8kW Single Phase Hybrid Inverter LV
Single Phase Hybrid Solar Inverter UK
The Solis S6 8kW single-phase hybrid inverter (S6-EH1P8K-L-DC) is a high-capacity, low-voltage energy storage solution engineered for large domestic properties and commercial installations. Featuring dual MPPT trackers with dual string capacity on each, an integrated 190A high-current battery charge/discharge capability, and rapid UPS-level backup switching (＜4ms), this inverter ensures maximum solar yield, seamless power security, and full grid compliance for UK energy setups.
Why choose the Solis S6 8kW Hybrid Inverter?
-
Ultra-High Solar Input & Dual MPPT: Supports up to 12,000W maximum PV array input across 2 MPPTs (with 2 string connections per MPPT) and a wide MPPT voltage range (90V–520V).
-
Rapid High-Current Battery Charge/Discharge: 190A maximum charge and discharge current allows fast battery replenishment and effortlessly supports high-draw domestic and commercial loads.
-
Instant UPS Backup Switching: Delivers uninterruptible power supply (UPS) level switching in under 4ms during power outages, ensuring critical circuits and sensitive electronics remain powered without interruption.
-
Low Voltage Battery Compatibility: Works with standard 48V/51.2V low-voltage LiFePO4 batteries from leading manufacturers (including Solis, Pylontech, and Fox ESS).
-
Smart Grid & Tariff Optimization: Supports peak shaving, self-consumption optimization, and time-of-use charging schedules compatible with dynamic UK energy tariffs (such as Octopus Energy).
-
Generator Integration: Includes dedicated generator input port with automatic generator control (AGS) support for off-grid and backup installations.
-
IP66 Outdoor Rated: Heavy-duty, fanless natural cooling enclosure built for indoor or outdoor wall-mount installations, backed by a 5-year warranty (extendable to 10 years).
-
Dedicated UK Support & National RMA Coverage: Direct access to Get Green Energy's UK-based technical team with streamlined UK warranty support and national RMA exchange service.
-
Fast UK Delivery: Directly dispatched from Get Green Energy.
Technical Specifications & Dimensions
Solis S6 8kW Hybrid Inverter (S6-EH1P8K-L-DC)
| Feature | Specification |
| Max. PV Array Input Power | 12,000 W |
| Max. PV Input Voltage | 600 V |
| MPPT Voltage Range / Start Voltage | 90 V to 520 V / 90 V |
| MPPT Trackers / Max Strings per MPPT | 2 MPPTs / 2 Strings per MPPT (4 inputs total) |
| Max. Input Current per MPPT | 32 A / 32 A (Short-circuit current: 48 A / 48 A) |
| Nominal AC Output Power | 8,000 W / 8,000 VA |
| Max. Apparent AC Power | 8,800 VA |
| Nominal AC Voltage / Frequency | 220 V / 230 V / 240 V (180V–270V) / 50 Hz / 60 Hz |
| Max. AC Output Current | 36.4 A (38.3 A max.) |
| Nominal Battery Voltage | 48 V / 51.2 V (LiFePO4 / Lead-Acid) |
| Battery Voltage Range | 40 V to 60 V |
| Max. Charge / Discharge Current | 190 A / 190 A |
| UPS Backup Switching Time | < 4 ms |
| Max. Efficiency | 97.5% (EU Efficiency: 96.2%) |
| Protection Degree | IP66 (Outdoor rated) |
| Operating Temperature | -25°C to +60°C |
| Communication / Connectivity | Wi-Fi / LAN / GPRS / Bluetooth / RS485 / CAN |
| Dimensions (W × H × D) | 535 mm × 455 mm × 218 mm |
| Device Weight | 27.5 kg |
Need Help Sizing or Installing Your Hybrid Solar Setup?
If you have questions about battery compatibility, PV array layout, or grid connections, give us a call on 01684 642370 and our technical team will help you configure the perfect system.
