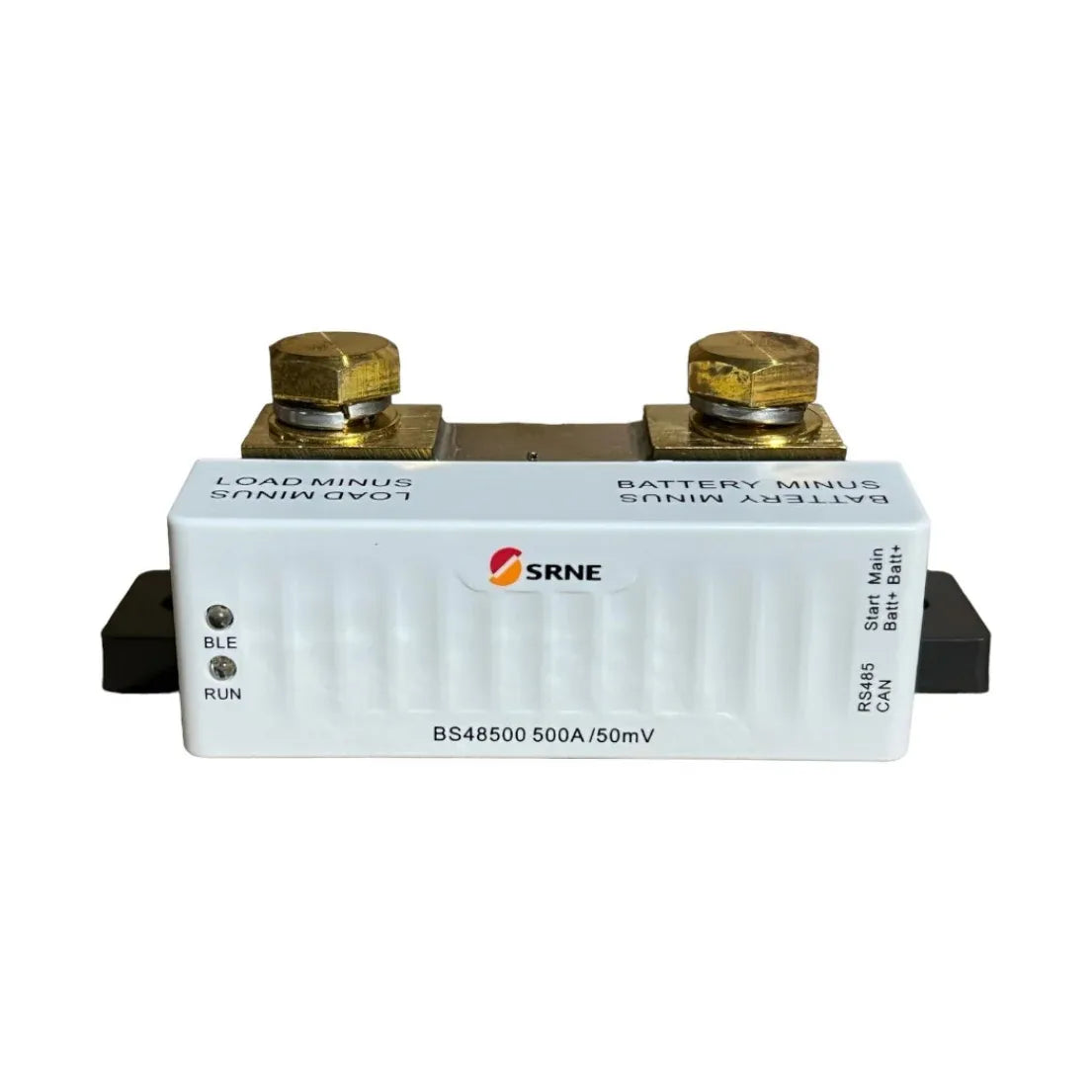

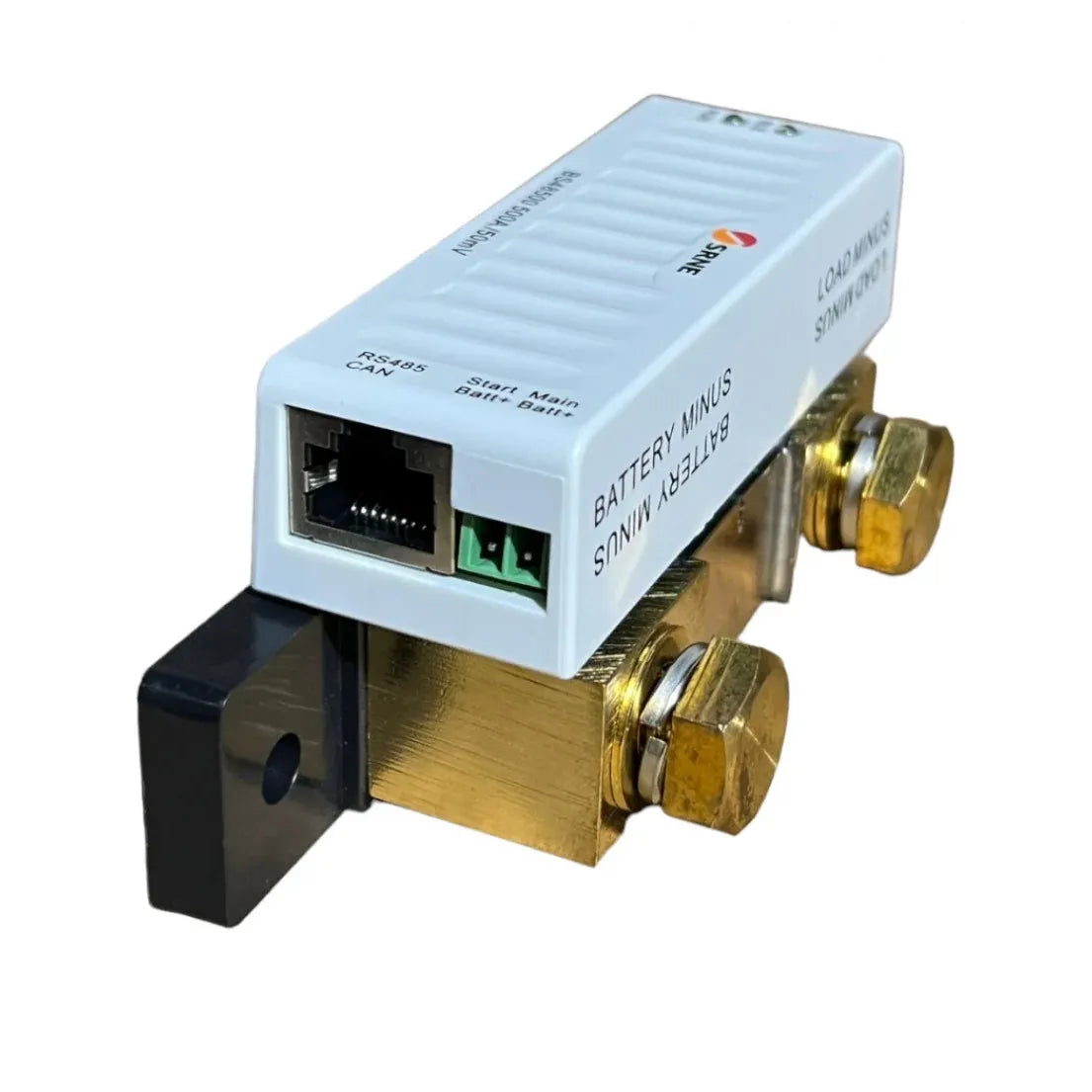

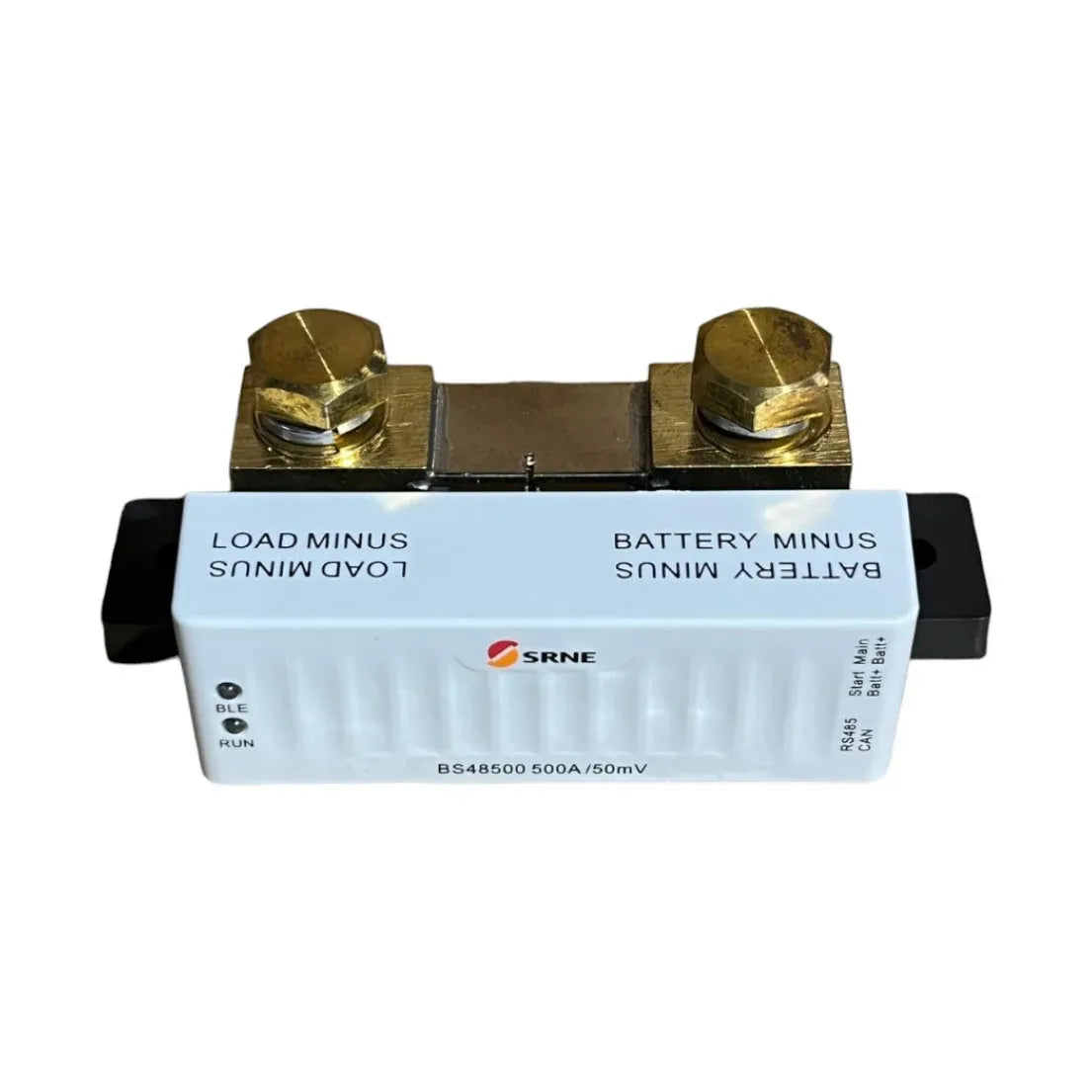

SRNE BS48500 Smart Battery Monitor with 500A Shunt (12V/24V/36V/48V)

Smart Off-Grid & Marine Battery State-of-Charge Monitor UK

The SRNE BS48500 (BS-48V-500A) is a high-precision smart battery monitor engineered to deliver real-time visibility and historical data tracking for off-grid power systems. Equipped with a heavy-duty 500A brass current sampling shunt, it accurately calculates State-of-Charge (SoC %), remaining capacity (Ah), voltage, current draw, power consumption, and estimated time-to-empty/full across multi-voltage battery banks (12V, 24V, 36V, and 48V). Featuring built-in Bluetooth, RS485, and CANbus (RV-C) communication, it integrates seamlessly with the SRNE mobile app and central displays (such as the SRNE RMA7 and SR-CU2) for ultimate system monitoring in campervans, motorhomes, marine vessels, and residential storage setups.

Why choose the SRNE BS48500 Smart Battery Monitor?

  • High-Precision 500A Continuous Shunt: Measures continuous charge and discharge currents up to 500A with high sampling accuracy to keep track of heavy inverter loads and high-output solar arrays.

  • Wide 12V to 48V System Compatibility: Multi-voltage auto-sensing capability supports 12V, 24V, 36V, and 48V battery systems with an operational supply voltage range of 6.5V to 75V DC.

  • Universal Chemistry Support: Pre-programmed algorithms for Lithium (LiFePO4), Sealed Lead-Acid, Gel, AGM, and Flooded battery chemistries across bank capacities from 1Ah to 9,999Ah.

  • 60-Day Historical Data Logging: Internal memory stores up to 60 days of historical energy usage, charge cycles, and performance trends accessible via the SRNE monitoring app.

  • Triple Communication Suite (Bluetooth, RS485 & CANbus): Integrated Bluetooth alongside RS485 and CANbus (RV-C) protocol support enables effortless synchronization with the SRNE ecosystem and third-party RV/marine networks.

  • Visual & Audible Threshold Alarms: Configurable alarms for low voltage, high voltage, low SoC state, and over-current conditions to prevent catastrophic battery deep-discharge.

  • Dedicated UK Support & National RMA Coverage: Direct access to Get Green Energy's UK-based technical support team with streamlined warranty backup and national RMA exchange services.

  • Fast UK Delivery: Dispatched directly from Get Green Energy.

Technical Specifications & Dimensions

SRNE BS48500 Battery Monitor (BS-48V-500A)

Feature Specification
Model / SKU SRNE BS48500 / BS-48V-500A
Supported Battery System Voltages 12 V / 24 V / 36 V / 48 V DC
Supply Voltage Range 6.5 V to 75 V DC
Max. Continuous Charge/Discharge Current 500 A DC
Supported Battery Capacity Range 1 Ah to 9,999 Ah
Battery Chemistry Support Lithium (LiFePO4), Lead-Acid, Gel, AGM, Open/Flooded
Measured Parameters Voltage (V), Current (A), Power (W), Capacity (Ah), SoC (%), Time-to-Empty/Full
Data Logging Memory 60 Days Historical Records
Communication Protocols Built-in Bluetooth, RS485, CANbus (RV-C)
Protection Rating IP21 (Indoor / Protected Enclosure Installation)
Operating Temperature Range -35°C to +65°C
External Display Integration SRNE RMA7 Touchscreen & SR-CU2 Control Unit
Manufacturer Warranty 2 Years

Need Help Sizing or Installing Your Battery Monitoring Setup?

If you have questions about shunt wiring placement, high-current busbar fusing, or Bluetooth app setup for your leisure battery system, give us a call on 01684 642370 and our technical team will help you configure the perfect setup.
