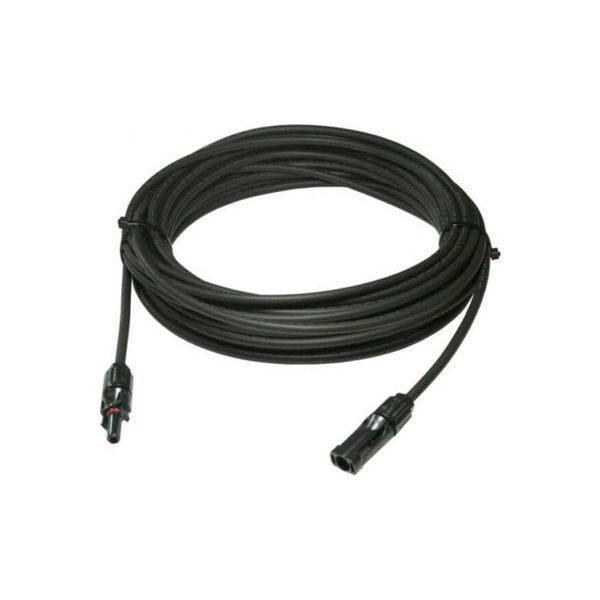

The Victron Solar Cable MC4-M-F PV-St01 is a high-quality 6mm² (AWG 10) solar cable designed for efficient and reliable power transmission in solar energy systems. This 10-metre cable comes pre-terminated with MC4 male and female connectors, ensuring a secure, weatherproof connection between solar panels and charge controllers.
Key Features:
-
Pre-Assembled MC4 Connectors – Allows for quick and easy installation without the need for additional crimping.
-
High Conductivity – 6mm² cross-section ensures minimal power loss and maximum efficiency.
-
UV and Weather Resistant – Durable insulation protects against harsh environmental conditions.
-
Flexible and Durable – Designed for long-term outdoor use in solar applications.
-
Compatible with Victron and Other MC4 Systems – Seamlessly integrates with standard MC4-compatible components.
Technical Specifications:
-
Cable Type: Solar PV Cable
-
Connector Type: MC4 Male-Female (PV-St01)
-
Cable Cross-Section: 6mm² (AWG 10)
-
Length: 10 metres
-
Voltage Rating: 1000V DC
-
Current Rating: Up to 55A
-
Insulation Material: UV-resistant XLPE
-
Operating Temperature Range: -40°C to +90°C
-
Standards Compliance: TÜV Certified, IEC 62852
Ideal for solar installations in residential, commercial, and off-grid systems, this Victron MC4 solar cable ensures a safe and efficient connection between solar modules and electrical components.
