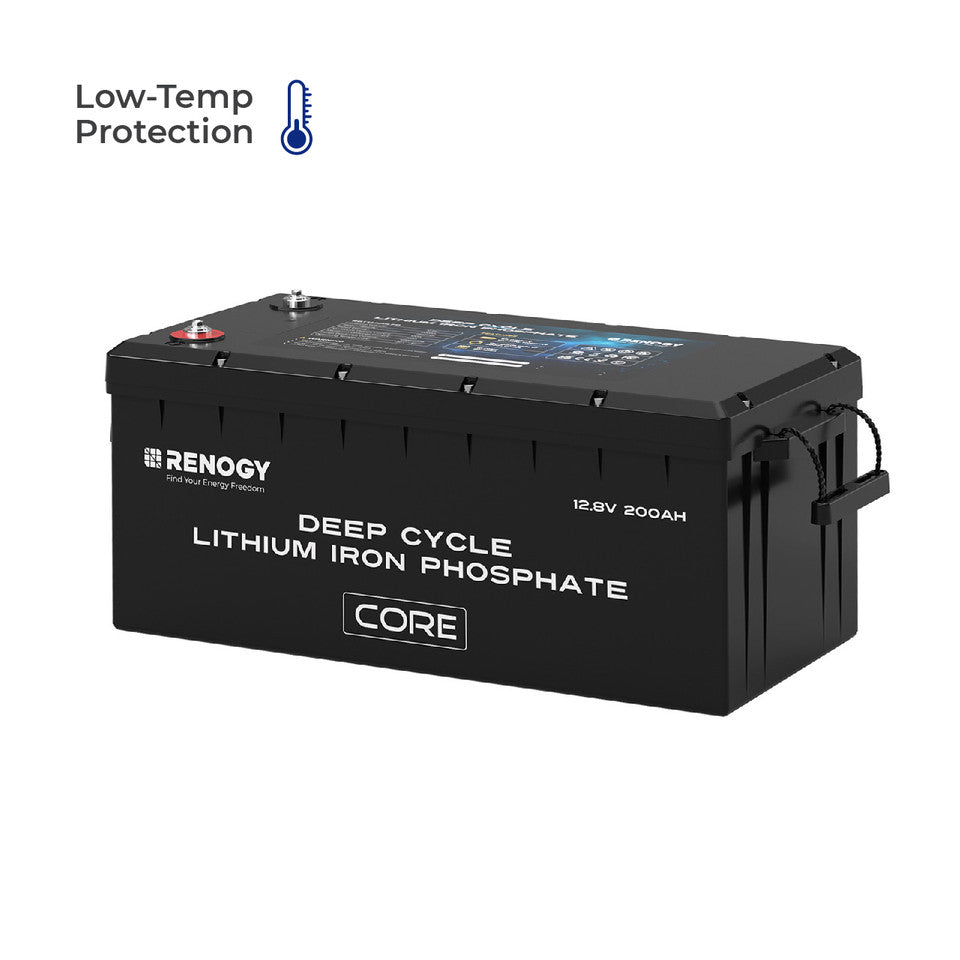

Meet Renogy 12V 200Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without any compatibility issues.
With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer.
Off-grid living can be challenging, but the Renogy 12V 200Ah Core Battery offers a true 200A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.
Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 200Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.
-Provides up to 6% more power than rated capacity for better performance.
-Delivers 400A for 10 seconds, starting heavy loads with ease.
-Supports series, parallel, or both connections for flexibility.
-Features a 200A BMS with low-temp cut-off for safety and
The Specs
| Renogy 12V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery</span >
|
| Electrical Specifications |
Temperature Parameters |
| Rated Capacity (0.5C, 25°C) |
200AH |
Operation Temperature Range |
Charge: 32°F to 131°F / 0°C to 55°C |
| Nominal Voltage |
12.8V |
|
Discharge: -4°F to 140°F / -20°C to 60°C |
| Energy |
2560Wh |
Storage Temperature Range |
-13°F to 149°F / -25°C to 65°C |
| Cycle Life (0.5C/1C, 25℃) |
5000 Cycles (80% DOD, 80% EOL) |
Operation Relative Humidity |
10% to 95% |
| Charging Parameters |
Mechanical Specifications |
| Charge Voltage |
14.4V |
Dimension (L x W x H) |
20.55 x 9.45 x 8.62 in / 522 x 240 x 219 mm |
| Maximum Continuous Charge Current |
100A |
Weight |
47.3 lbs. / 21.45 kg |
| Discharging Parameters |
Terminal Bolt Size |
M8 x 1.25 x 15 mm |
| Maximum Continuous Discharge Current |
200A |
Protection Rating |
IP65 |
| Peak Discharge Current |
400A@10s |
Warranty |
| Certifications |
5-year material warranty |
| MSDS, UN38.3, FCC, PSE, CE, UKCA, IEC62619 |
YES |
|
