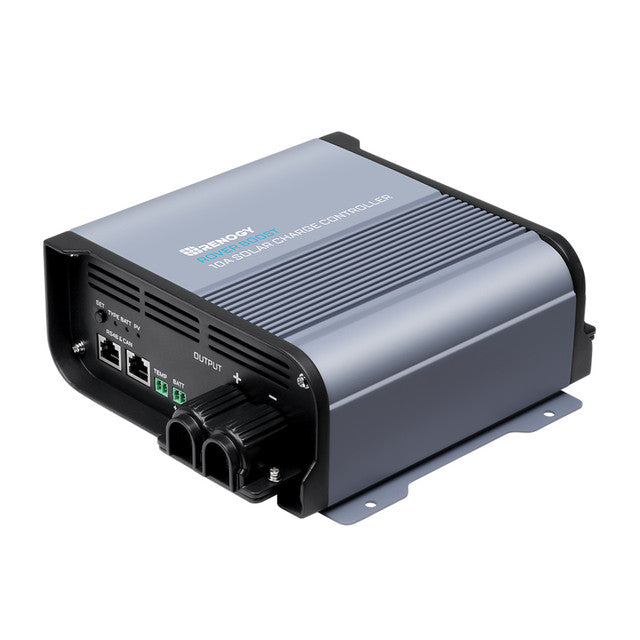

Renogy CORE Rover Boost 10A MPPT Solar Charge Controller

The Rover Boost Controller is a 10 Amp boosting Maximum PowerPoint Tracking (MPPT) charge controller engineered to charge a 36V or 48V battery bank with just one to two 36-cell solar panels. This powerful controller is the perfect fit for charging batteries in places with limited space for solar, such as a golf cart. The Rover Boost features 4-stage battery charging (Bulk, Boost, Float, and Equalization) with charging presets for AGM/Sealed, Gel, Flooded, and Lithium batteries. It also supports the latest Bluetooth software, giving you the option to add a Bluetooth module for remote monitoring and setting adjustments. This handy controller has numerous battery bank, controller, and solar electronic protections for peace of mind, making it an optimized system you can trust.



36V/48V Rover Boost 10A MPPT Solar Charge Controller
Rated System Voltage: 36V / 48V, Auto Recognition (Non-Lithium)	Rated Charge Current: 10A
Battery Operating Range: 30 ~ 65 VDC	Battery Types : AGM/Sealed, GEL, FLOODED, LFP, USER*
Rated Max Charge Power: PV Input Power: 500W/36V; 650W/48V； Charging Power: 450W/36V; 600W/48V	Max Input Current (short-circuit, Isc) : 35A
Power Limiting Protection: Up to 600W/36V; 800W/48V	Solar Input Voltage Range (VOC): 15 ~ 25VDC / 36V; 15 ~ 40VDC / 48V
MPPT Voltage Range:15 ~ 25VDC / 36V; 15 ~ 40VDC / 48V	MPPT Tracking Efficiency: ≥ 99%
MPPT Charge Conversion Efficiency: ≥ 90%	Idle Consumption: ≤ 2W
Operating Temperature Range:-31°F ~ 149°F / -35℃ ~ + 65℃	Storage Temperature Range: -40°F ~ 176°F / -40℃ ~ + 80℃
Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium);   0mV / ℃ / 2V; no compensation (Lithium)	Grounding Type: Common Negative Lug (M3)
Enclosure Rating: IP20	Humidity: 0-95% RH
Dimensions (L x W x D): 8.8 x 7.6 x 2.9 inch / 224 x 192 x 74.5mm	Weight: 2.65 lbs / 1.2 Kg
Terminal Range: 16 ~ 2 AWG	Terminal Size: M6-2x1
Communication: RS485 / CAN bus signal	Certification: CE, FCC Part 15 Class B, RoHS



Warranty Information

Charge Controller

2-year material warranty



Certification
