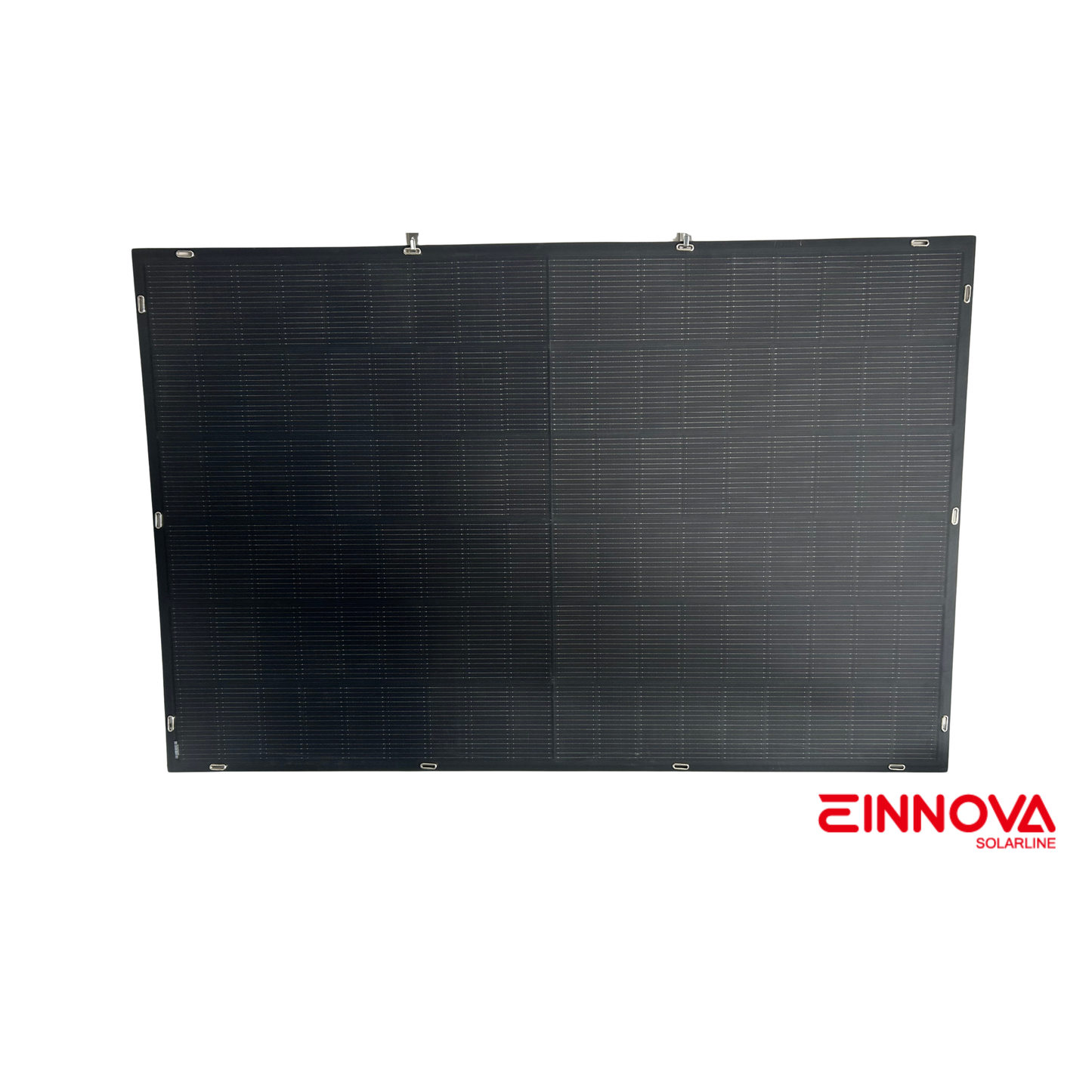

EINNOVA 12v 430w Lightweight Semi Flex Solar Panel

Unlock a new dimension of solar power with the Einnova Solarline 430W Semi-Flexible Solar Module. Designed for versatility and high performance, this lightweight and ultra-thin solar panel is perfect for a wide range of low-bearing capacity projects, curved surfaces, and applications where traditional rigid panels simply won't fit.

Featuring advanced TOPCon solar cells and innovative BI-FACIAL technology, this module maximizes energy harvesting from both sides, delivering exceptional efficiency up to 21.20%. Its flexible design with a bending radius up to 37° ensures a perfect fit for various structures, making installation convenient and cost-effective.

Key Features:

• Lightweight and Thin: Weighing only 6.8kg ($\pm 3\%$) with a thickness of just 3mm, it's ideal for projects sensitive to weight or space.

• Highly Flexible: Ultra-thin silicon wafers encapsulated in advanced organic polymers allow for a bending radius of up to 37°, adapting perfectly to curved surfaces.

• BI-FACIAL Technology: Achieves double-sided power generation efficiency and gain, increasing overall energy yield.

• Customizable: Designs can be tailored to meet specific application requirements.

• Convenient Installation: Easy to install and transport, reducing overall project costs.

• TOPCon Solar Cell Technology: Ensures high efficiency for superior power output.

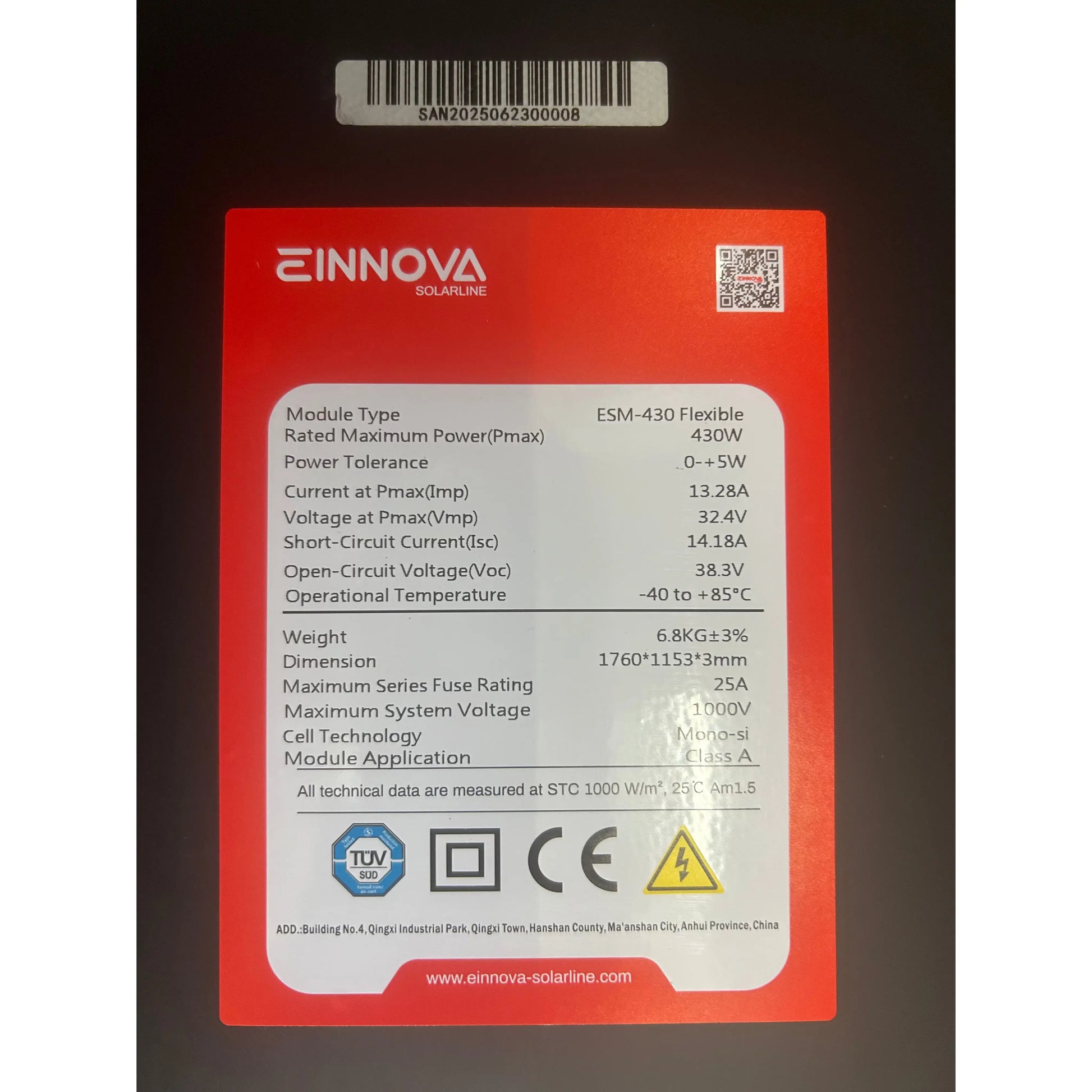

Technical Specifications:

• Model: ESM-430 Semi-Flexible

• Pmax: 430W

• Voc: 38.3V

• Isc: 14.18A

• Vmpp: 32.4V

• Impp: 13.28A

• Weight: $6.8kg\pm 3\%$


• Product size: $1760\times 1153\times 3mm$


• Cell Size: $182\times 91.875mm$ N-TOPCon

• Solar Cell QTY: $108pcs(6\times 18)$


• Cable: 1100mm (can be customized)

• Maximum System Voltage: 1000V

Warranty Terms:

• Fixed and Vertical Installation (e.g., balconies and walls):

  • 10-year warranty covering workmanship and materials.

  • 25-year warranty guaranteeing a minimum power output of 89.4%.

• Use in Dynamic and Vibrating Conditions (e.g., outdoor activities such as camping or fishing):

  • 2-year warranty covering materials and workmanship.

• Installation on Flat or Steep Roofs Exposed to Severe Weather or Hail Damage:

  • Not recommended, and no warranty is provided for such scenarios.

Qualifications & Certifications:

• ISO 9001: 2015 Quality Management

• ISO14001: 2015 Environment
