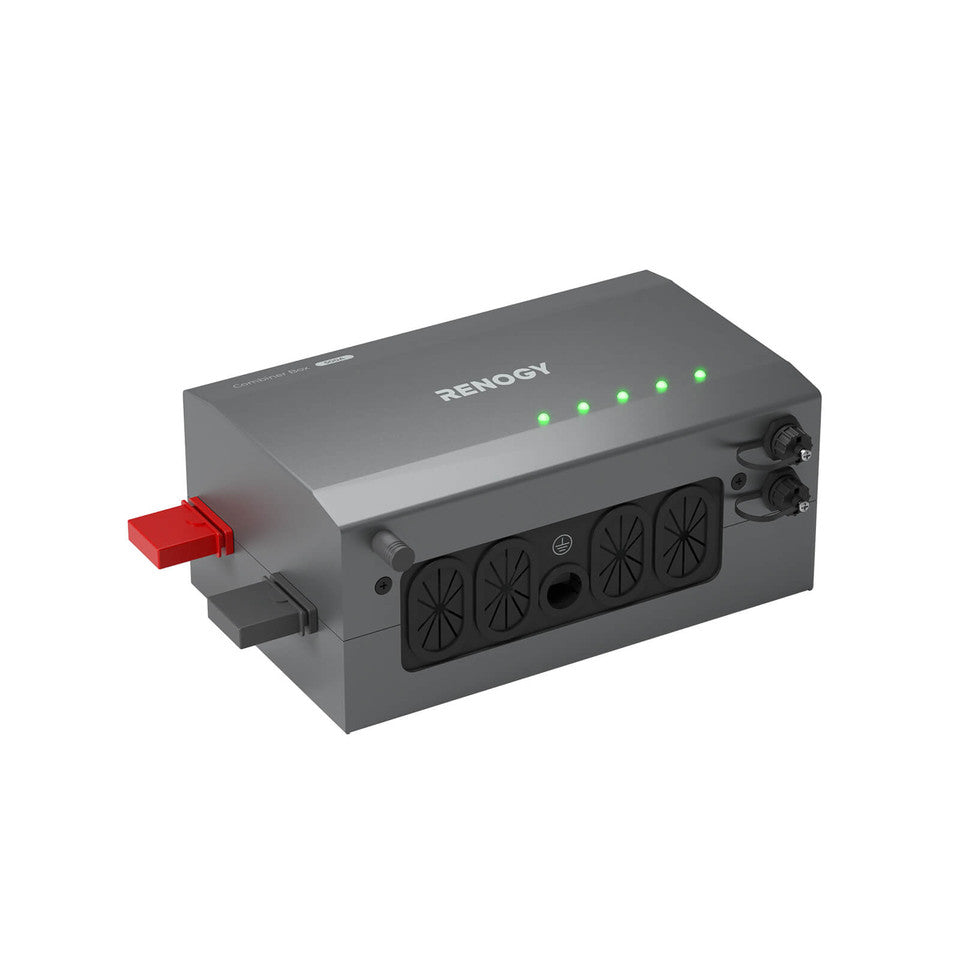

Renogy 500A Combiner Box (Communication Version), 12V-48V Smart Battery Distribution Hub with Bluetooth and CANbus

The Renogy 500A Combiner Box (Communication Version) is a heavy-duty, space-efficient power distribution hub designed for sophisticated electrical systems in RVs, boats, and off-grid cabins. Acting as a central junction, it consolidates multiple high-power connections—such as batteries, inverters, and charge controllers—into one secure, fused location.

This "Communication Version" (Model: REC500CB-98CM) is distinguished by its built-in Bluetooth and CANbus ports, allowing it to integrate seamlessly into the Renogy ecosystem for real-time monitoring and smart power management through the Renogy DC Home app.

Key Features

• High-Current 500A Busbars: Features two heavy-duty tinned copper busbars (positive and negative) capable of handling a continuous 500A current, ideal for systems with large 3000W+ inverters.

• Integrated Communication: Equipped with built-in Bluetooth and CANbus/Modbus ports, enabling users to monitor system performance and circuit status remotely via smartphone or a Renogy ONE gateway.

• Streamlined Wiring: Consolidates all main electrical connections into a single location, significantly reducing cable clutter and simplifying the troubleshooting process.

• Enhanced Safety & Protection: Designed for use with high-security fuses (such as MRBF or ANL) to protect each individual circuit from overcurrent and short circuits.

• LED Status Indicators: Features on-board LED lights that accurately indicate the electrical connection status of each port, aiding in rapid visual diagnostics.

• Expandable Design: Includes extended terminals that allow for the easy addition of another combiner box, enabling the system to scale as your power needs grow.

• Rugged All-Weather Housing: Encased in a durable, powder-coated sheet metal enclosure with an IP22 rating, protecting internal components from dust and minor splashes.

Technical Specifications

What’s in the Box?

1. Renogy 500A Combiner Box (Communication Version)

2. Voltage Sensor (for non-ANL fuse systems)

3. Insulating Sleeves (×4)

4. Self-tapping Mounting Screws (×4)

5. User Manual
