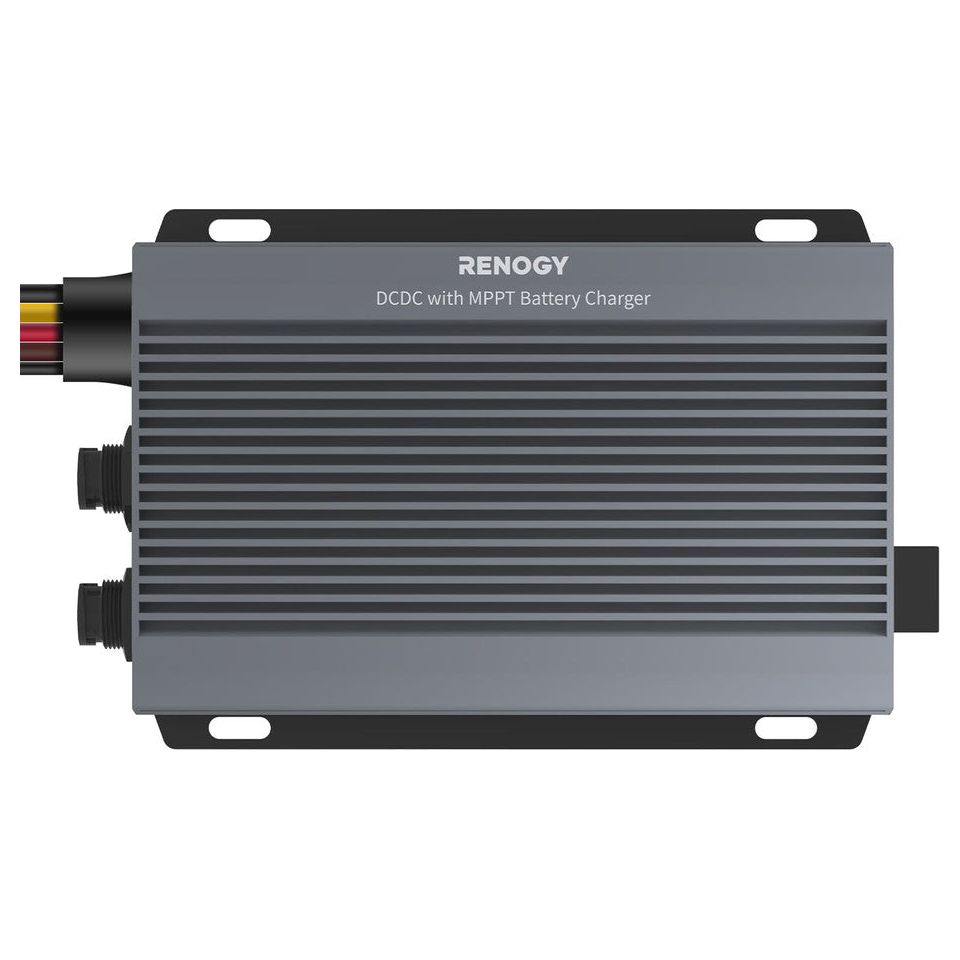

Intelligently combining vehicle and solar power, this charger automatically adjusts modes based on sunlight intensity, ensuring optimal energy use at all times.
System Voltage: 12V/24V - 12V/24V
Solar Input Voltage: 50 VDC
Output Voltage: 9-32 VDC
Alternator Input: 9-32 VDC
Maximum Output Current Rating: 50A@12V；25A@24V
Output Power: 720W
Battery Types: AGM/SLD , GEL ,FLD ,LI,USER
Input Fuse Rating: 75A-100A
Output Fuse Rating: 75A-100A
Charging Efficiency: 0.97
Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium)；0mV / ℃ / 2V; no compensation (Lithium)
Idle Power Consumption: ＜100mA
Terminal Range: 8AWG-4AWG
Communication Protocol: Modbus ; RV-C
Operating Temperature Range: '-31℉ to 176℉/-35℃ to 80℃
Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃
Humidity: 0%-95%, No Condensation
Maximum Operating Altitude: 3500m
Enclosure Rating: IP67
Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm
Weight: 4.10 lb / 1.86 kg
Certification: CE;RoHS;FCC Part 15 class B
Warranty: 2-year material warranty
Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection
