Renogy's N-Type Bifacial Solar Panel offers a 10% higher bifaciality rate and a 20W power output boost compared to conventional p-PERC panels of the same design.
25% cell efficiency. 20W more power from the front side.
80% bifaciality factor. 14% more power from the rear side.
-0.29%/℃ low temp coefficient. Better Performance in High Temps.
16BB for higher conversion efficiency & longer lifespan.
IP68 protection. 10-year workmanship warranty, 25-year 80% output warranty.
The Specs

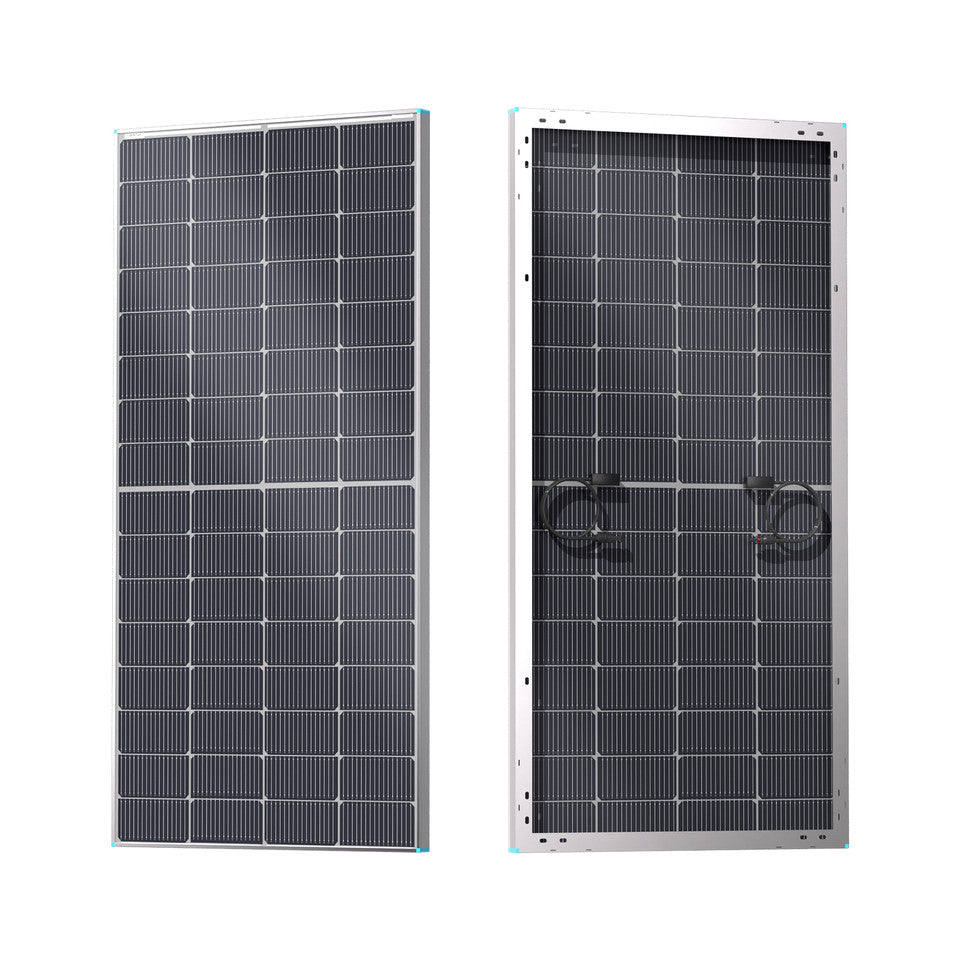

250 Watt TOPcon Solar Panel
Module Performance
Max Power at STC: 250W
Module Efficiency: 21.2%
Open Circuit Voltage: 22.35V
Short Circuit Current: 13.49A
Optimum Operating Voltage: 19.52V
Optimum Operating Current: 12.81A
Maximum System Voltage: 1000VDC
Maximum Series Fuse Rating: 30A
Operating Temperature: -40°F~194°F / -40℃~90℃
Dimensions: 1547x763x30mm/60.9x30.0x1.2in
Weight: 12.4kg/27.3lbs
Warranty
Material and workmanship warranty: 10 Years
Performance Warranty: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
Certifications
Manufactured in a Certified ISO 9001 Facility: YES
