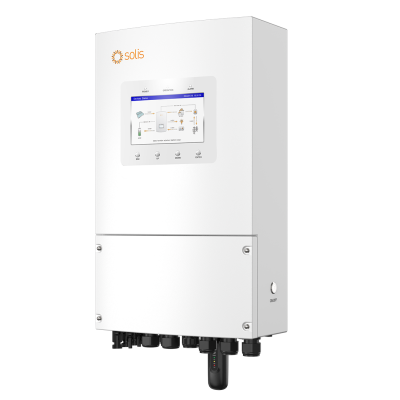

Solis S6 5kW Single Phase Hybrid Inverter – 48V LV Solar Inverter with Dual MPPT

Solis S6 5kW Single Phase Hybrid Inverter – 48V LV Solar Inverter with Dual MPPT

£875.00 GBP
£875.00 GBP
Sale Sold out
View full details

The Solis S6 5kW Single Phase Hybrid Inverter with DC Switch (2 MPPT) for LV Batteries is a flexible residential energy storage inverter. It manages high-capacity solar generation, home battery storage, and grid interaction to deliver clean self-consumption and seamless backup power during outages.

Key Features

  • High-Throughput Battery Port: Supports up to 135A continuous charge and discharge current, allowing maximum power utilization to quickly charge and discharge 48V battery banks.

  • UPS-Level Automatic Backup: Features an integrated backup terminal with an ultra-fast switchover time of under 10 milliseconds to keep critical home circuits powered without interruption during blackouts.

  • Dual MPPT Tracking: Built with 2 independent MPPTs accepting up to 16A per string, making it fully compatible with high-efficiency modern solar panels and complex roof layouts.

  • Peak Shaving & Flexible TOU Modes: Supports customizable Time-of-Use (TOU) charging schedules, self-consumption priority, and peak shaving strategies to lower electricity bills.

  • Generator Ready: Integrates smoothly with backup diesel or petrol generators with automatic start/stop signals to maintain off-grid resilience during bad weather.

  • Wide Low-Voltage Battery Compatibility: Native communication over CAN/RS485 with top 48V low-voltage (LV) lithium battery brands (including Pylontech, Dyness, and LG Chem).

  • Enhanced Safety Suite: Equipped with a built-in DC isolator switch, DC reverse-polarity protection, integrated AFCI (Arc-Fault Circuit Interrupter), and IP66 weatherproofing.

Technical Specifications

Specification Details
Rated Output Power (Grid/Backup) 5.0 kW (5.5 kVA Max Apparent Power)
Max Charge/Discharge Power 5.0 kW / 5.0 kW
Max Charge/Discharge Current 135 A
Battery Nominal Voltage 48 V (Low Voltage Range: 40V – 60V)
Recommended Max PV Input Power 7.5 kW
Max DC Input Voltage 600 V
MPPT Operating Voltage Range 90 V – 520 V (Startup Voltage: 120 V)
No. of MPPTs / Max Strings per MPPT 2 / 1
Max Input Current per MPPT 16 A / 16 A
Switch-over Time (UPS Mode) < 10 ms
Peak System Efficiency 97.5%
Ingress Protection Rating IP66
Dimensions (W×H×D) 410 × 510 × 190 mm
Net Weight 20.5 kg

Warranty & Protection

  • Manufacturer Warranty: Comes with a standard 5-year full manufacturer warranty (extendable to 10 years upon registration).

  • Grid & System Protection: Features anti-islanding protection, over-current/short-circuit protection, insulation monitoring, and integrated surge protection.

What’s in the Box?

  1. Solis S6 5kW Single Phase Hybrid Inverter (S6-EH1P5K-L-EU) with DC Switch

  2. Wall-Mounting Bracket & Mounting Hardware

  3. MC4 PV Connectors

  4. Pre-assembled Battery & Meter Communication Cables

  5. Wi-Fi / Bluetooth Data Logging Dongle

  6. User Setup Manual & Installation Guide
